Rear Suspension

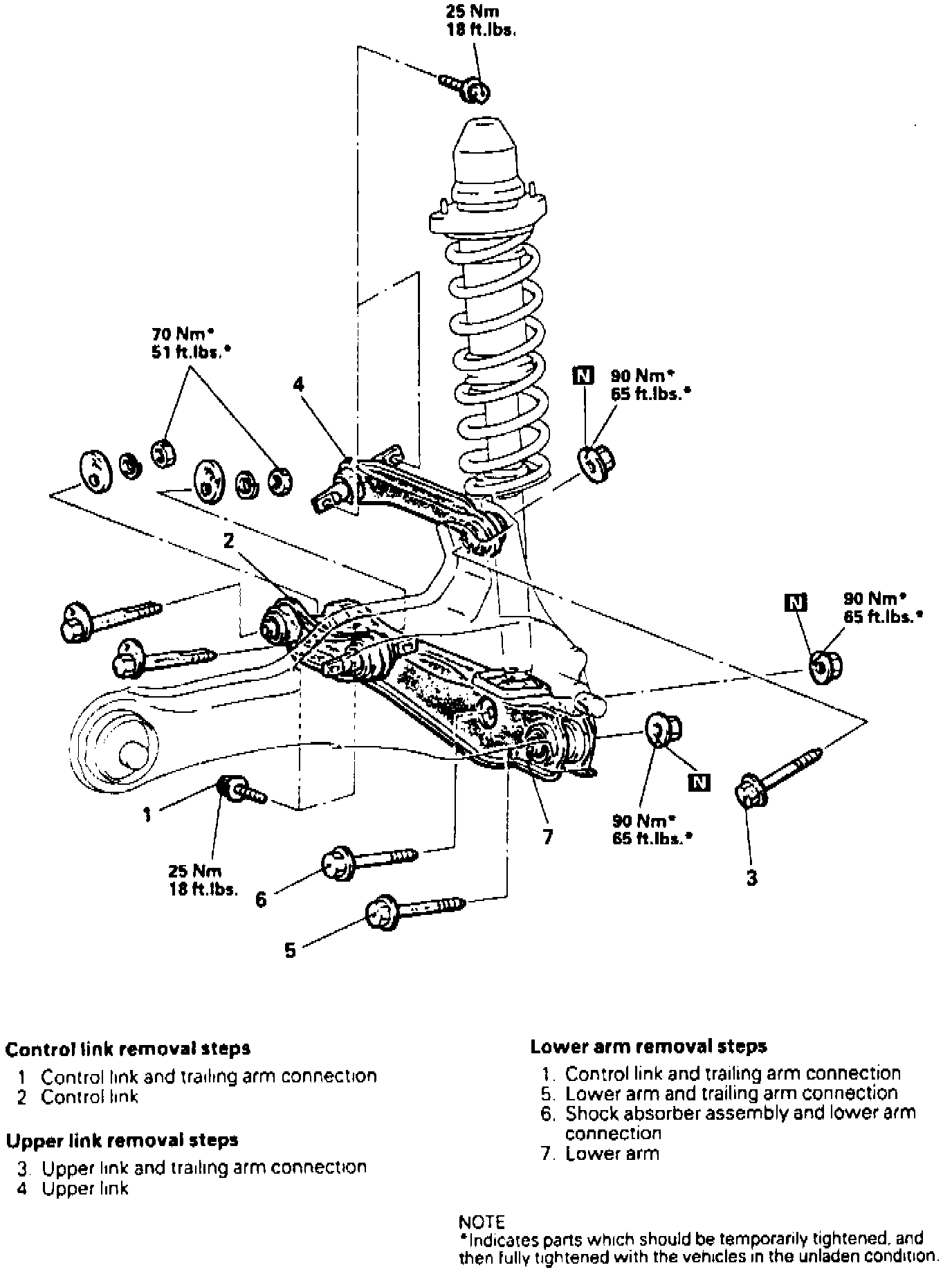

Fig. 8 Control Arm Replacement:

1. Remove control arms in numbered sequence shown, Fig. 8. Scribe mating marks on toe-in or camber adjustment bolts prior to removing control link and lower arm.
2. Reverse procedure to install. Inspect and adjust wheel alignment as necessary.
