Steering Column: Service and Repair

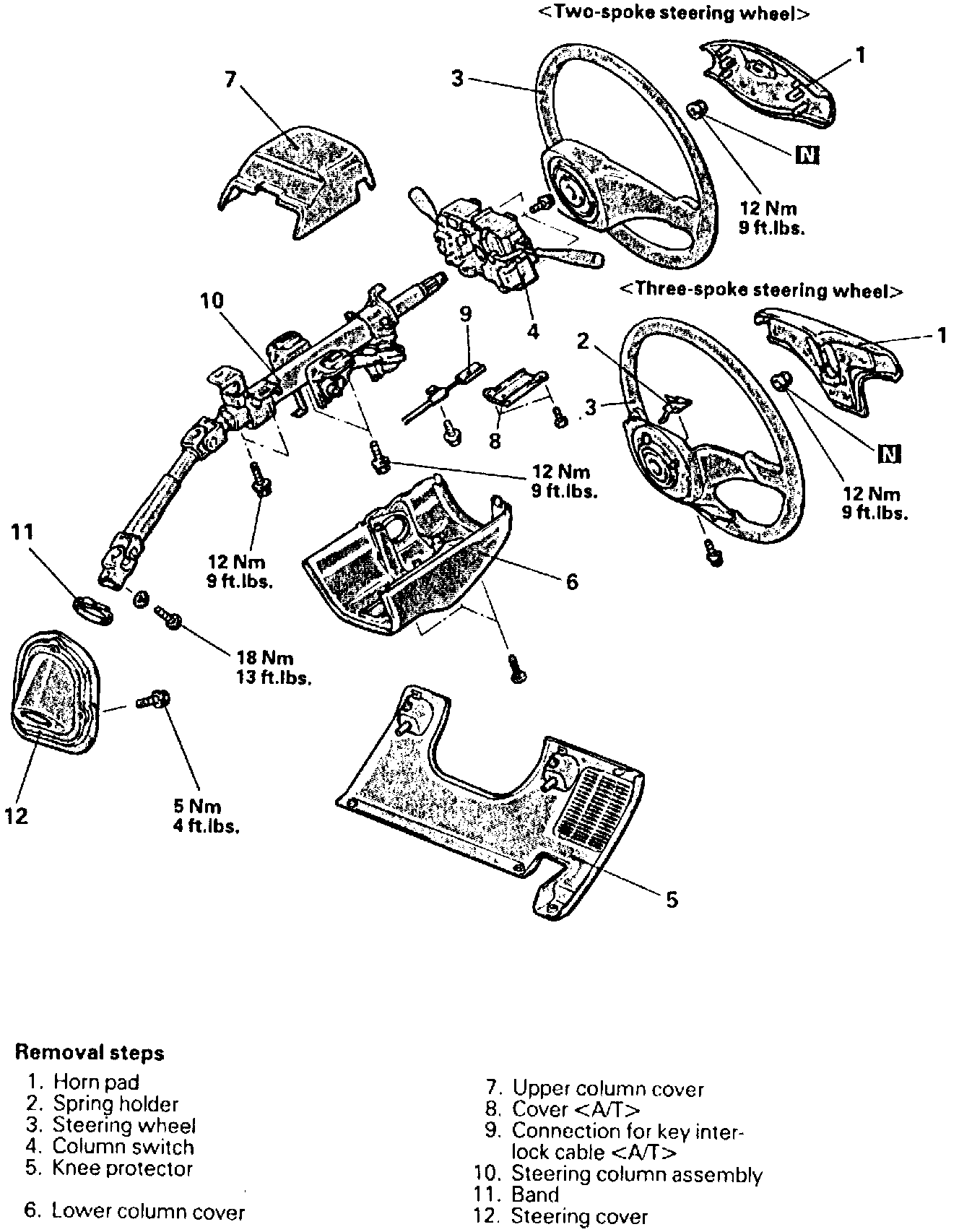

Fig. 7 Steering Column & Shaft Assembly:

Refer to Fig. 7 for steering column and steering shaft service. The steering column and shaft cannot be disassembled. If column and shaft are found to be defective, they should be replaced as an assembly.
