Harness Locations

CONFIGURATION DIAGRAMS

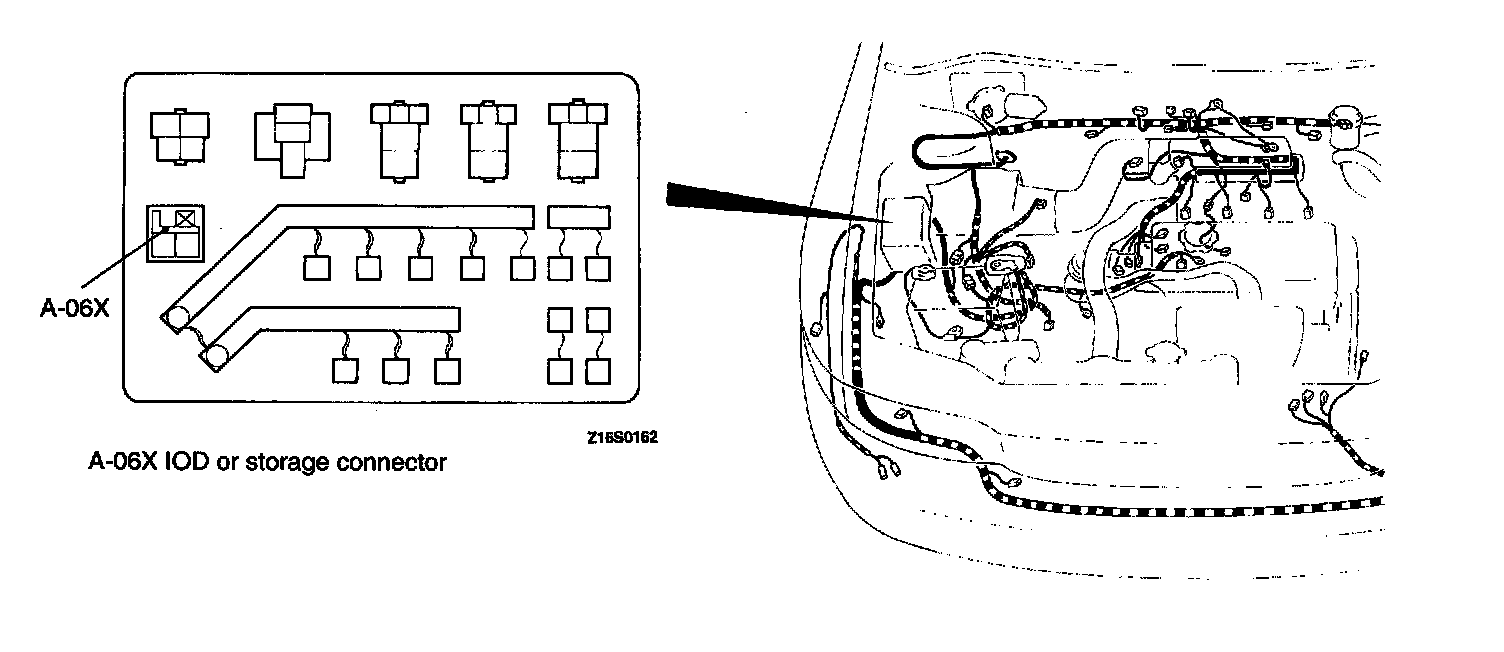

Engine Compartment:

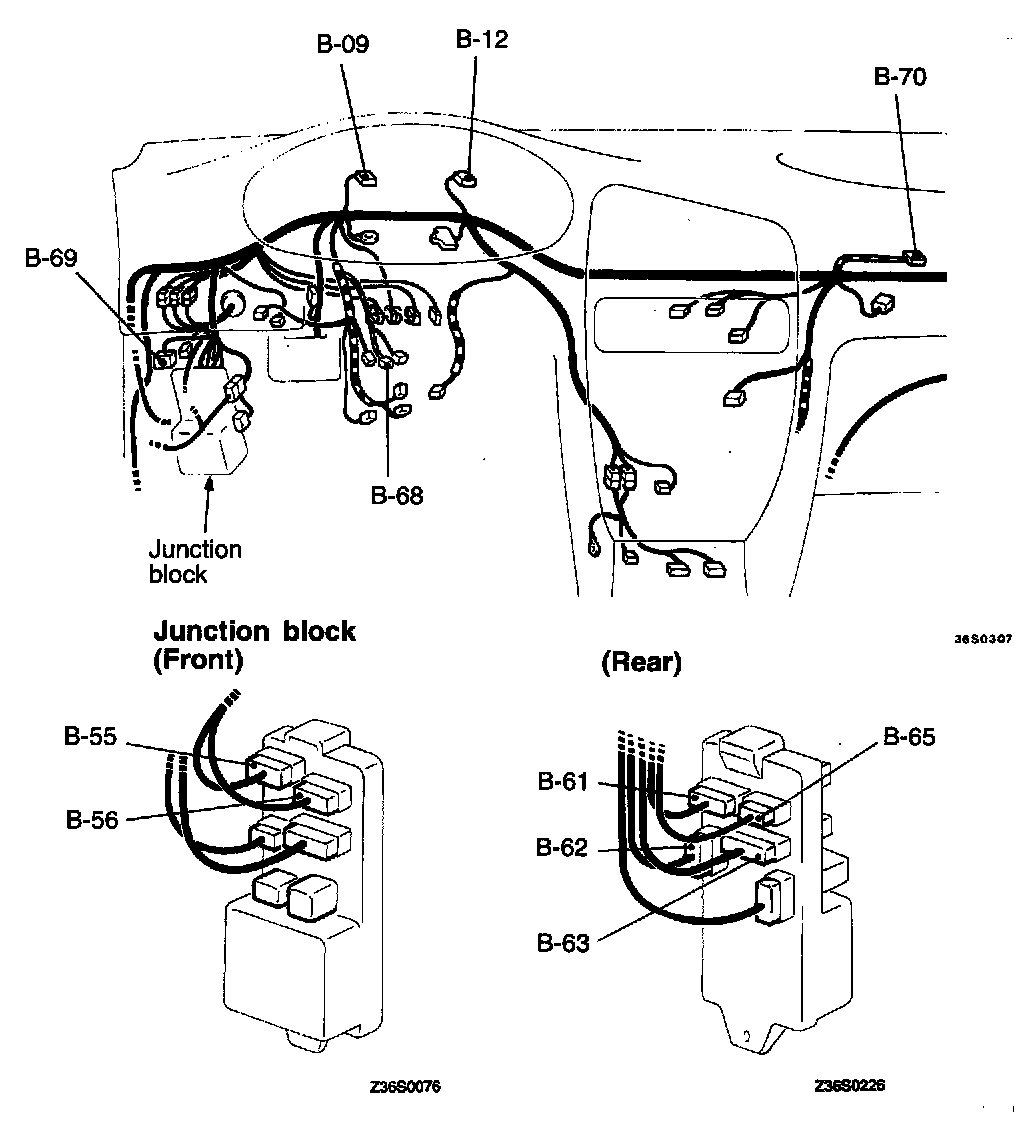

Dash panel:

B-09 Combination meter
B-12 Combination meter
B-68 Clock spring
B-69 Data link connector
B-70 Air bag module (squib)
B-55 Front wiring harness and junction block combination
B-56 Front wiring harness and junction block combination
B-61 Body wiring harness and junction block combination
B-62 Body wiring harness and junction block combination
B-63 Body wiring harness and junction block combination
B-65 Body wiring harness and junction block combination

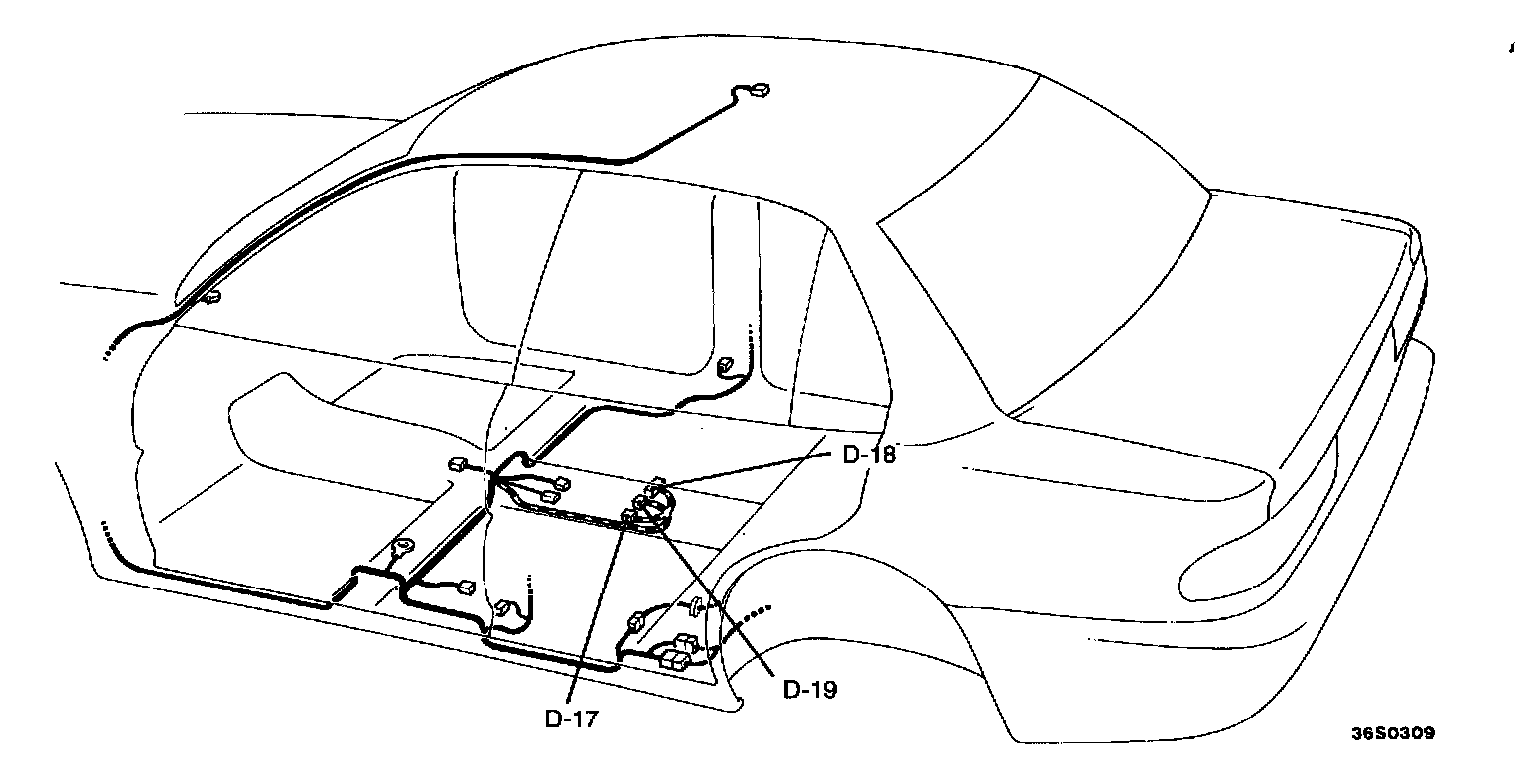

Interior Up to 1995 Models:

Up to 1995 models
D-17 2-pin red connector (SRS-ECU)
D-18 14-pin red connector (SRS-ECU)
D-19 2-pin green connector (SRS-ECU)

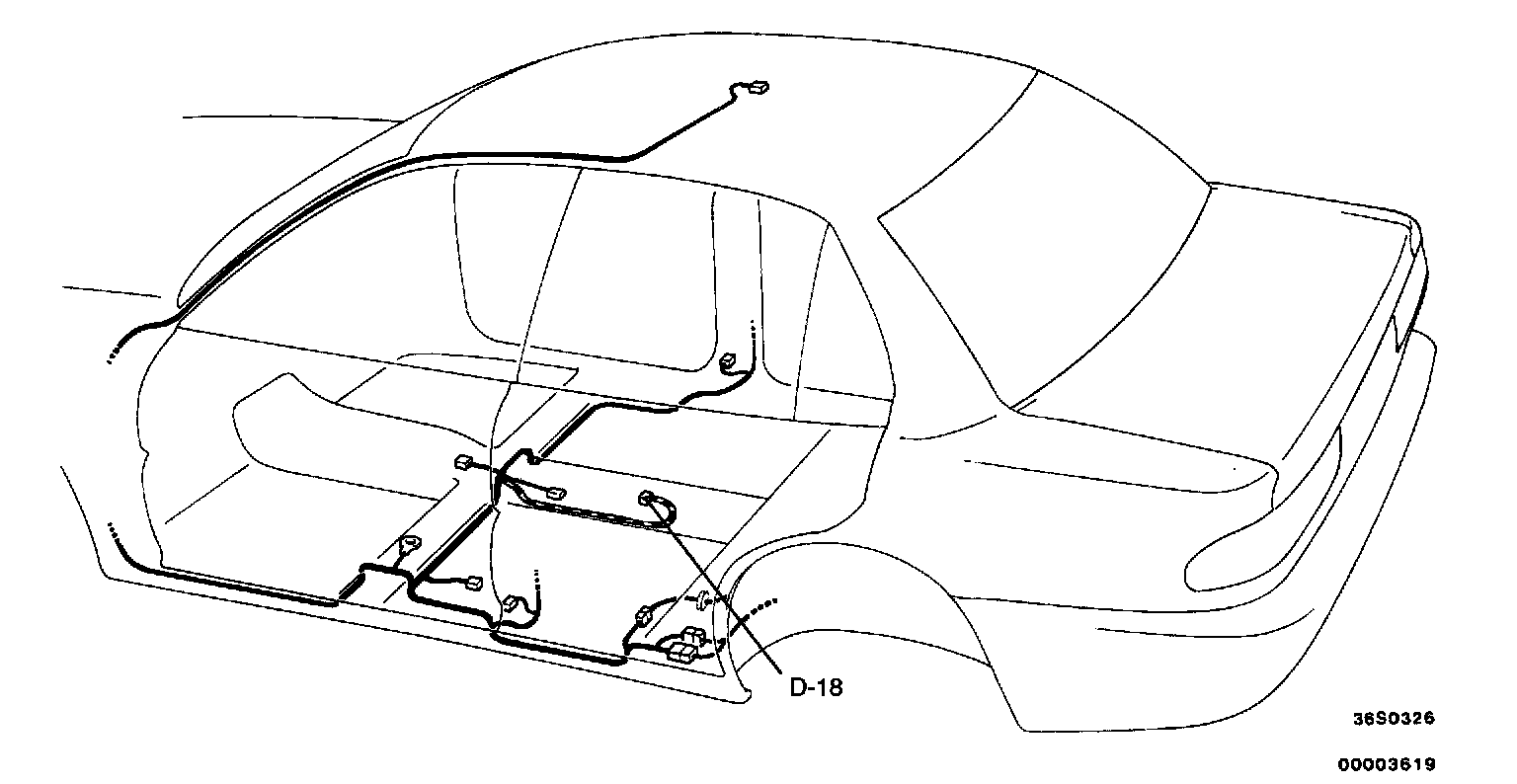

Interior From 1996 Models:

From 1996 models
D-18 21-pin connector (SRS-ECU)
