Home
>>
Mitsubishi
>>
1993
>>
Mirage L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Application and ID
>>
Dedicated Fuse (Engine Compartment)
>>
Fuses 1 Thru 5
Fuses 1 Thru 5

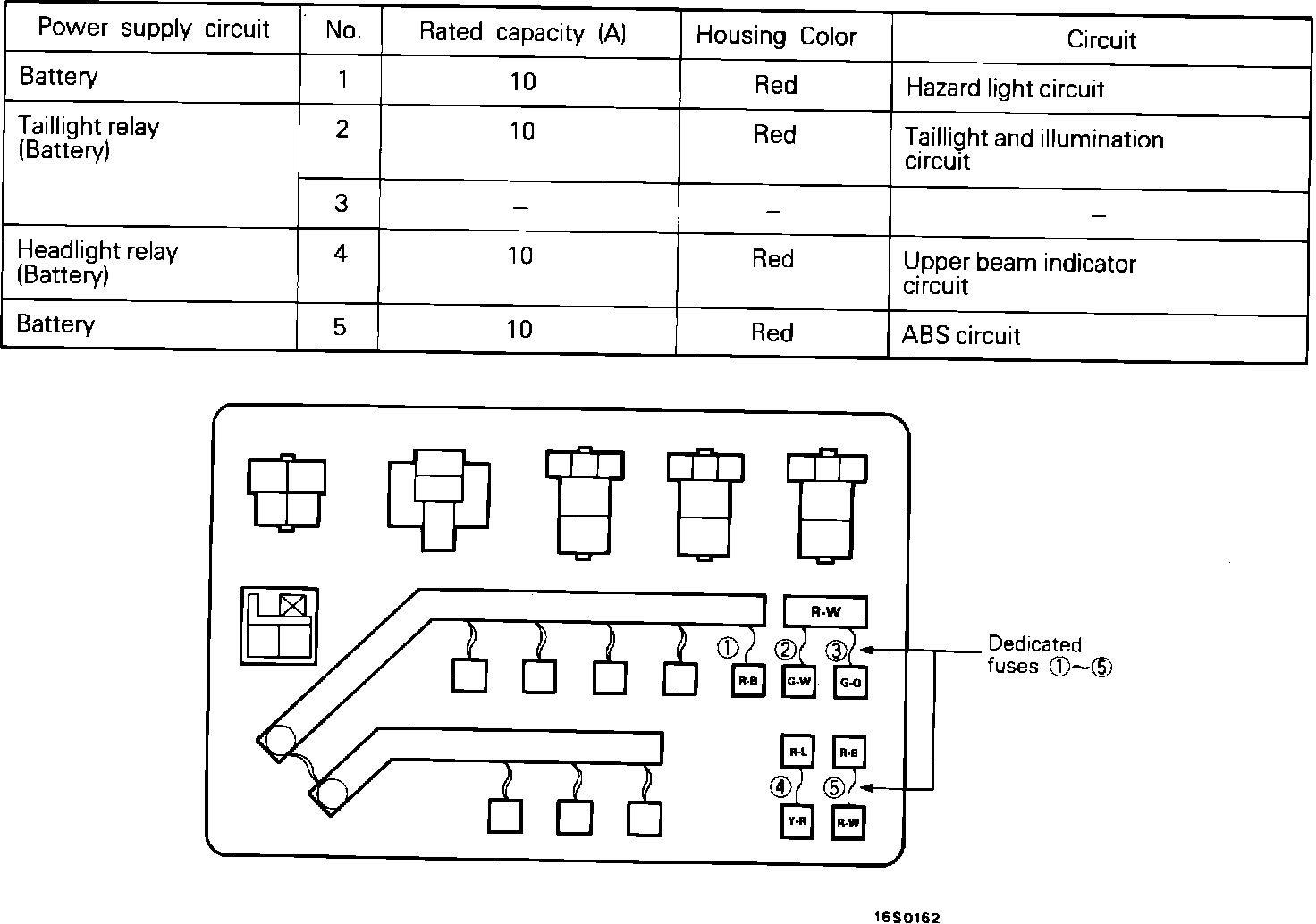

Centralized Junction: Dedicated Fuse (1 Thru 5, Relay Box In Engine Compartment):
