Mitsubishi
>>
1993
>>
Mirage L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>

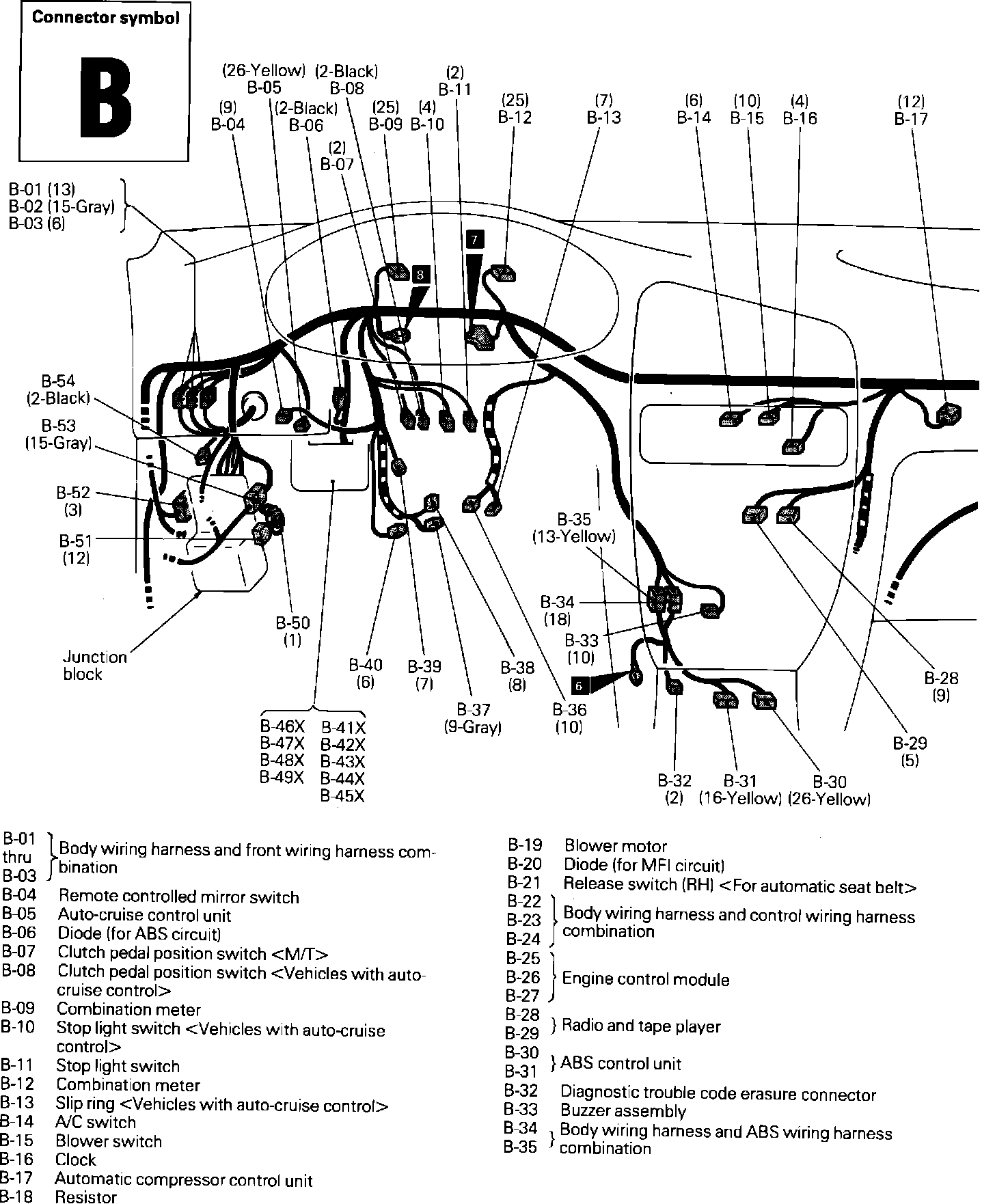

B Connectors - Instrument Panel Harness
B Connectors - Instrument Panel Harness

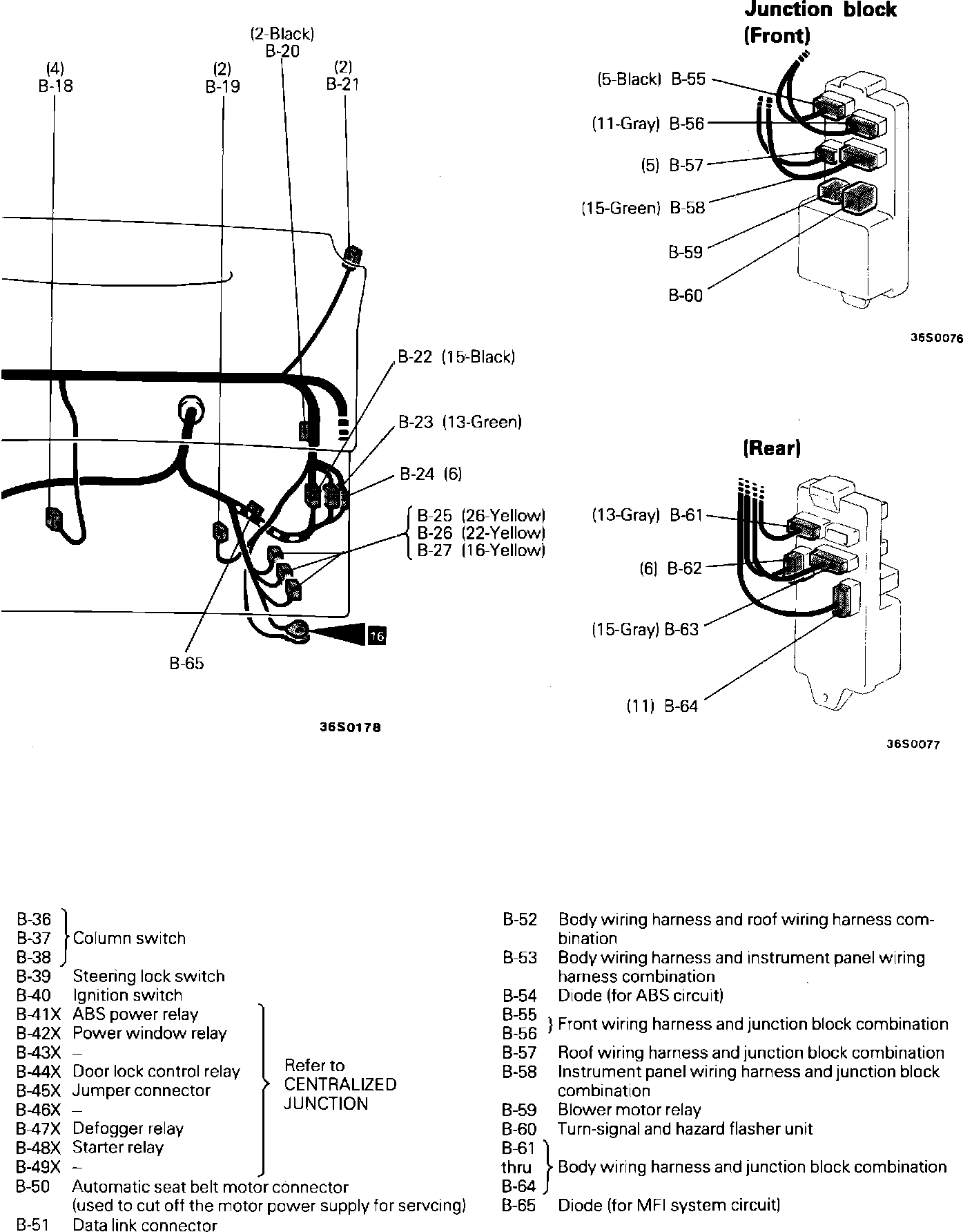

Connector Locations: Dash Panel:
Connector Locations: Dash Panel:
