Engine - Troubleshooting Chart Addition

NO.: TSB-96-11-012

DATE: November, 1996

MODEL: 1993-97 Mirage 1.5L

SUBJECT:
ADDITION OF NEW ITEM TO TROUBLESHOOTING
CHART (WORN OR DAMAGED VALVE GUIDES)
- SERVICE MANUAL REVISION

TSB Revision TSB-96-11-012

PURPOSE

This bulletin adds a new item to the engine troubleshooting chart for the 1993-97 Mirage equipped with the 1.5L engine. The additional information gives "worn or damaged valve guides" as another probable cause for engine compression that is too low. A diagnosis of worn or damaged valve guides would require replacement of the guides.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.

AFFECTED VEHICLES

1993-97 Mirage 1.5L

AFFECTED SERVICE MANUAL

1993-96 Mirage Service Manual, Volume 1, Page 11A-7
1997 Mirage Service Manual, Volume 1, Page 11A-6

SERVICE MANUAL REVISIONS

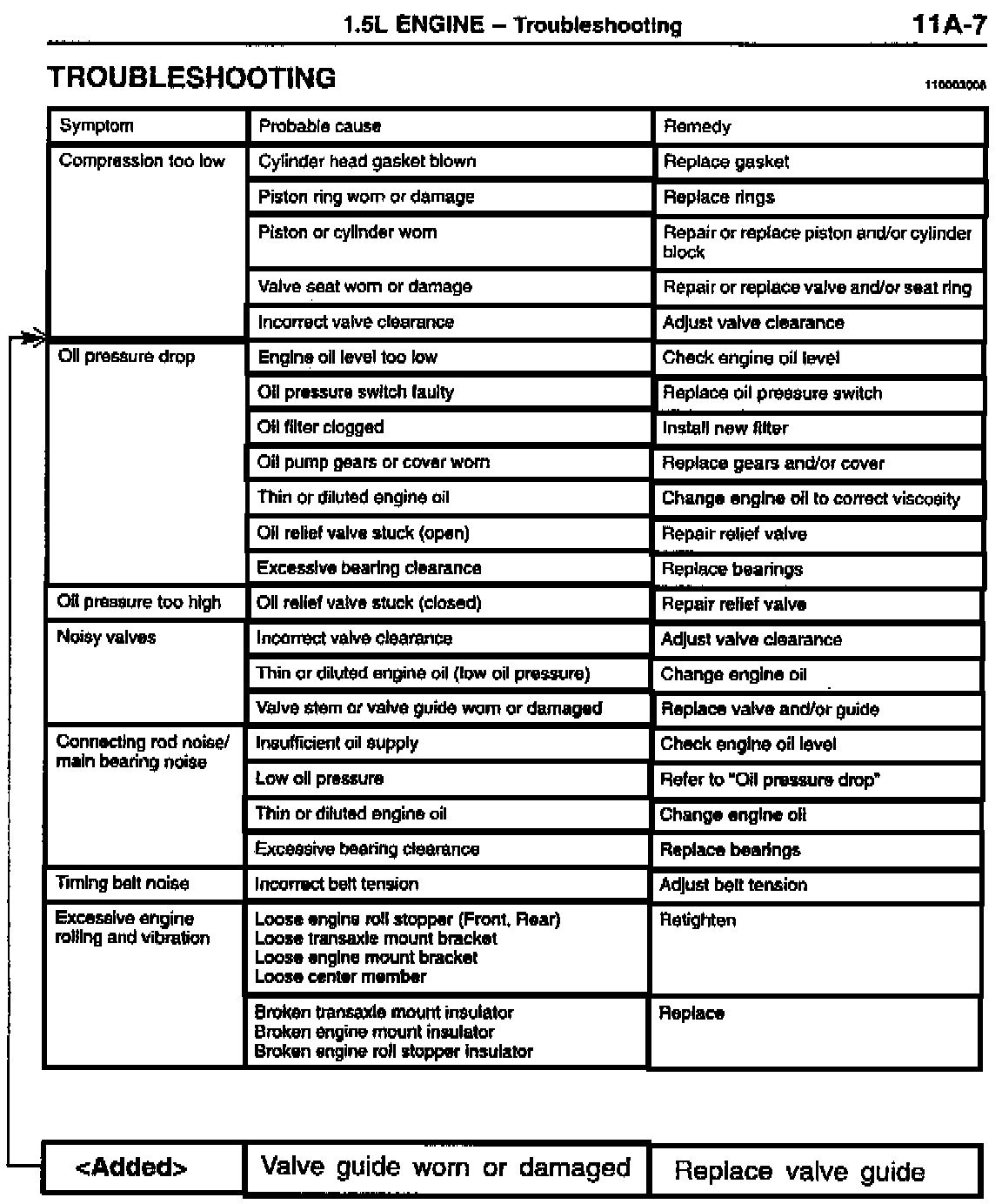

1993-96 Mirage Service Manual, Volume 1, Page 11A-7
Add the new troubleshooting information as shown.

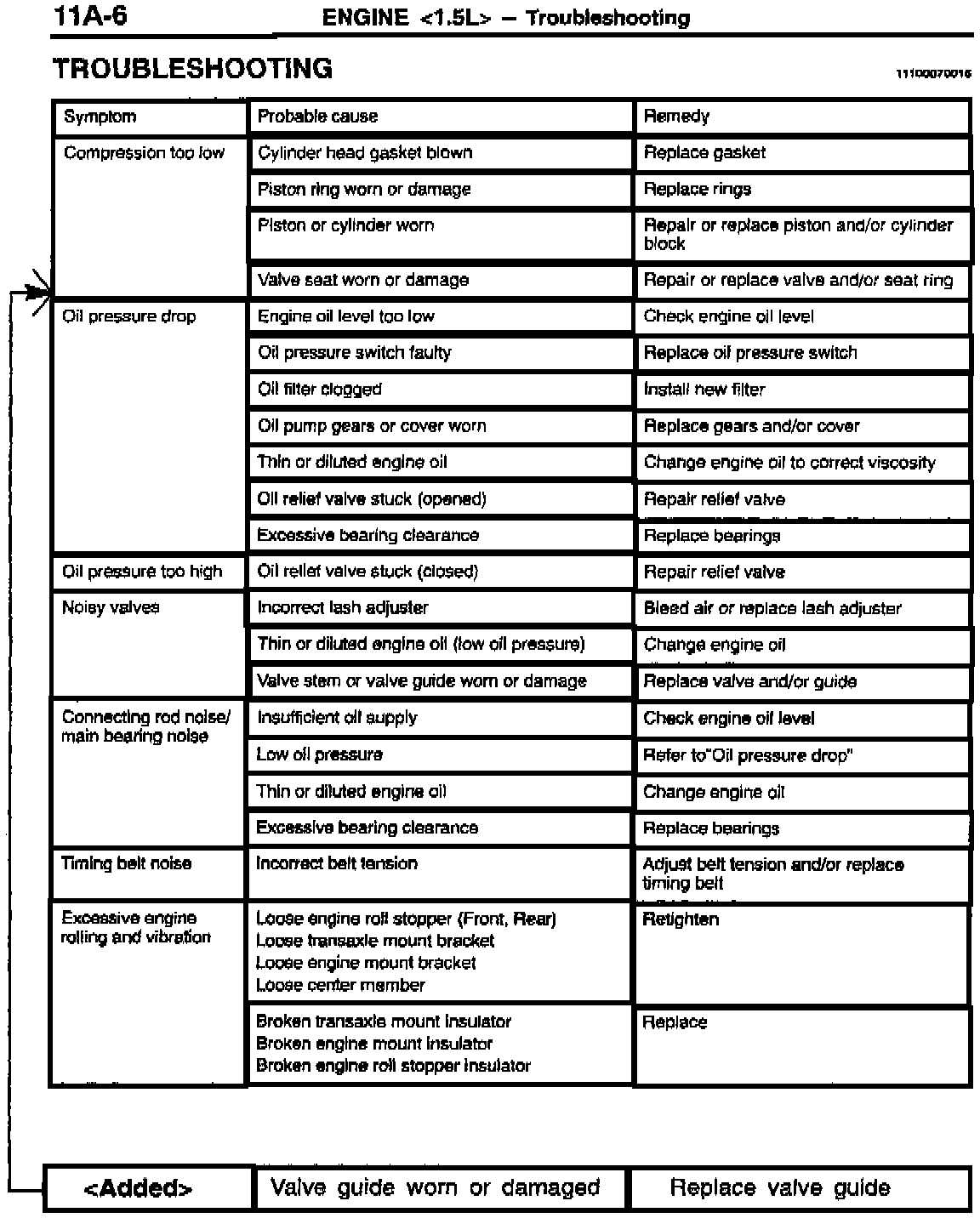

1997 Mirage Service Manual, Volume 1, Page 11A-6
Add the new troubleshooting information as shown.
