Home
>>
Mitsubishi
>>
1993
>>
Mirage L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
Transmission Control Systems

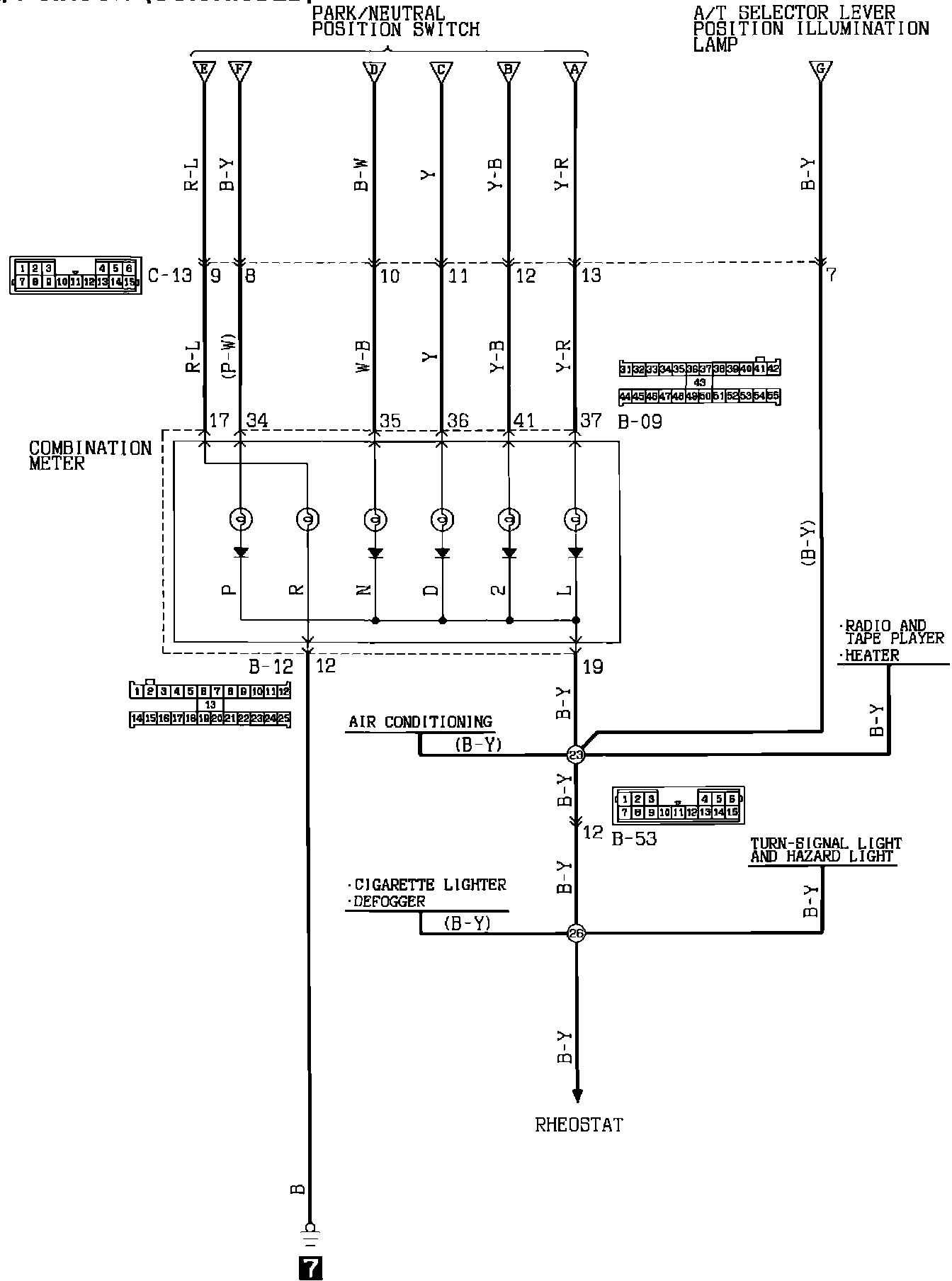

3 Speed Auto Transaxle Circuit:
3 Speed Auto Transaxle Circuit:
