Mirage L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Door Locks
Door Locks

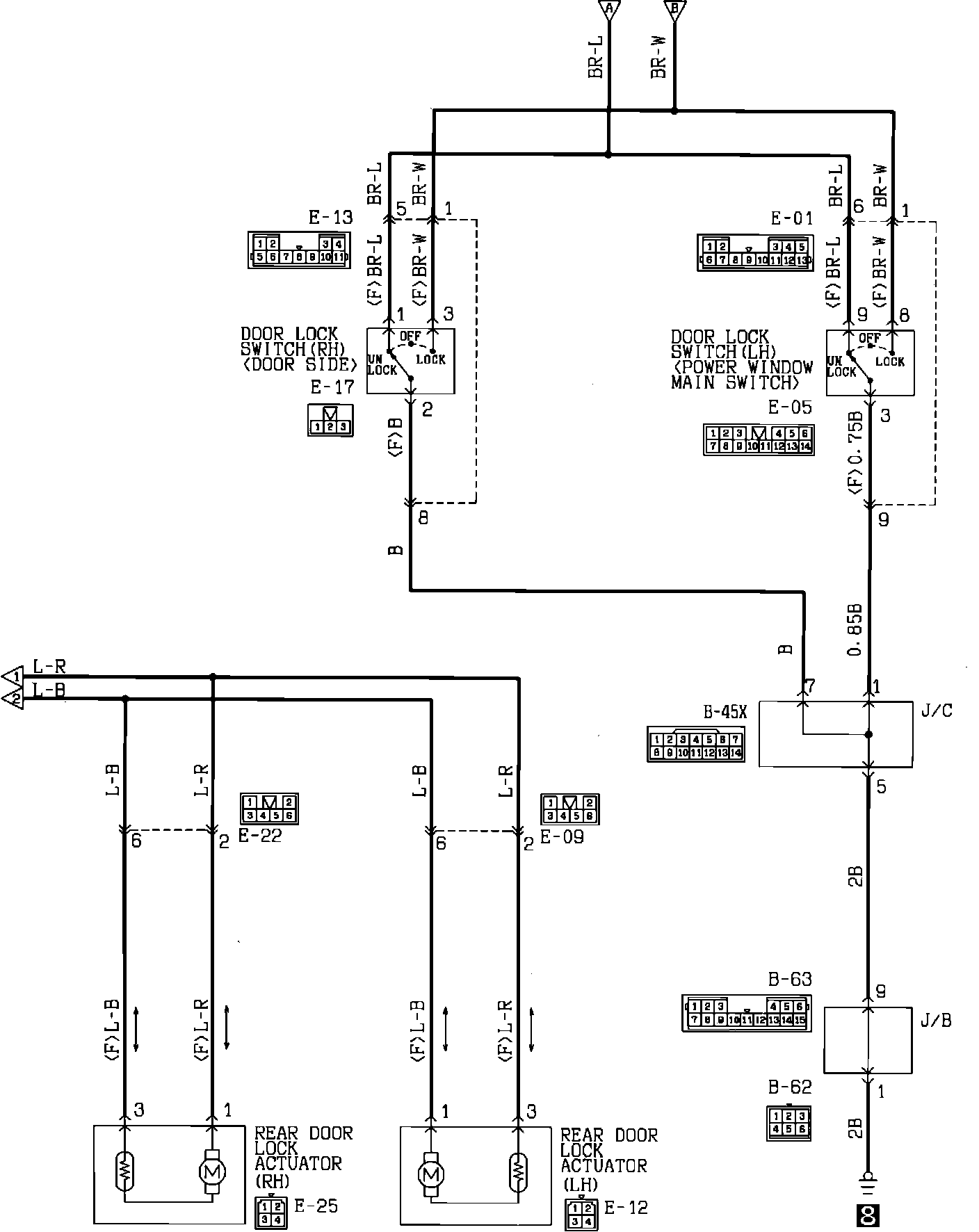

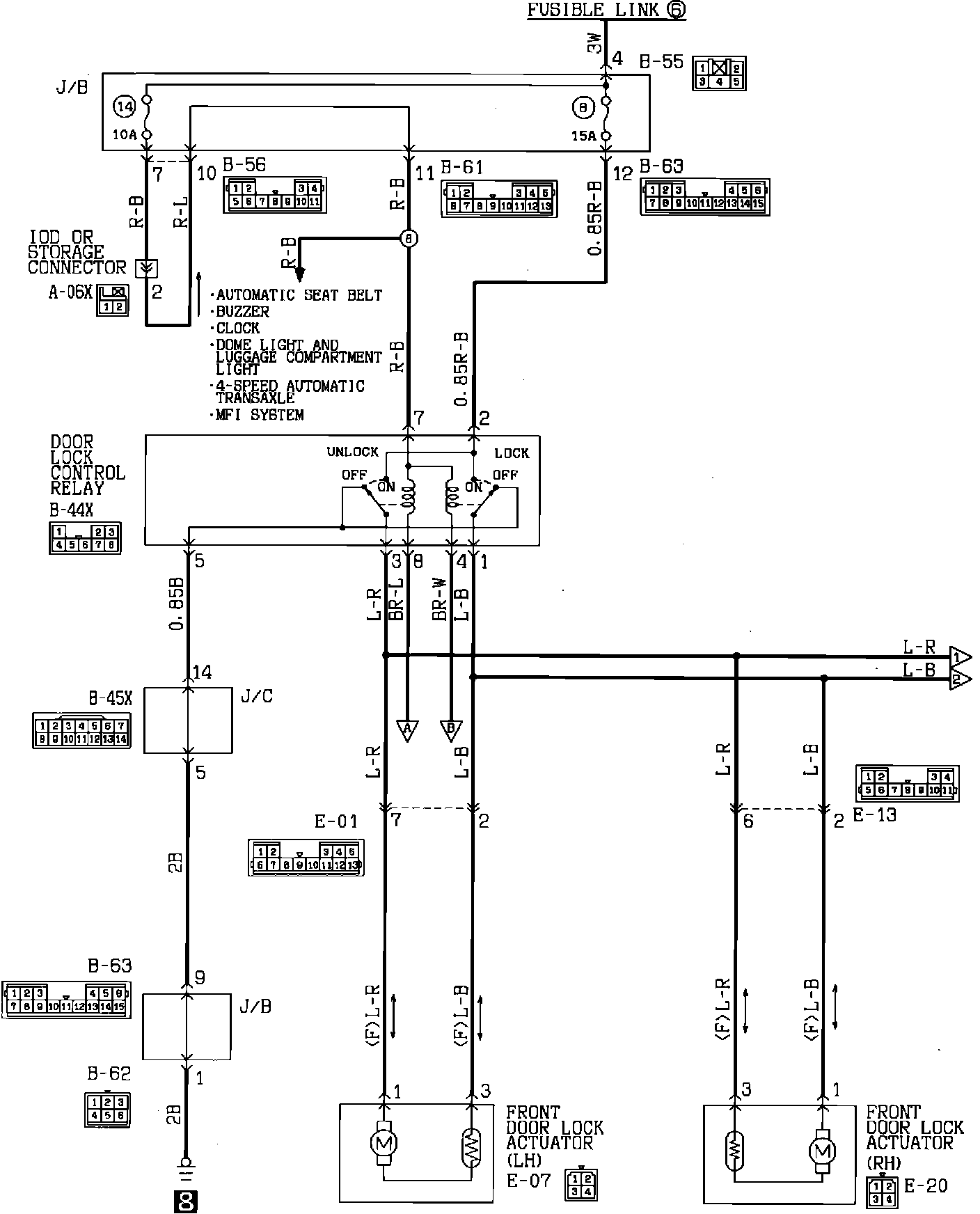

Power Door Locks (Central Locking, 4-Door):
Power Door Locks (Central Locking, 4-Door):
