Dashboard / Instrument Panel: Service and Repair

1. Disconnect battery ground cable.

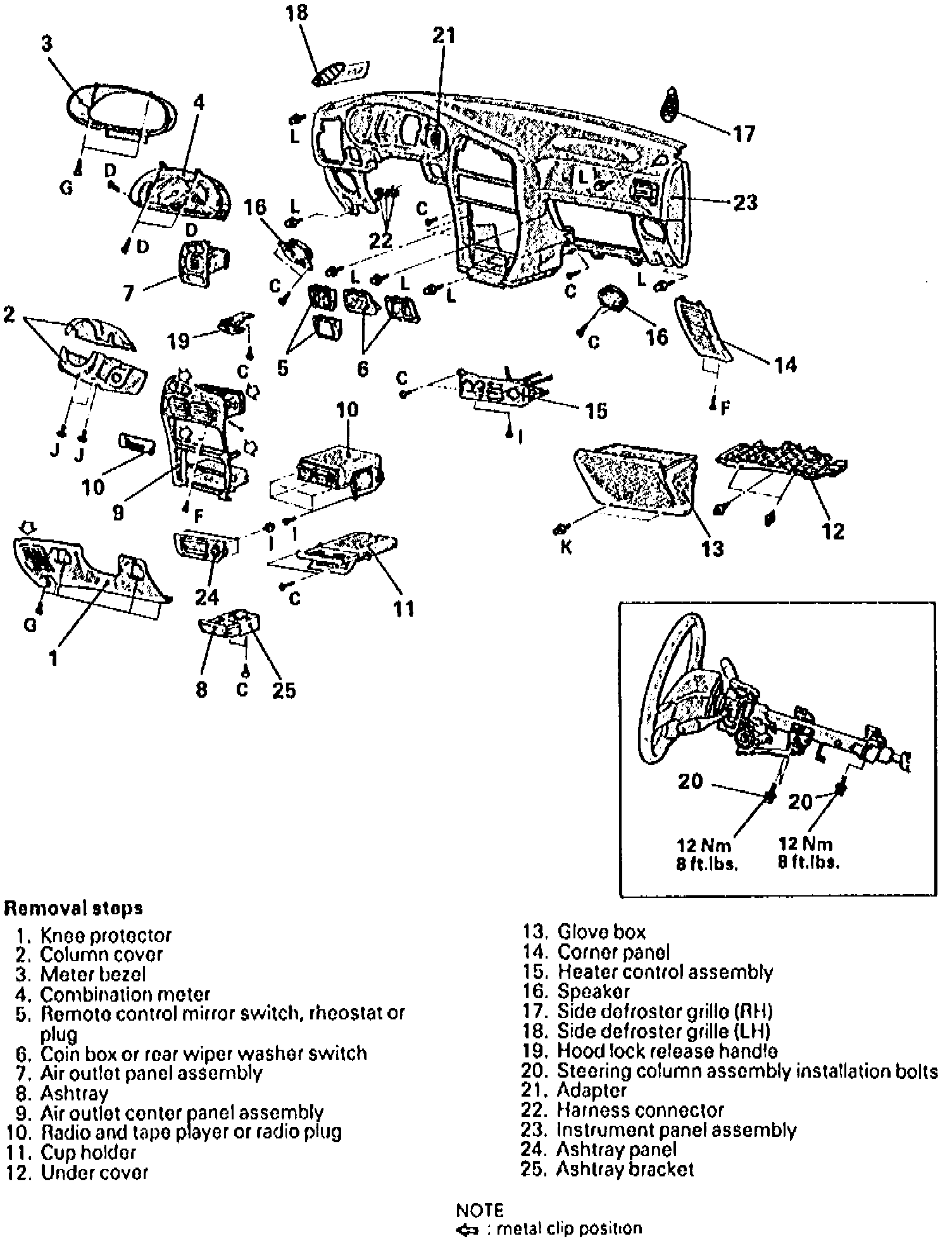

Fig. 1 Exploded View Of Instrument Panel:

2. Remove dash panel in numbered sequence as shown, Fig. 1, noting the following:
a. Remove cool air bypass lever cable of the air outlet center panel assembly at the heater unit side.
b. Remove the air outlet center panel assembly mounting screws, then the air outlet center panel assembly.
c. Remove the adapter lock from the instrument panel then pull speedometer cable slightly into the passenger compartment and remove the adapter.
3. Reverse procedure to install, noting the following:
a. Install air outlet center panel assembly to instrument panel.
b. Turn cool air bypass lever of air outlet center panel assembly fully upward.
c. Turn cool air bypass damper lever at the heater unit side fully downward and install the cool air bypass lever cable.
