Wiper Relay: Testing and Inspection

1. Remove wiper relay from engine compartment cowl.

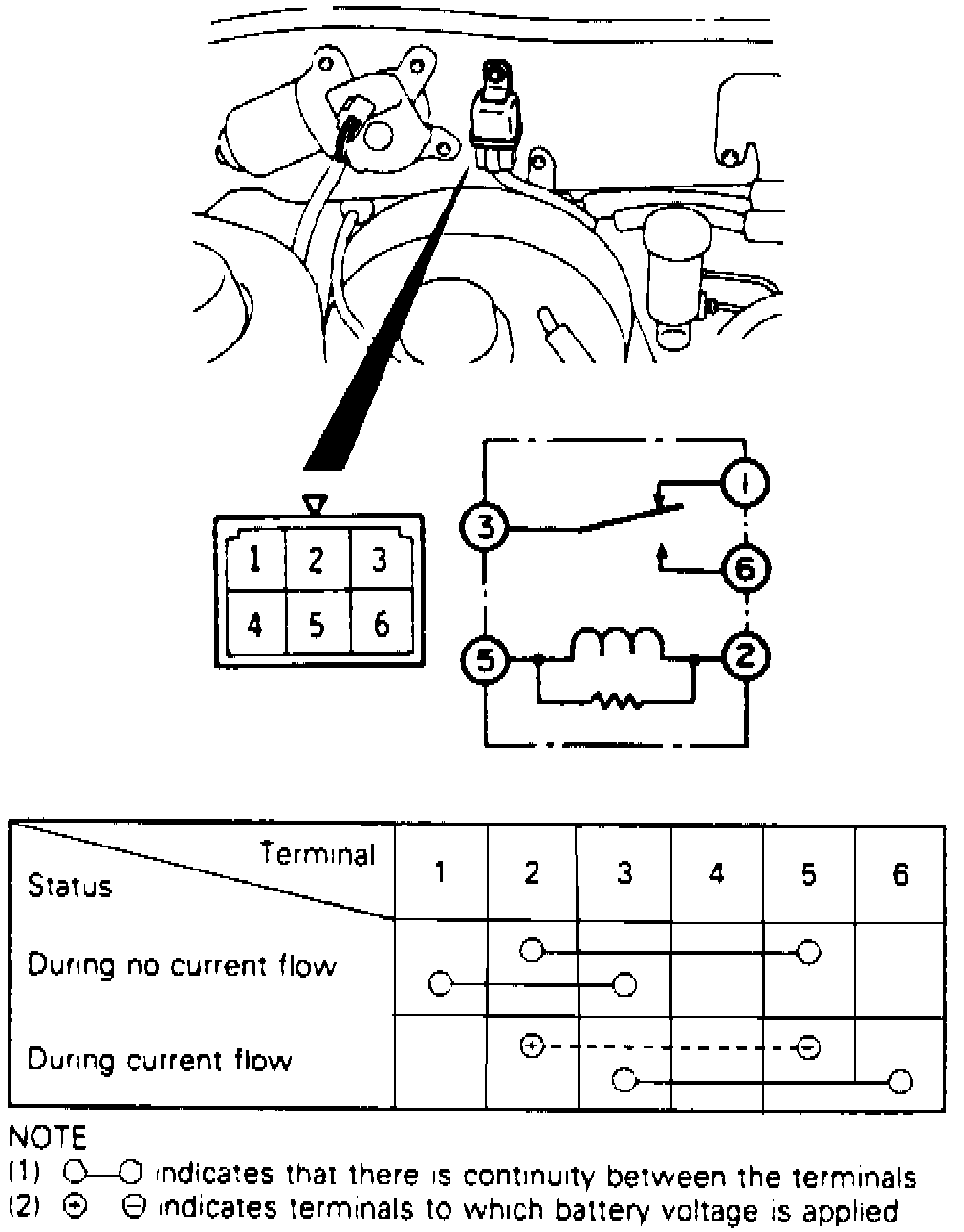

Fig. 27 Wiper Relay Continuity Chart:

2. Ensure continuity between terminals when battery voltage is applied between terminals 2 and 5 as shown, Fig. 27.
