Shift Cable: Service and Repair

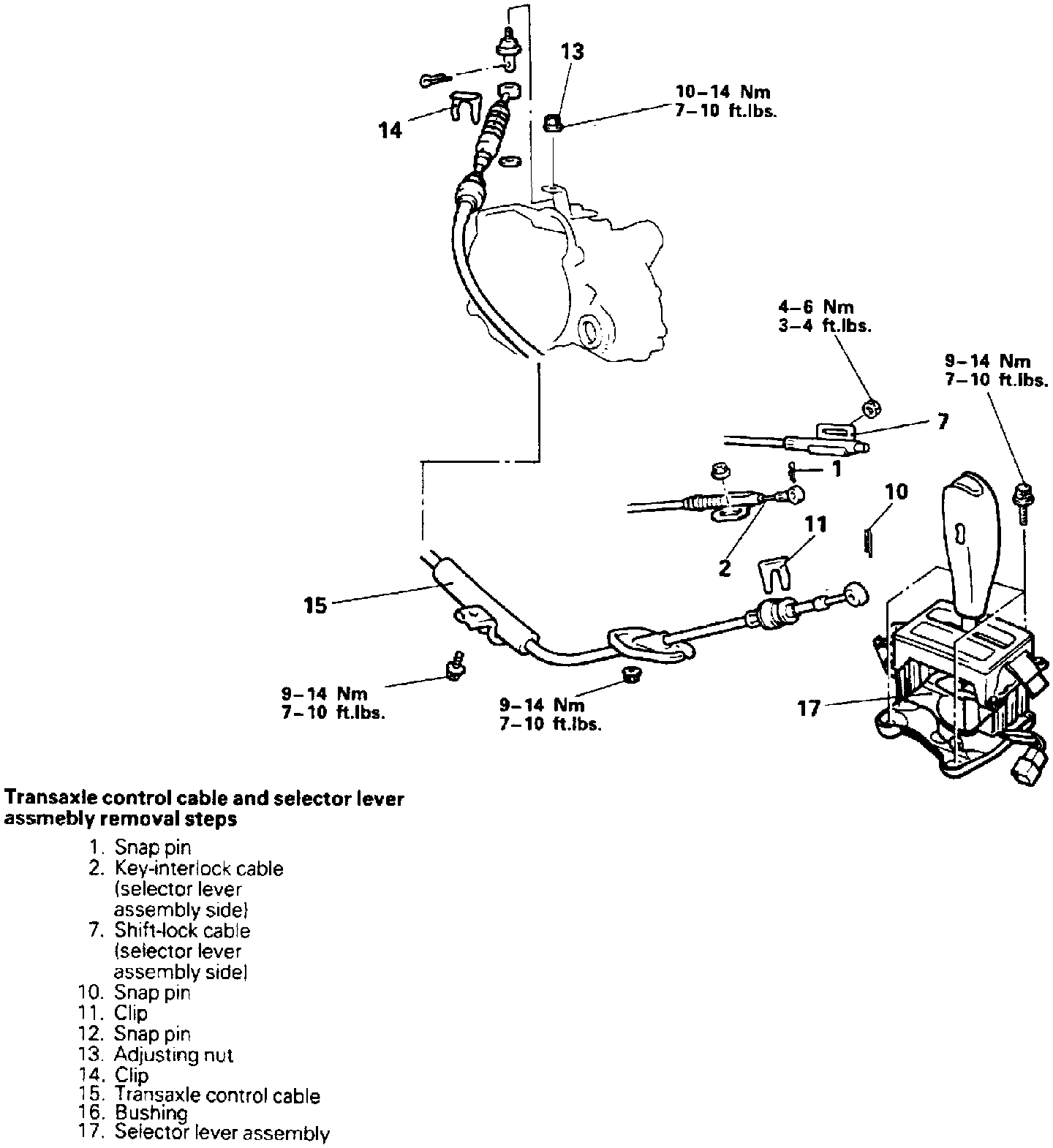

Fig. 31 Control Cable Replacement:

Refer to Figs. 31 when replacing transaxle control cables.
