Home >> Mitsubishi >> 1993 >> Galant L4-1997cc 2.0L SOHC 8 Valve >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Locations

Air Bag Systems: Locations

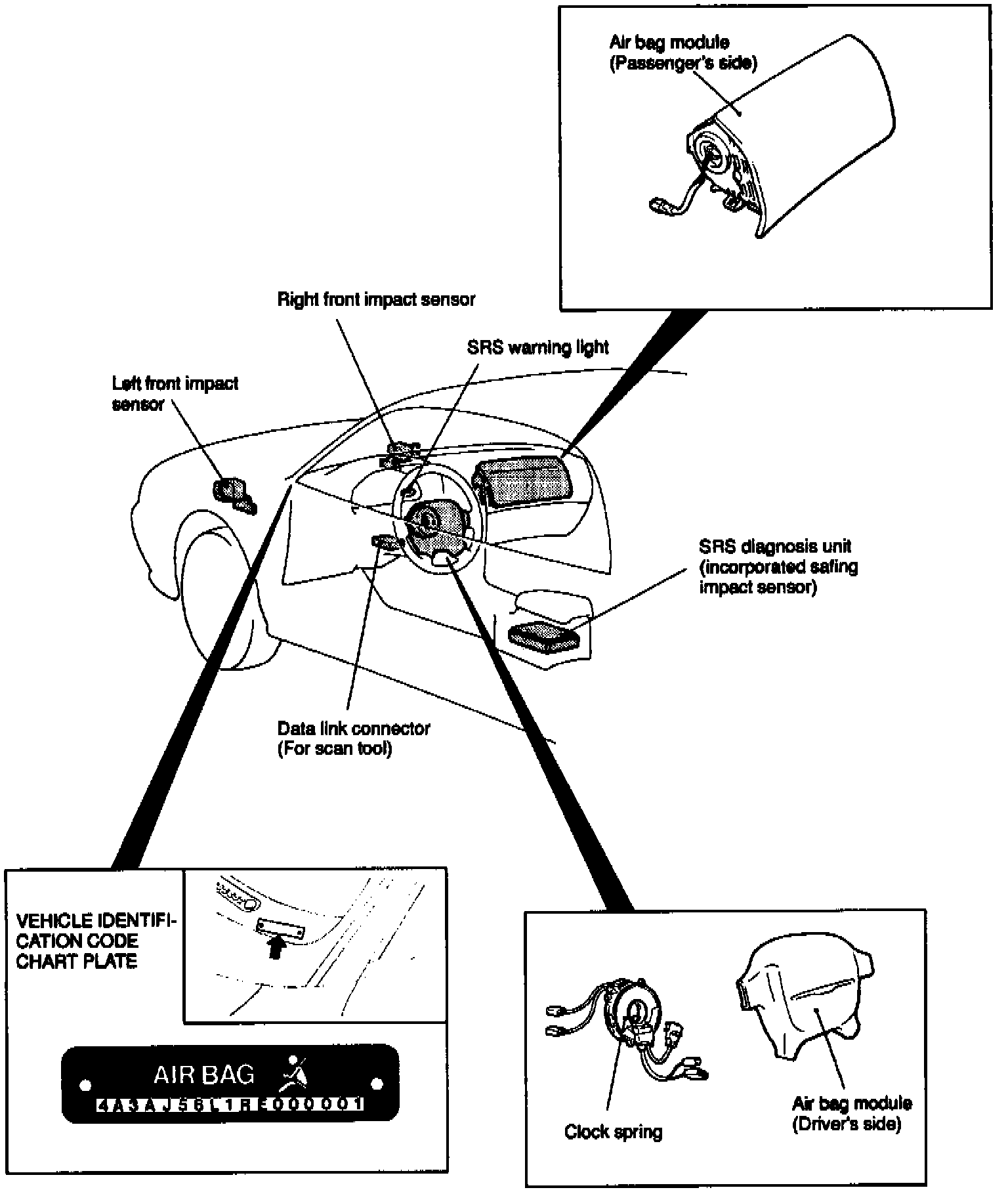

Fig. 12 SRS Component Locations:




Refer to Fig. 12 for SRS component locations.
