Electrical Diagrams

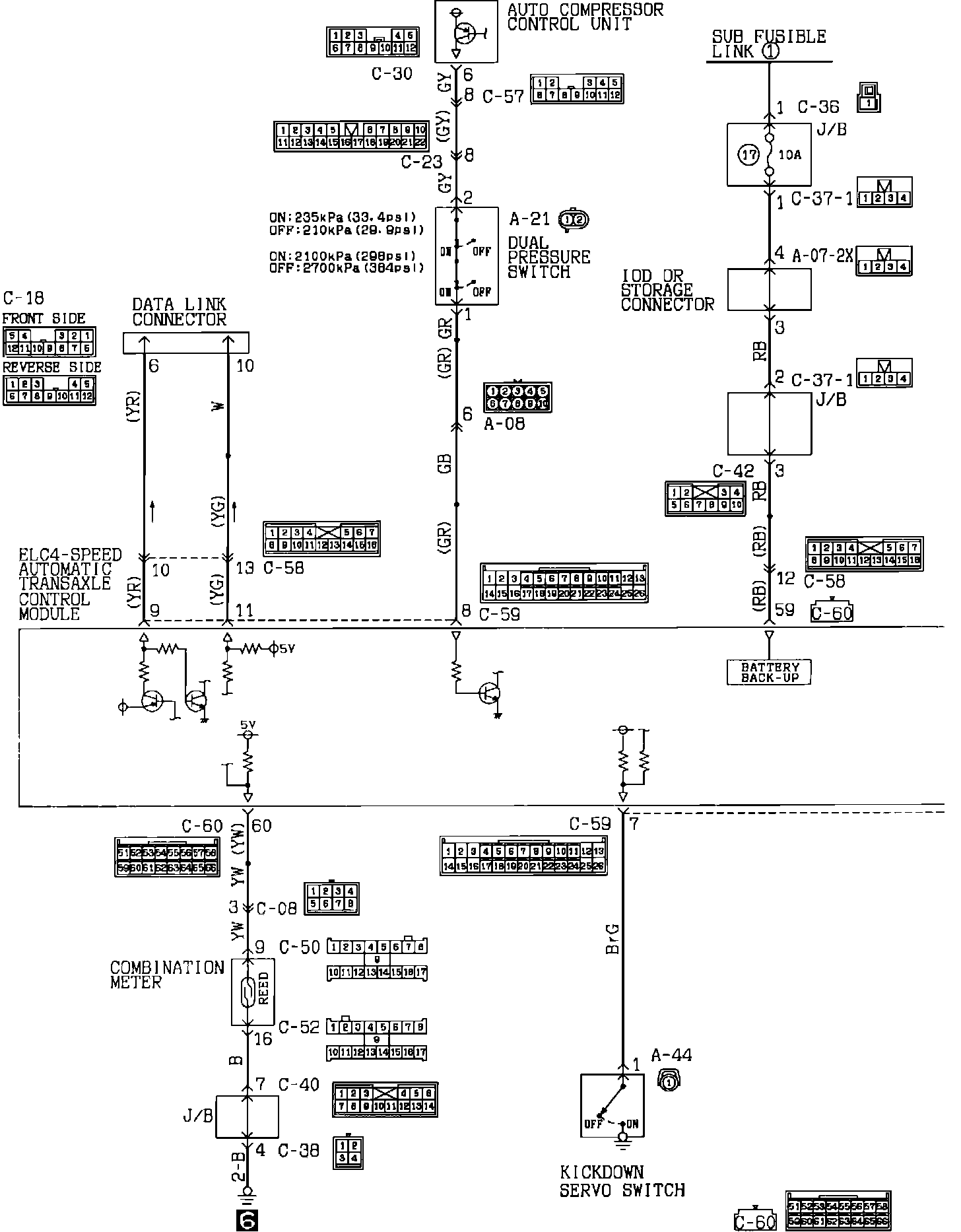

Automatic Transaxle (Electronically Controlled 4-Speed):

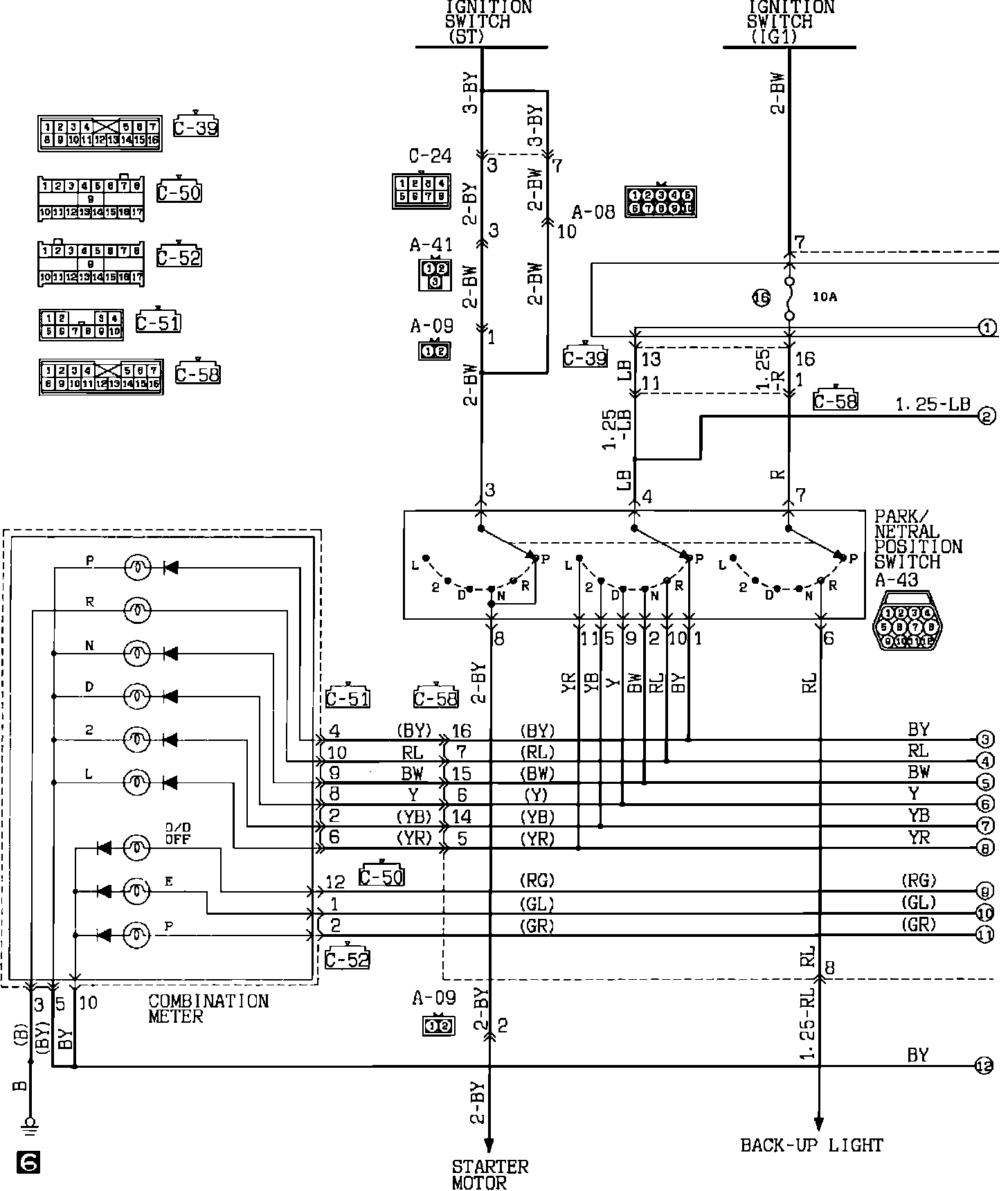

Automatic Transaxle (Electronically Controlled 4-Speed):

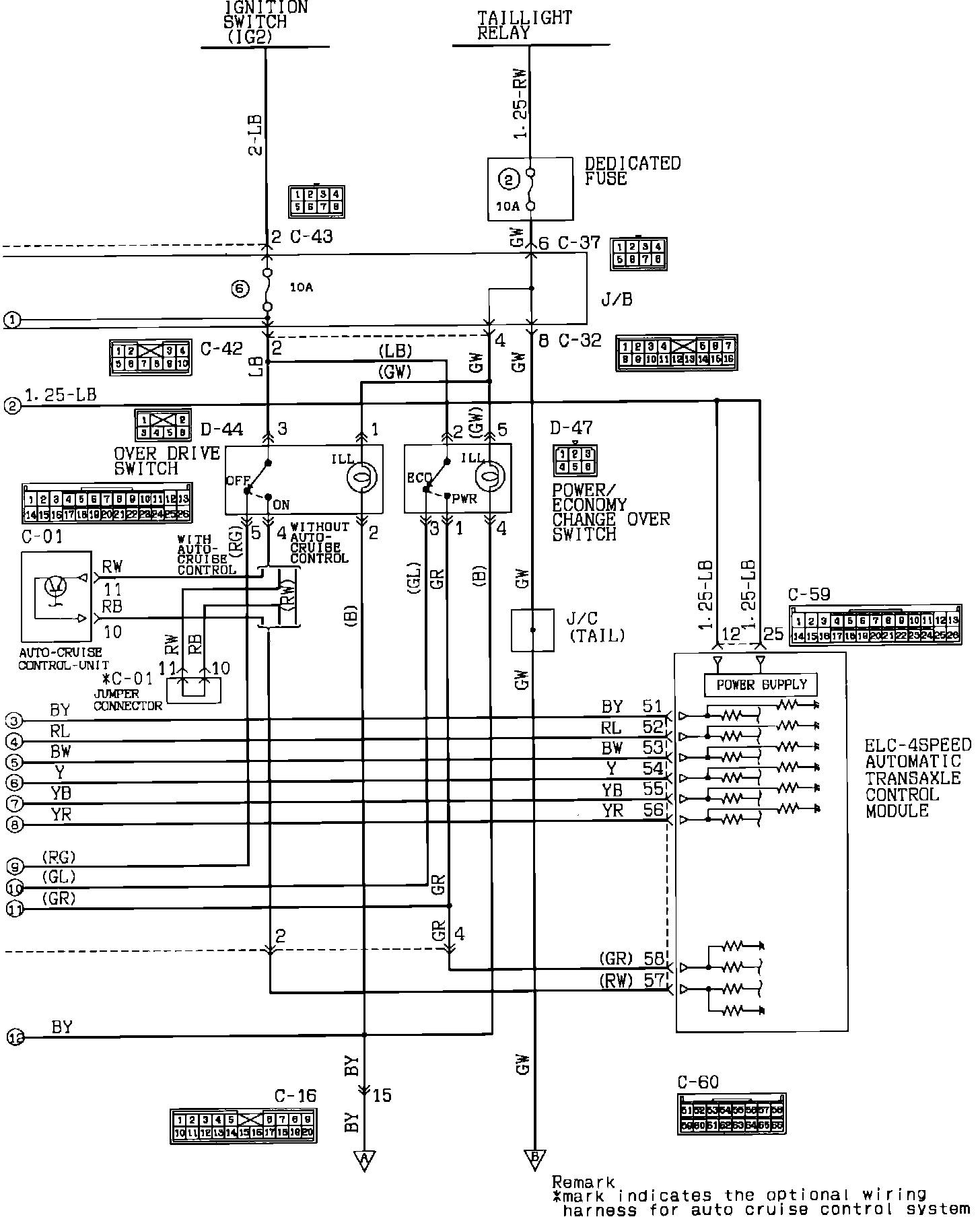

Automatic Transaxle (Electronically Controlled 4-Speed):



Automatic Transaxle (Electronically Controlled 4-Speed):
