Ignition Timing Connector: Description and Operation

Ignition Timing Adjustment Connector:

Purpose
The ignition timing adjustment connector returns timing to the initial setting--Base Timing--when grounded.

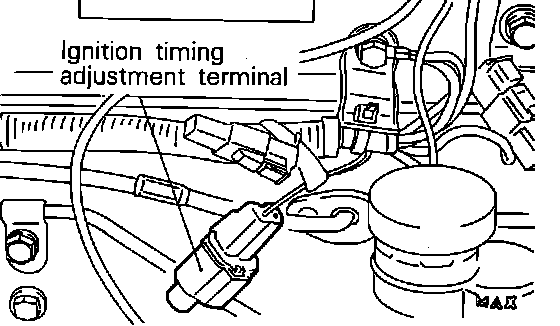

Location
Located on the firewall near the brake master cylinder.
