Condenser Fan: Testing and Inspection

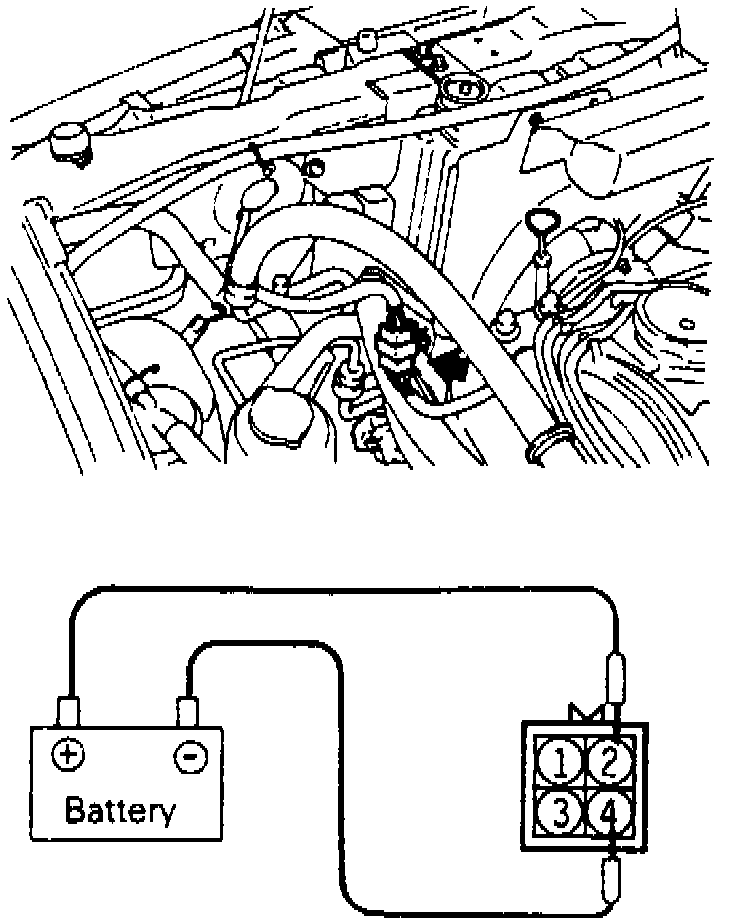

Fig. 14 Condenser Fan Motor Terminal Identification:

1. Disconnect fan motor connector, then apply battery positive voltage to terminal 2 and battery ground to terminal 4, Fig. 14. Motor should operate smoothly.
2. If results are not as indicated, a new fan motor should be installed.
