Removal and Replacement

1. Release fuel pressure as outlined under Technician Safety Information.
2. Disconnect battery ground cable.
3. Scribe reference marks between hood and hood hinges, then remove hood.
4. Drain cooling system into appropriate container as follows:
a. Place temperature control lever in Hot position.
b. Carefully remove radiator cap.
c. Remove radiator drain plug.
5. Remove transaxle assembly.
6. Remove radiator as outlined under Radiator.

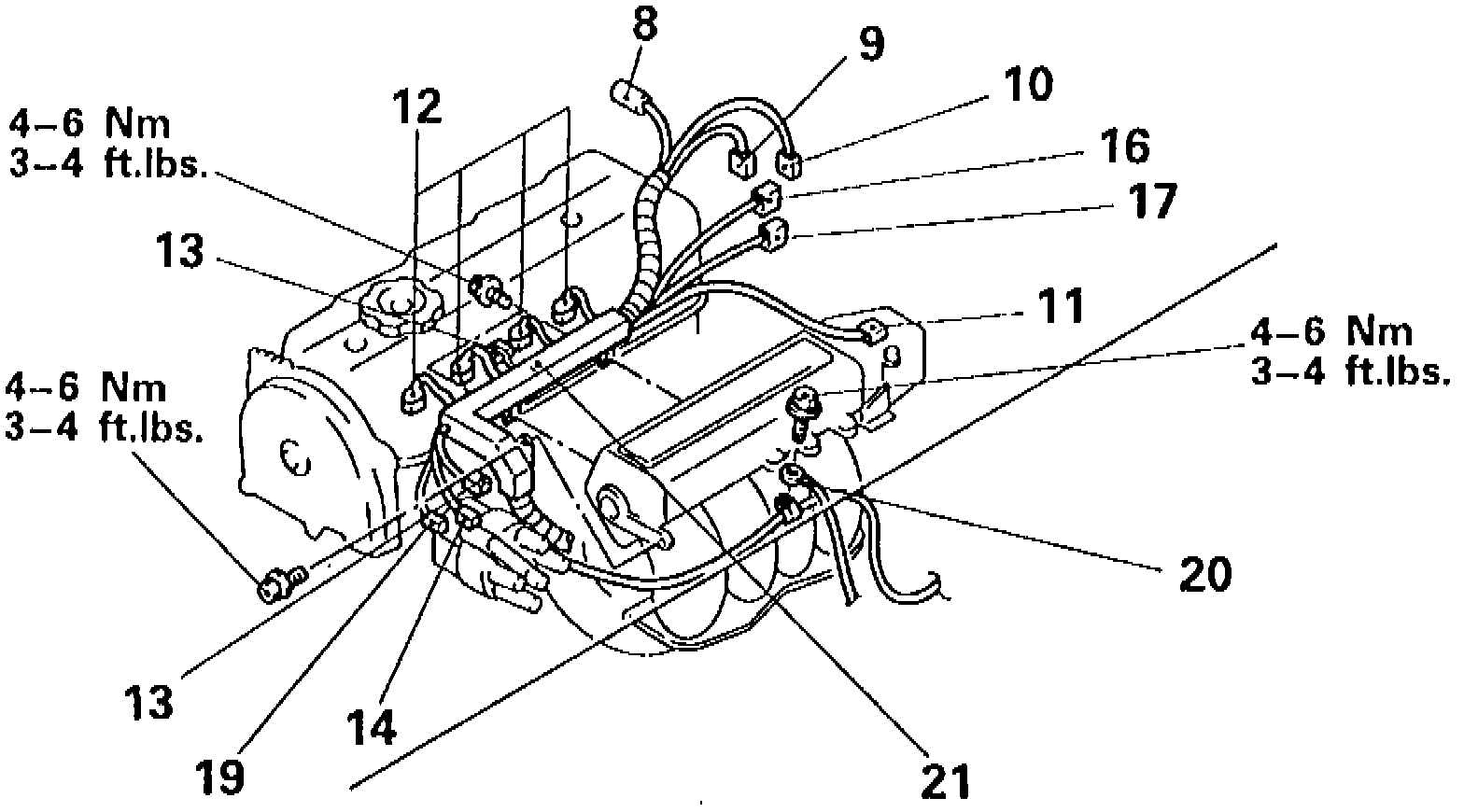

Fig. 2 Engine Assembly Removal (Part 1 Of 2):

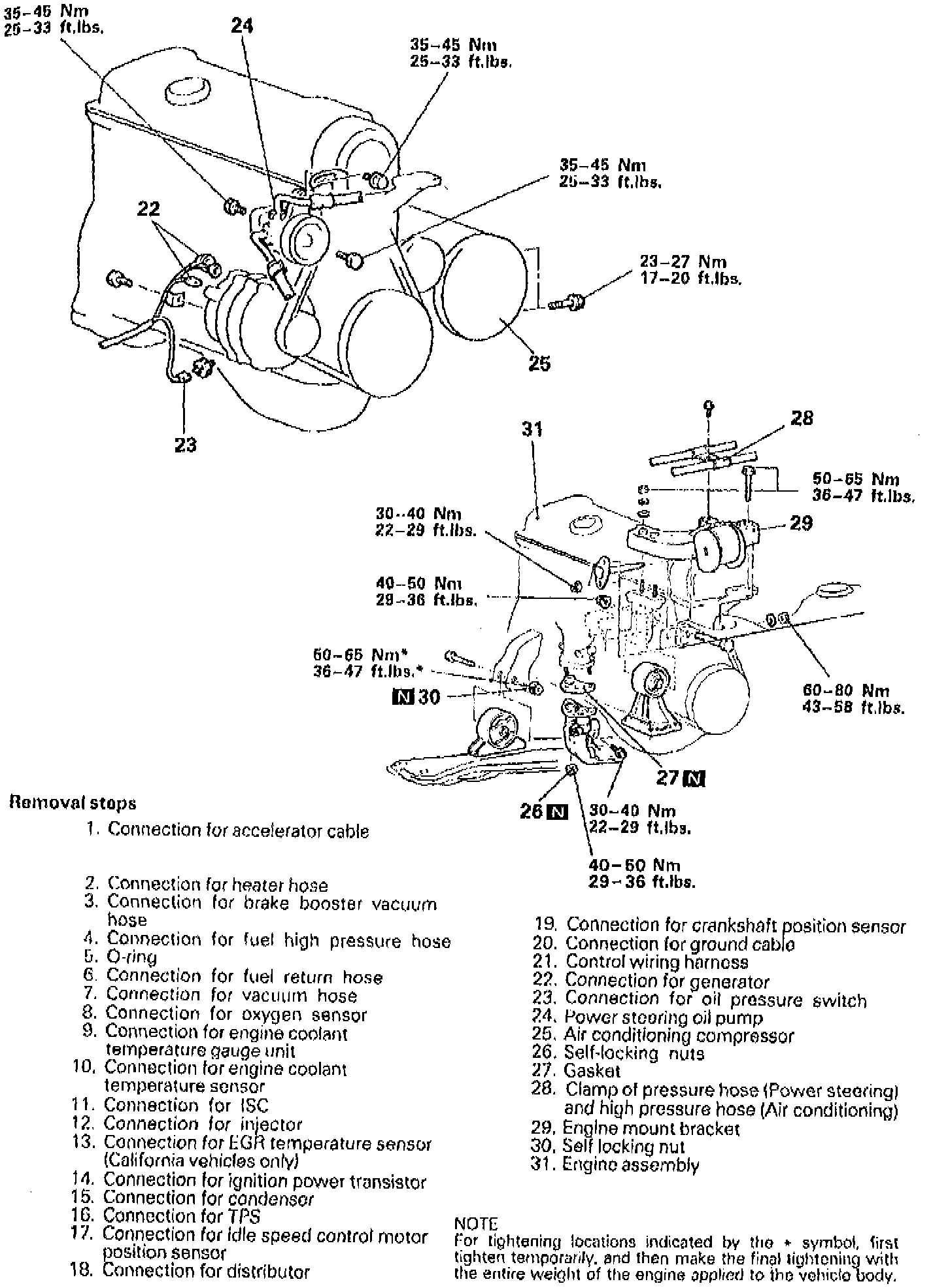

Fig. 2 Engine Assembly Removal (Part 2 Of 2):

7. Remove engine components in order as shown, Fig. 2.
8. Note the following during engine removal:
a. Remove oil pump with hoses attached and support aside with suitable wire.
b. Disconnect A/C compressor connectors, then remove compressor with hoses attached from compressor bracket and support aside with suitable wire.
c. Using a suitable engine hoist, slightly raise engine, then remove engine mount bracket.
d. Ensure all cables, connectors and hoses are disconnected, then remove engine from engine compartment.
9. Reverse procedure to install.
