Radiator: Service and Repair

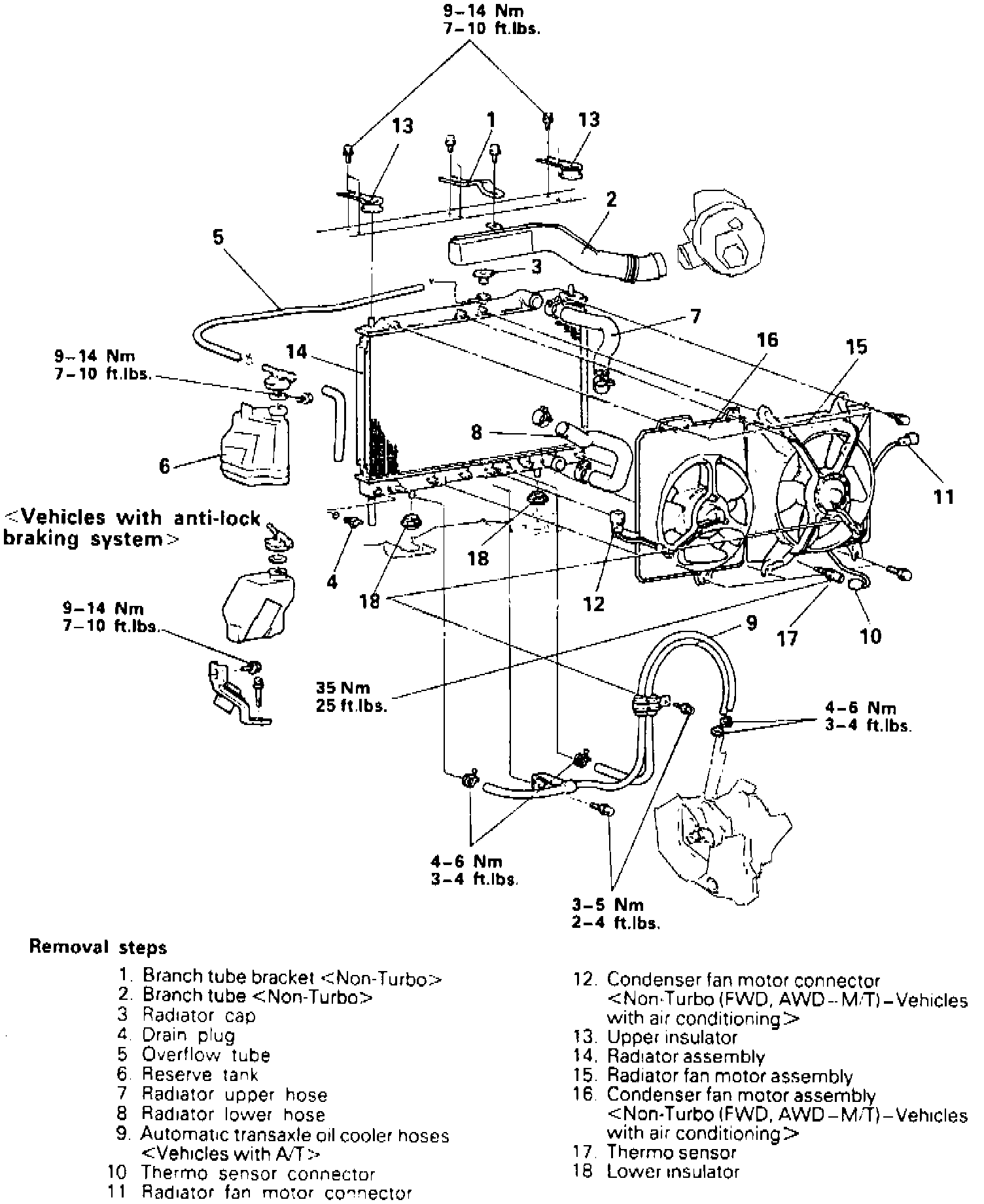

Fig. 64 Radiator Replacement:

1. Remove radiator components in order as shown, Fig. 64, noting the following:
a. Prior to removing radiator hoses, mark hose clamps in relation to hoses for installation reference.
b. After disconnecting transaxle cooler lines plug or cover ends of lines to prevent entry of dirt or foreign material.
