Wheel Speed Sensor: Locations

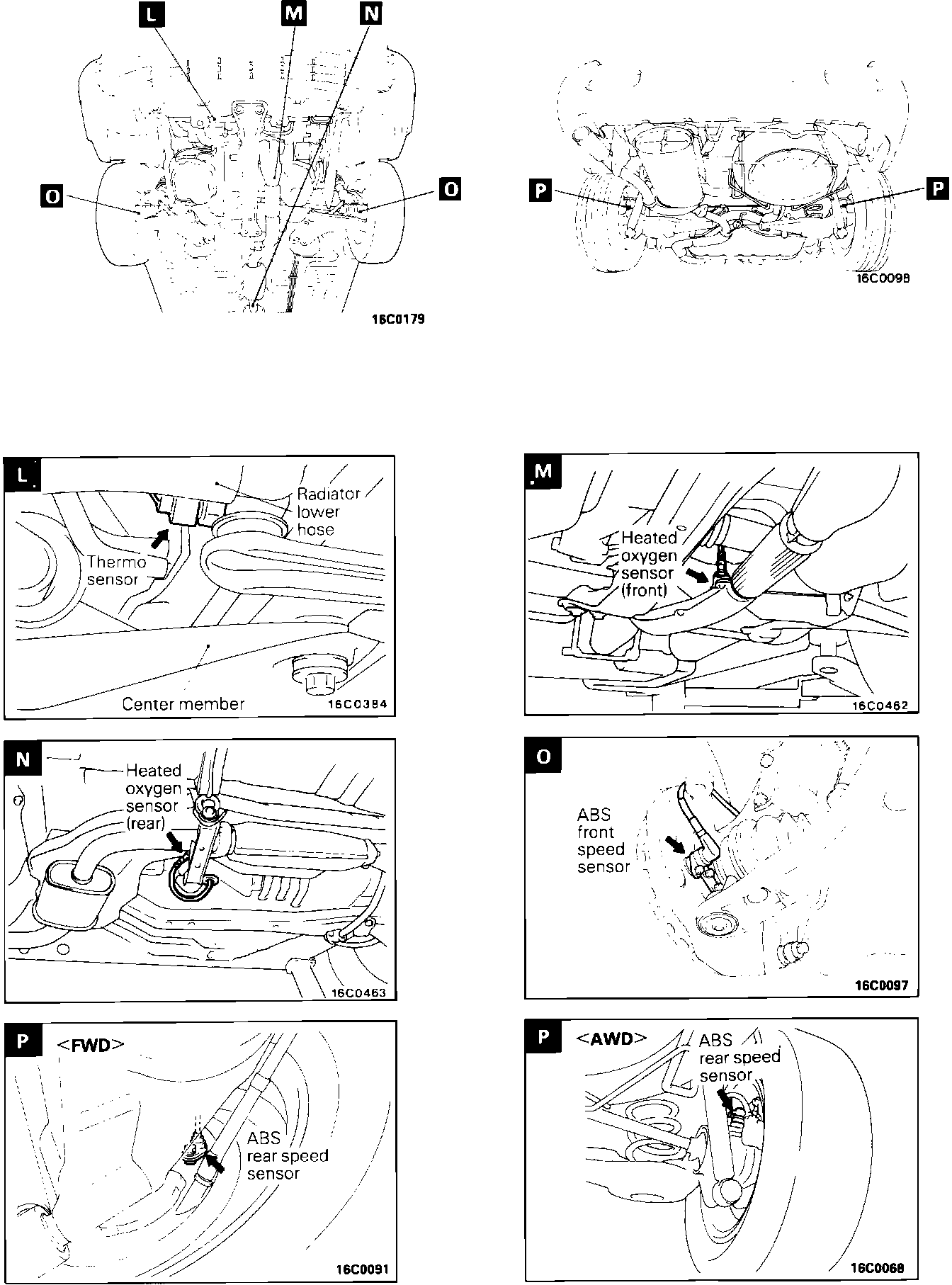

Sensor Location: Engine Compartment:



Sensor Location: Under Front And Rear Floor:
