Home >> Mitsubishi >> 1993 >> Expo LRV AWD L4-1834cc 1.8L SOHC 16 Valve >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Application and ID >> Multi-Purpose Fuses (In Junction Block)

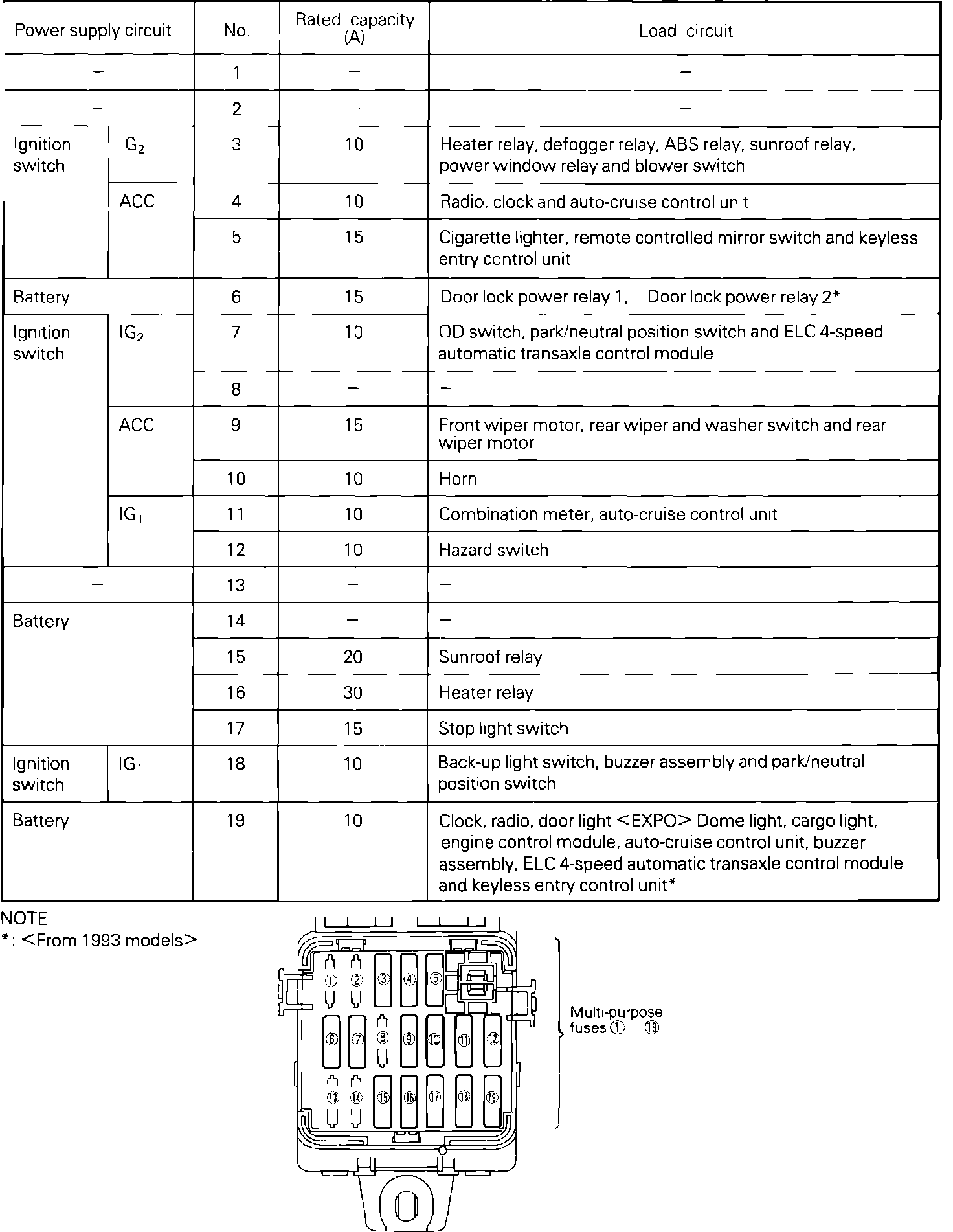

Multi-Purpose Fuses (In Junction Block)

Centralized Junction: Multi-Purpose Fuse (In Junction Block):
