Automatic Transmission

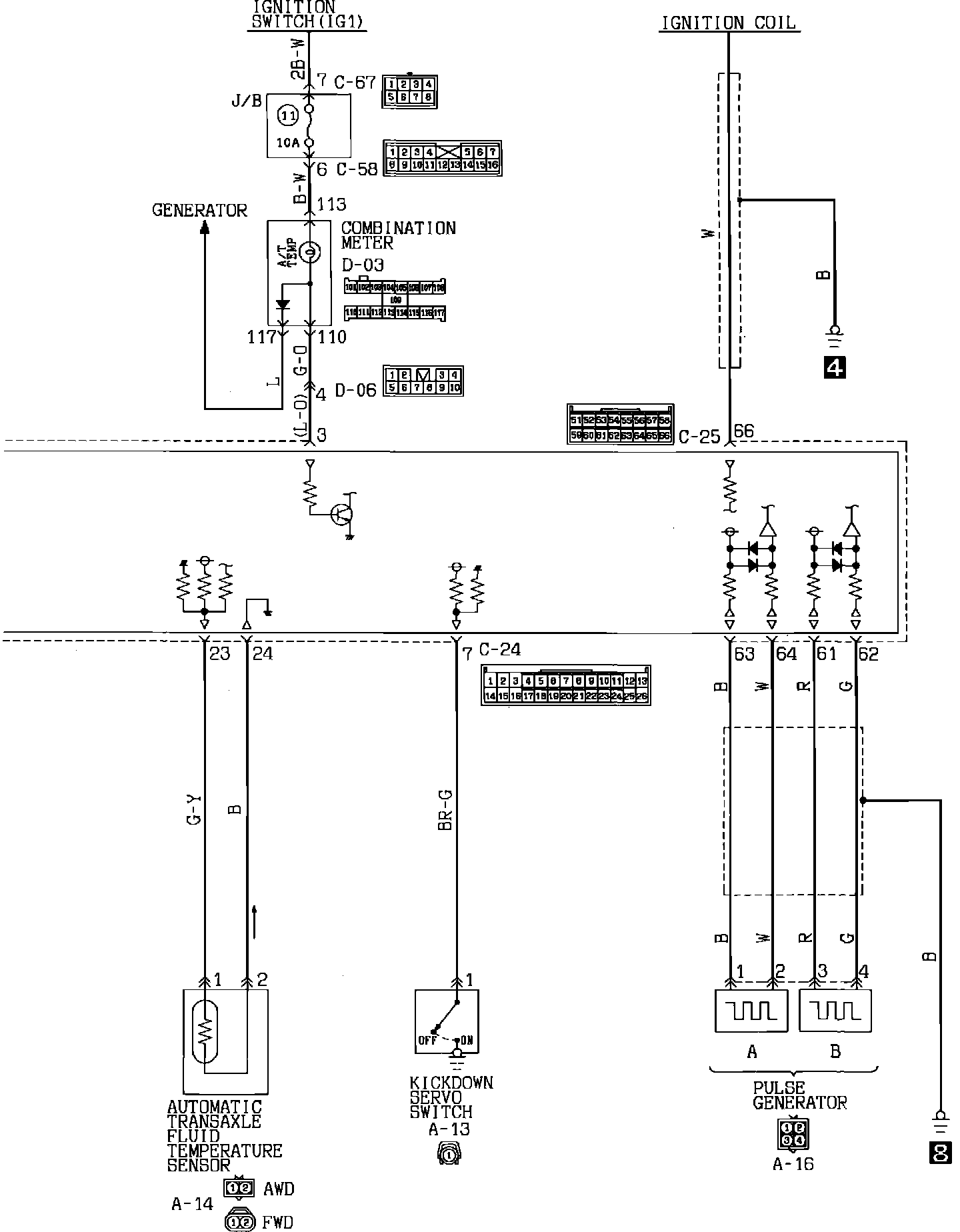

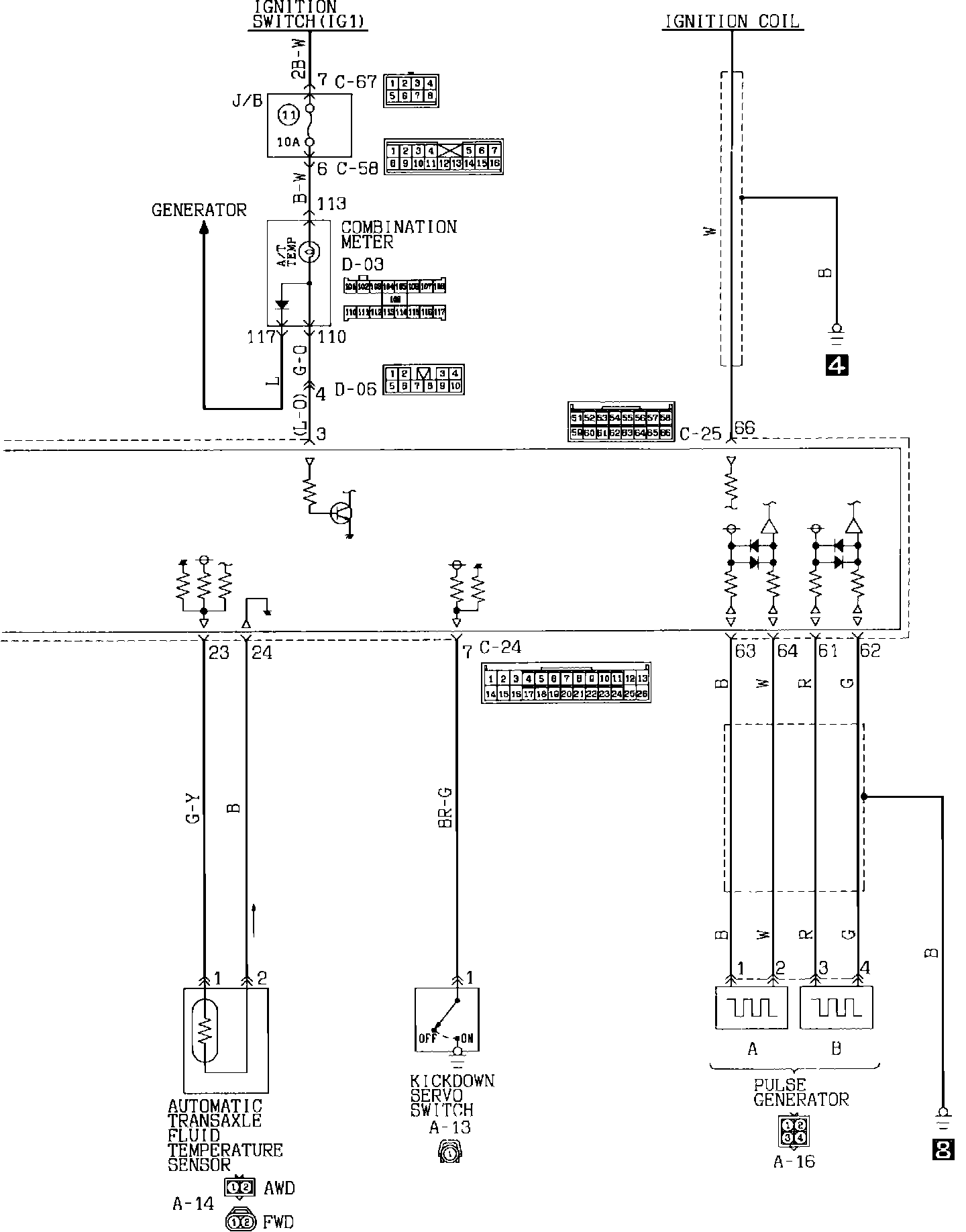

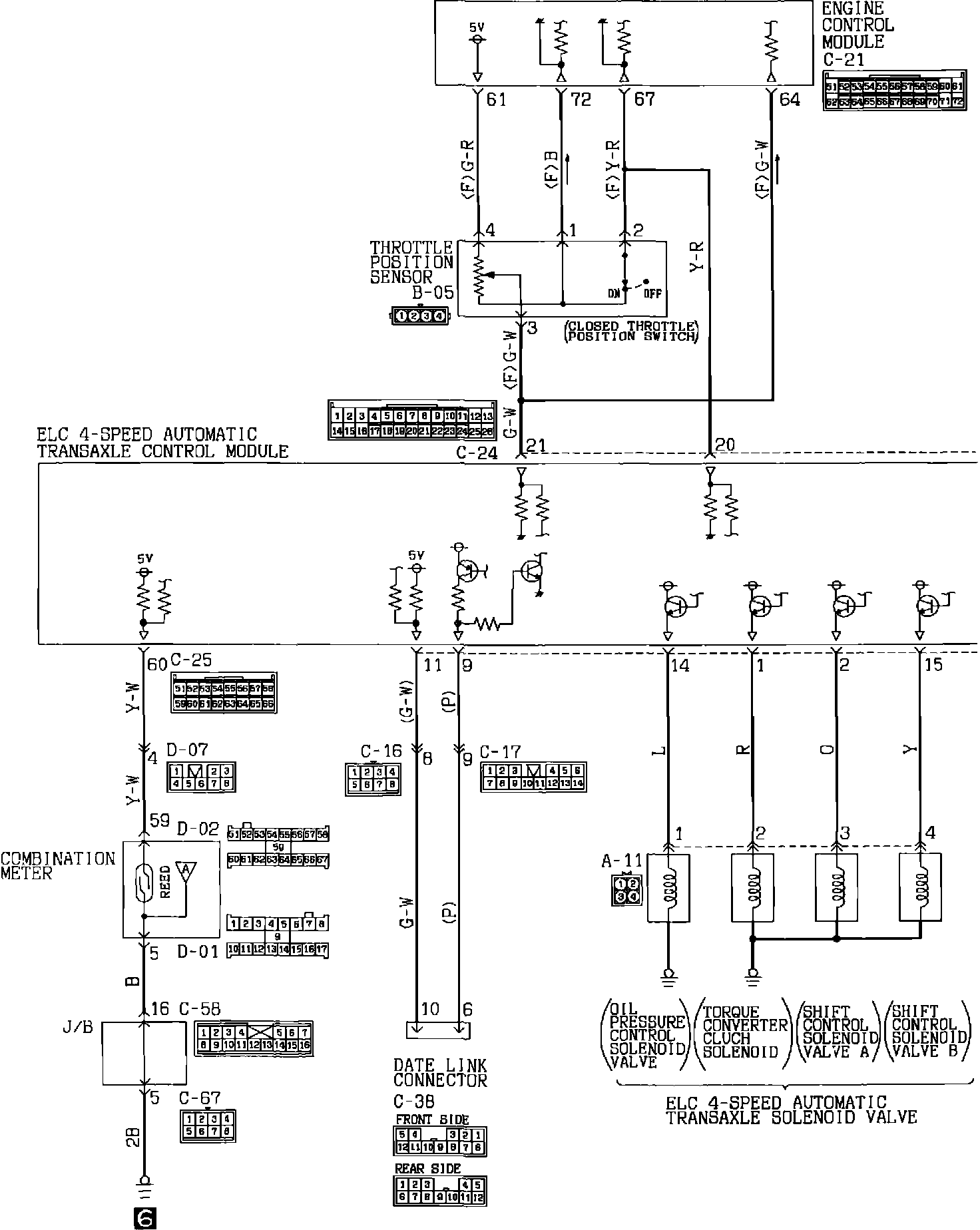

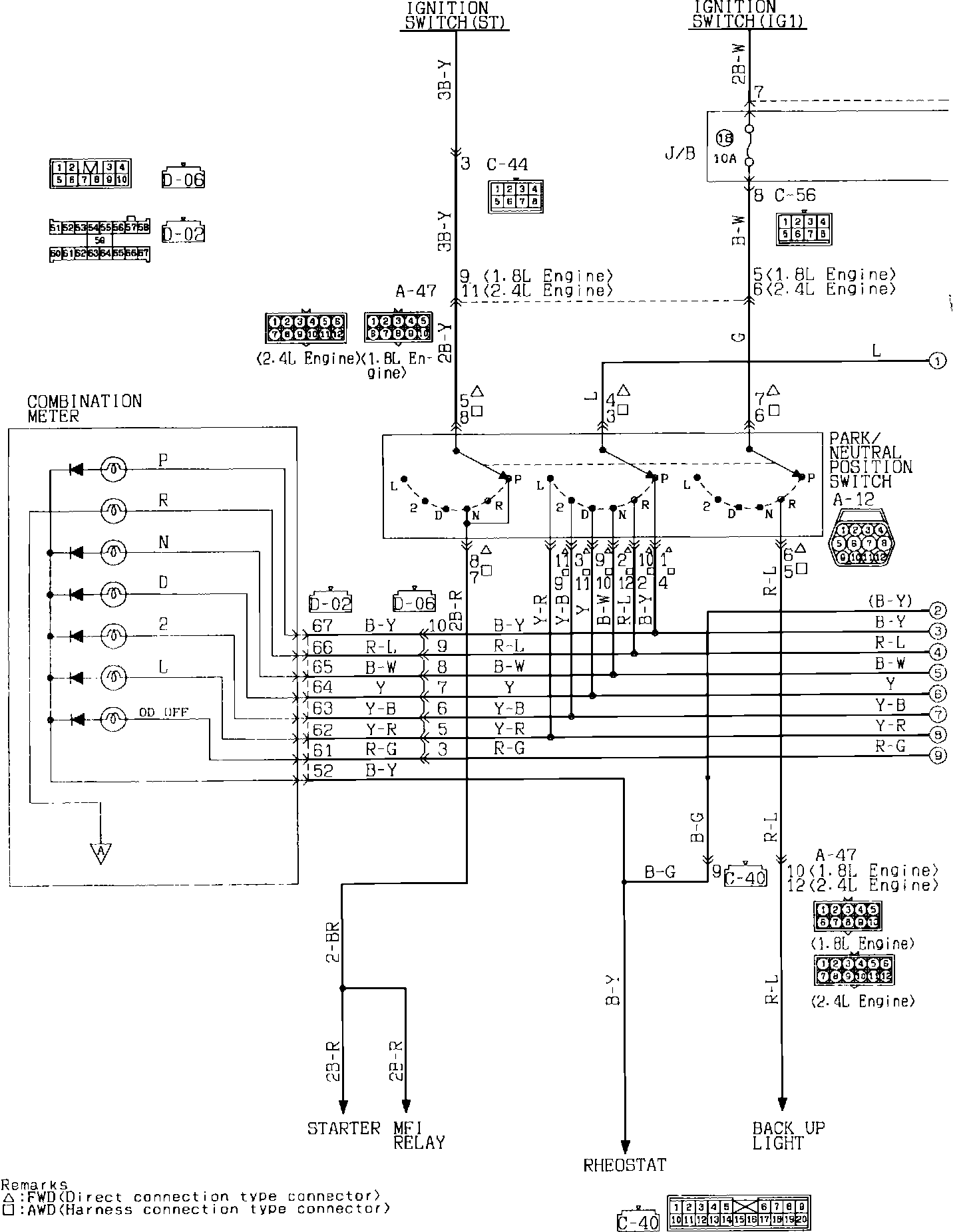

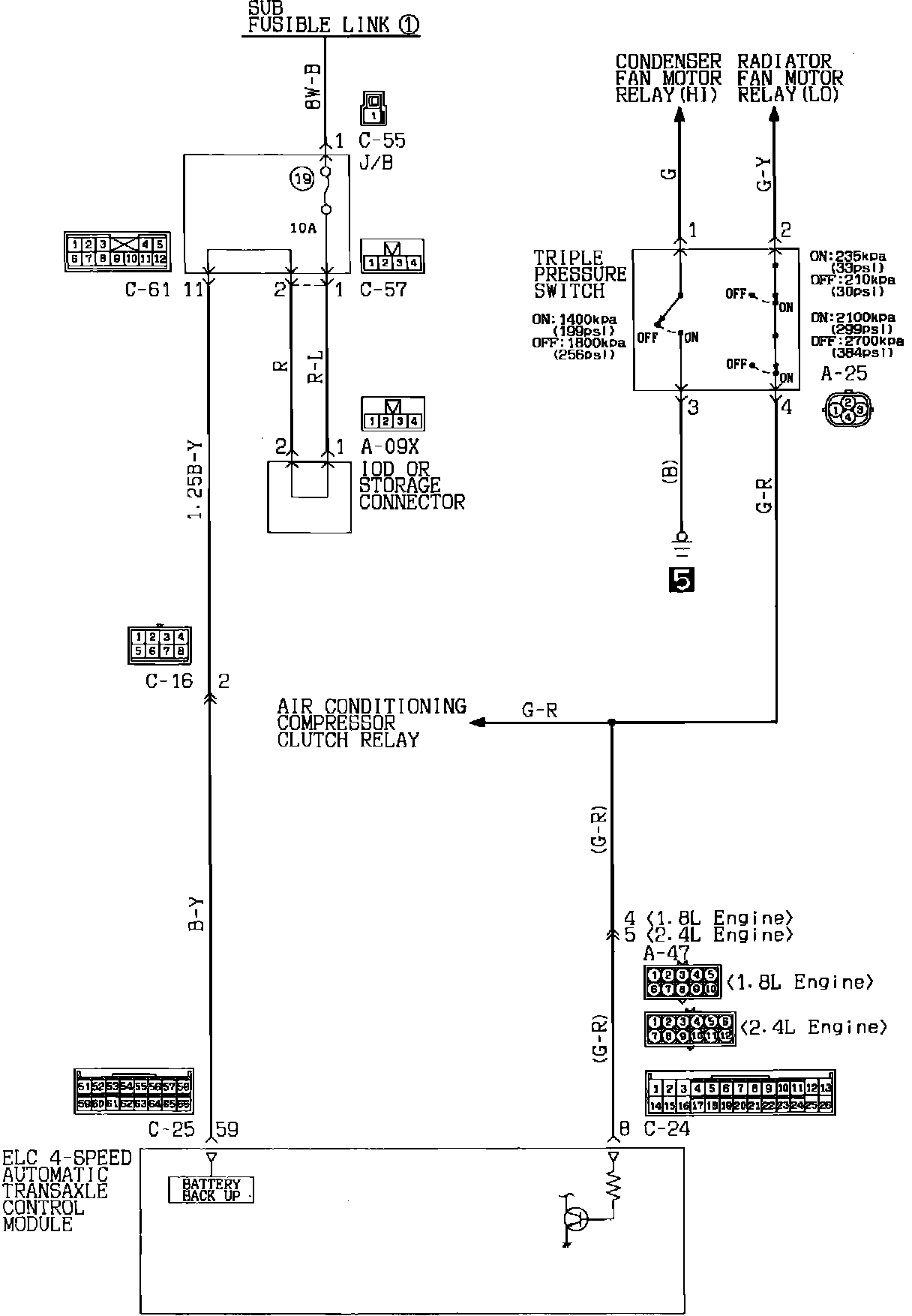

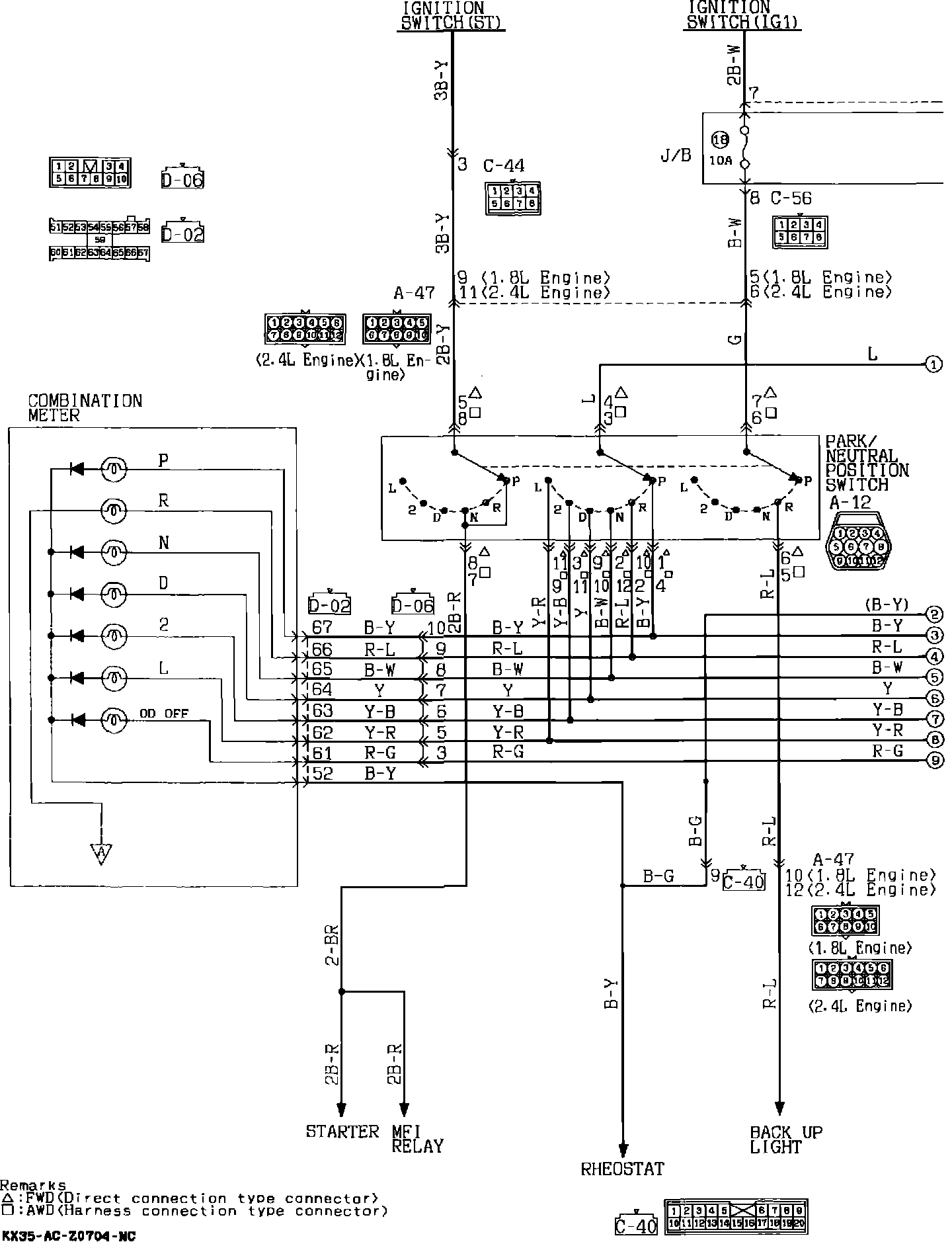

Automatic Transaxle (Electronically Controlled 4-Speed):

Automatic Transaxle (Electronically Controlled 4-Speed):

Automatic Transaxle (Electronically Controlled 4-Speed):

Automatic Transaxle (Electronically Controlled 4-Speed):

Automatic Transaxle (Electronically Controlled 4-Speed):

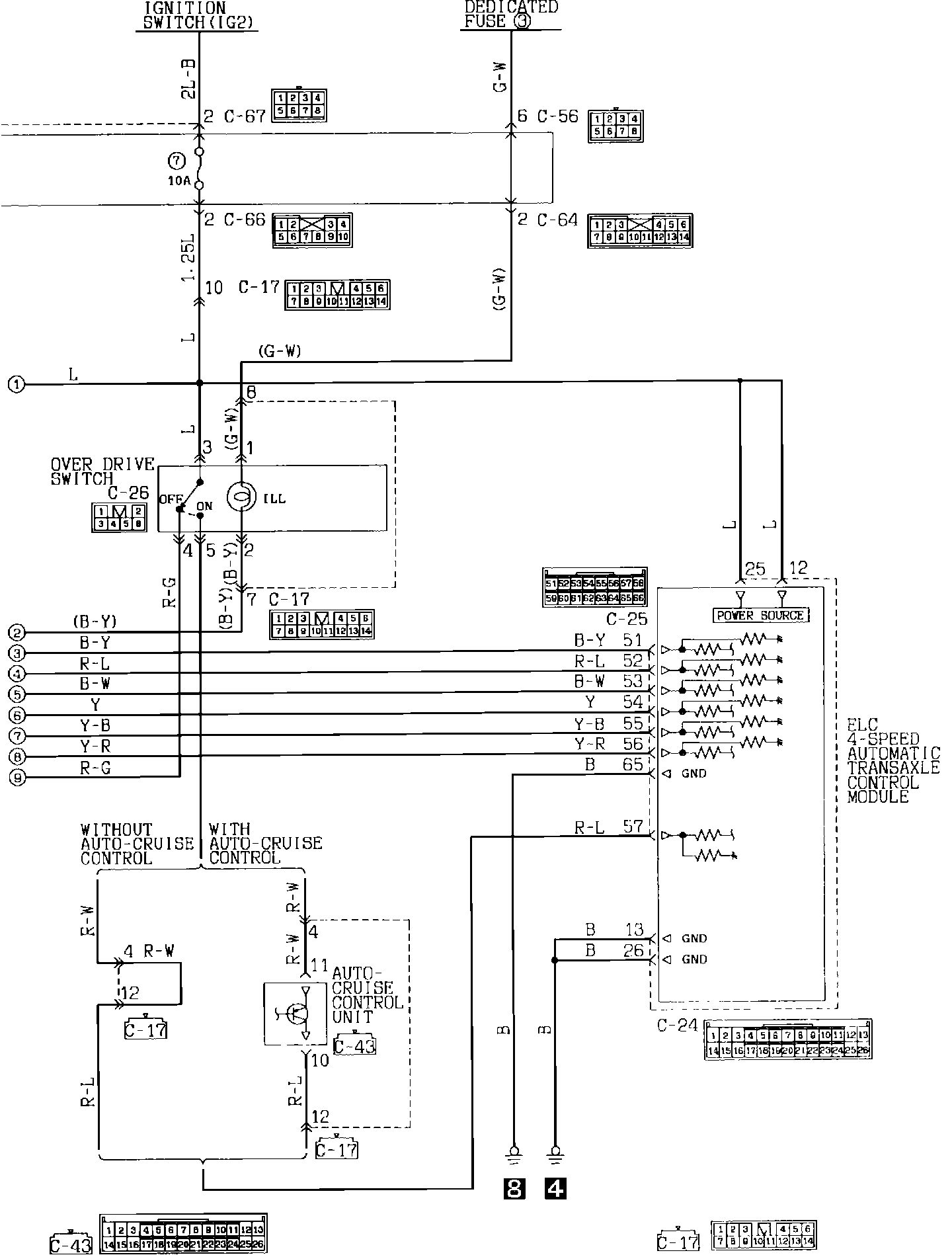

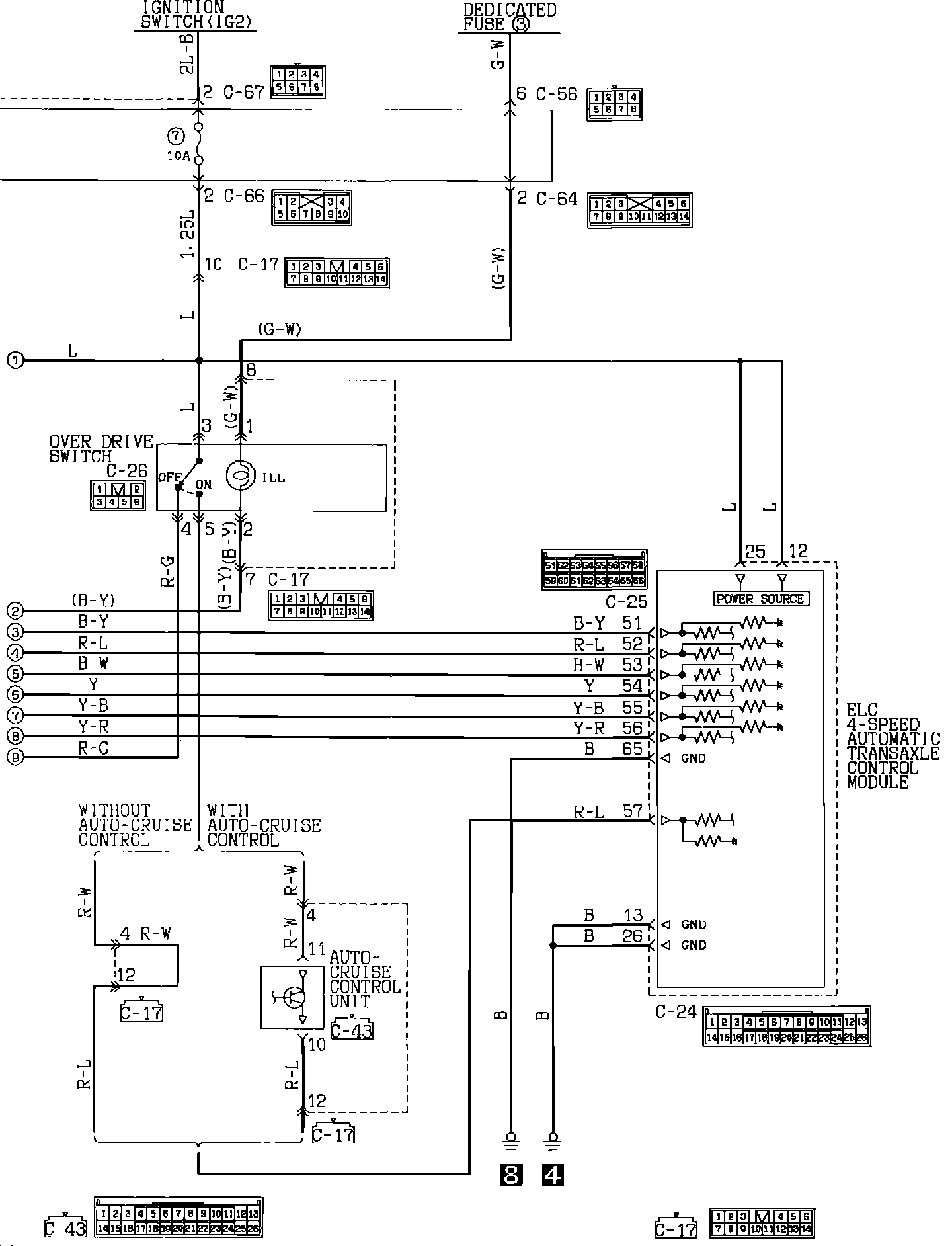

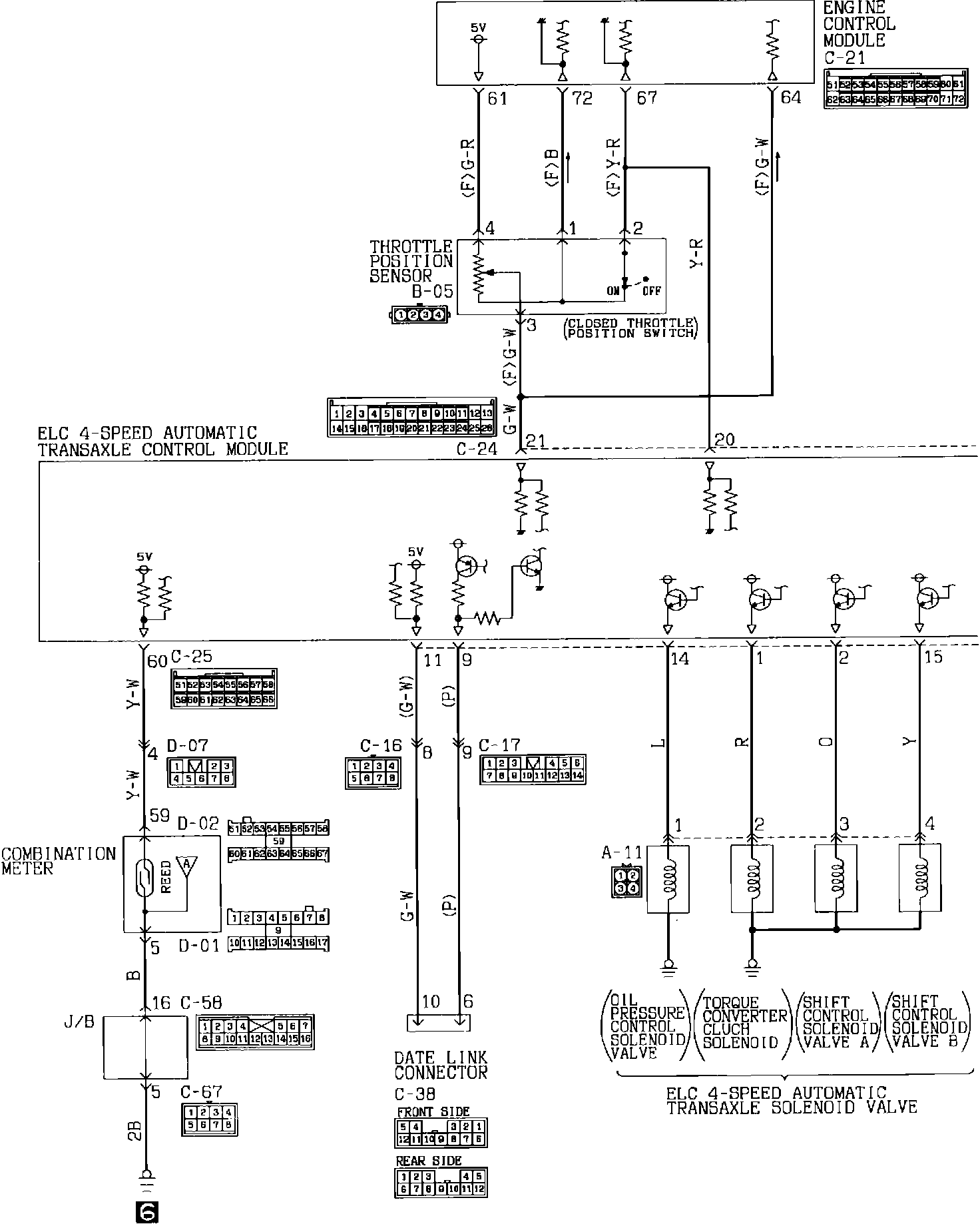

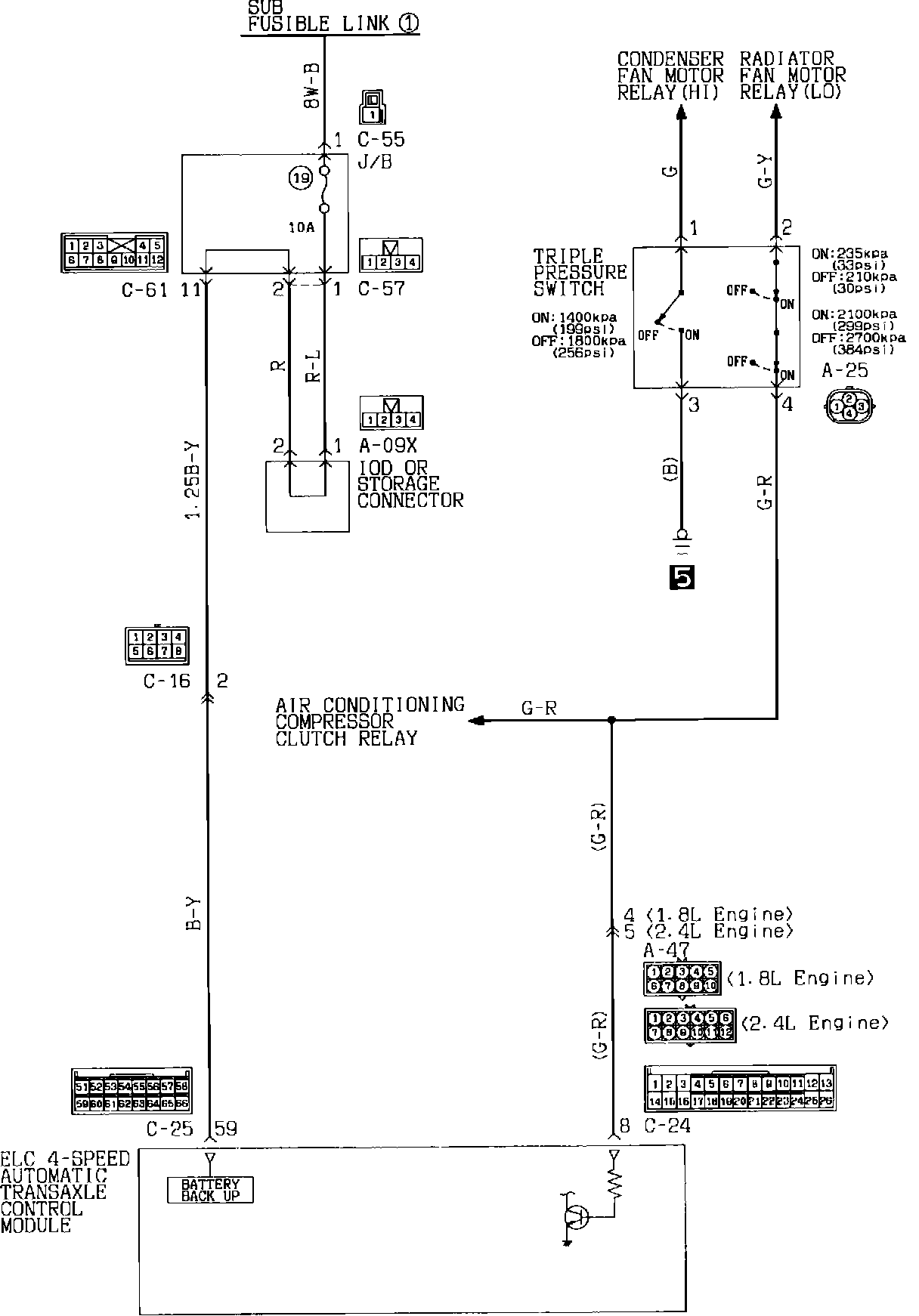

4 Speed Automatic Transmission Circuit:

4 Speed Automatic Transmission Circuit:

4 Speed Automatic Transmission Circuit:

4 Speed Automatic Transmission Circuit:

4 Speed Automatic Transmission Circuit:
