Dedicated Fuse (Engine Compartment)

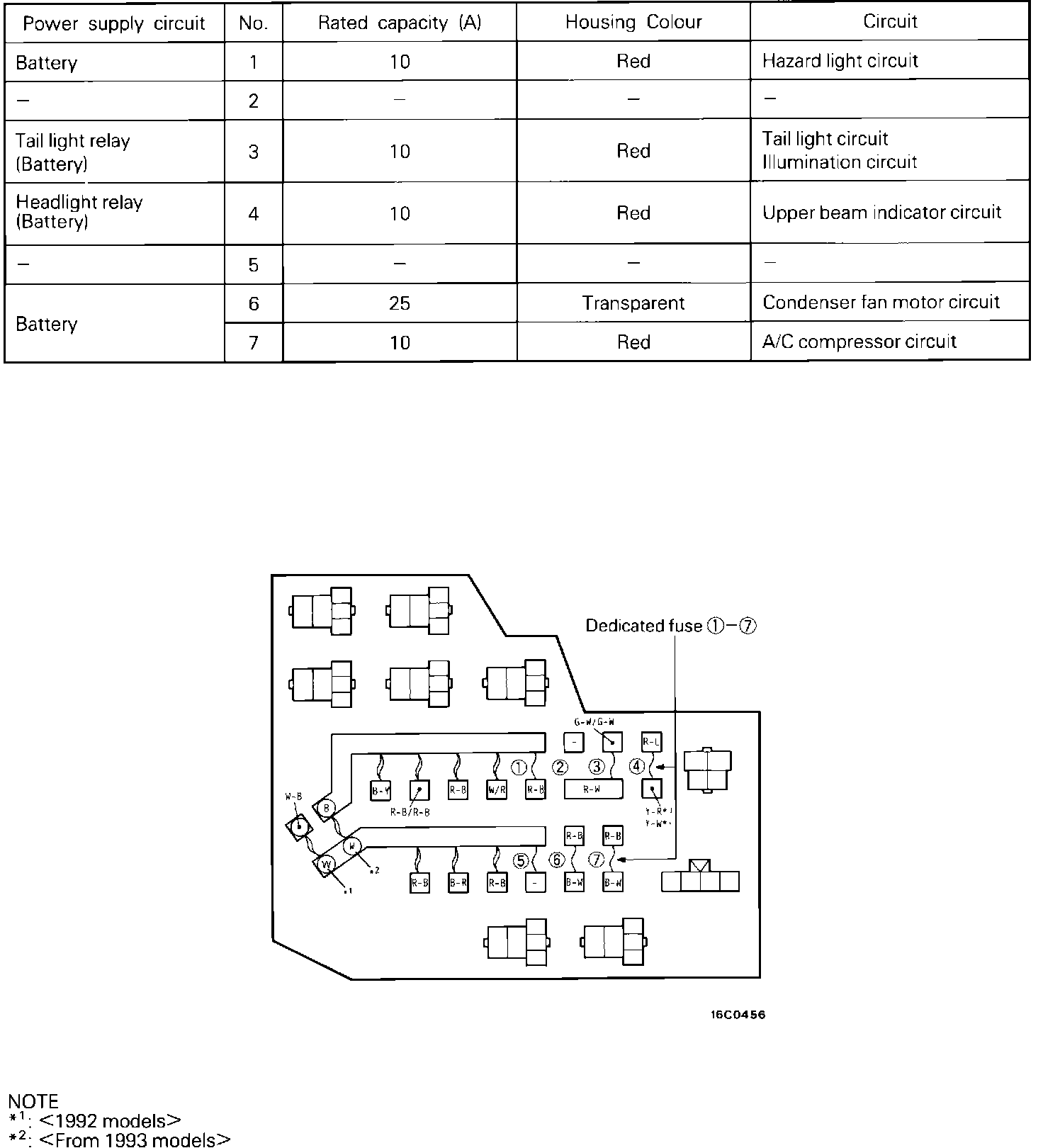

Centralized Junction: Dedicated Fuse (Relay Box In Engine Compartment):
