Piston Ring: Service and Repair

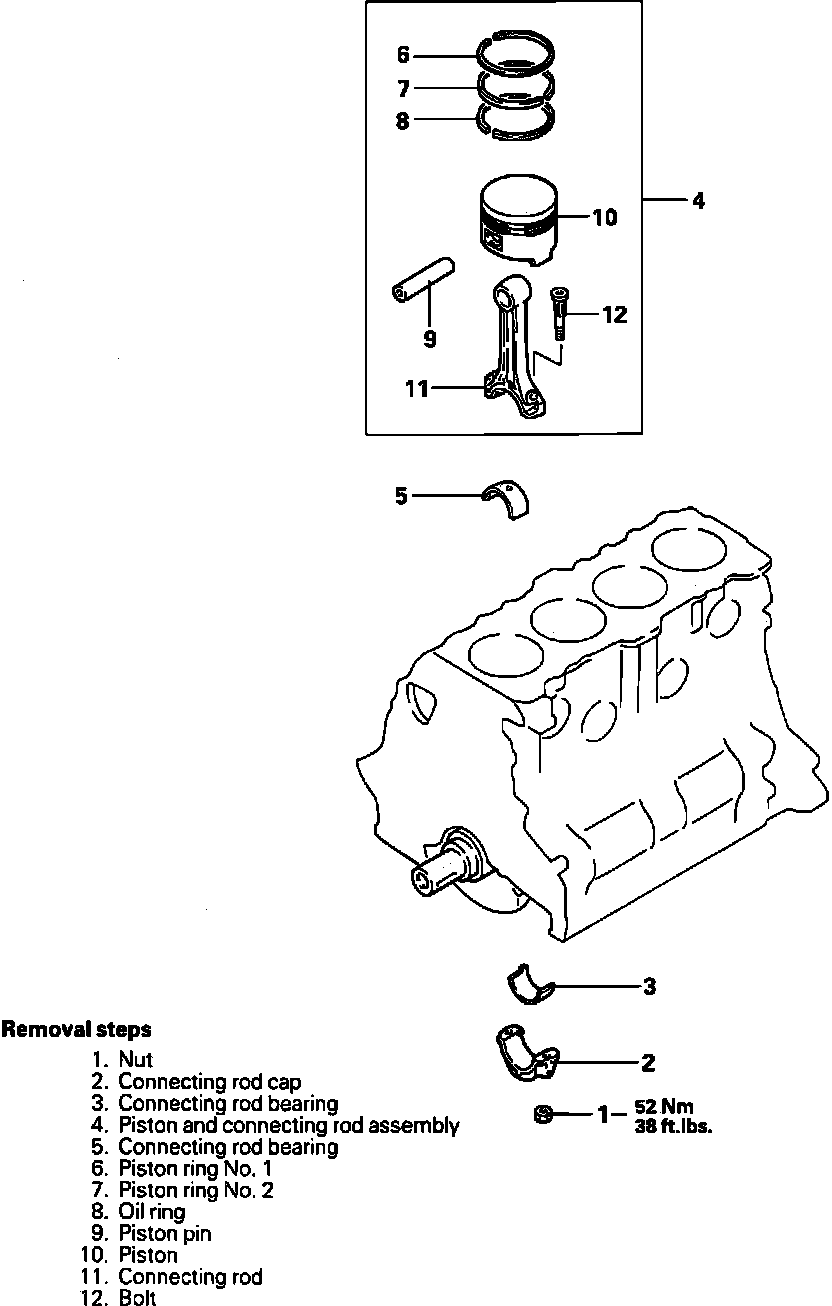

Fig. 30 Piston & Connection Rod:

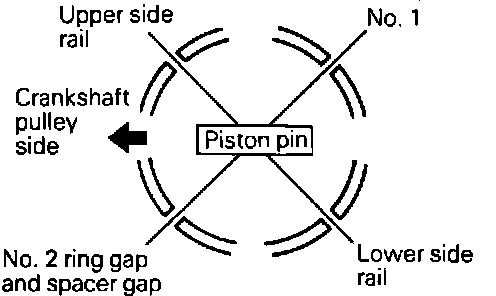

Fig. 31 Piston Ring Installation Direction:

1. Release fuel system pressure as outlined under MAINTENANCE PROCEDURES/FUEL SYSTEM PRESSURE RELIEF.
2. Disconnect battery ground cable.
3. Remove engine as outlined under ENGINE.
4. Remove timing belt as outlined under TIMING BELT.
5. Remove water pump as outlined under WATER PUMP.
6. Remove cylinder head as outlined under CYLINDER HEAD.
7. Remove oil pan as outlined under OIL PUMP, FRONT CASE & OIL PAN.
8. Remove piston and connecting rod in numbered sequence shown in Fig. 30, marking the large end of each connecting rod with the cylinder number.
9. Reverse procedure to install, noting the following:
a. Arrange piston ring oil gaps and piston as shown in Fig. 31.
b. Use suitable thread protectors on connection rod studs prior to installation.
c. Mate each connecting rod marking with appropriate cylinder.
d. Install connecting rod bearing cap on connecting rod.
e. Coat threads lightly with oil.
f. Install both nuts finger tight.
g. Alternately tighten each nut to specification.
