Expo L4-2350cc 2.4L SOHC 16 Valve
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
>>
Without Central Locking (Type A)
Without Central Locking (Type A)

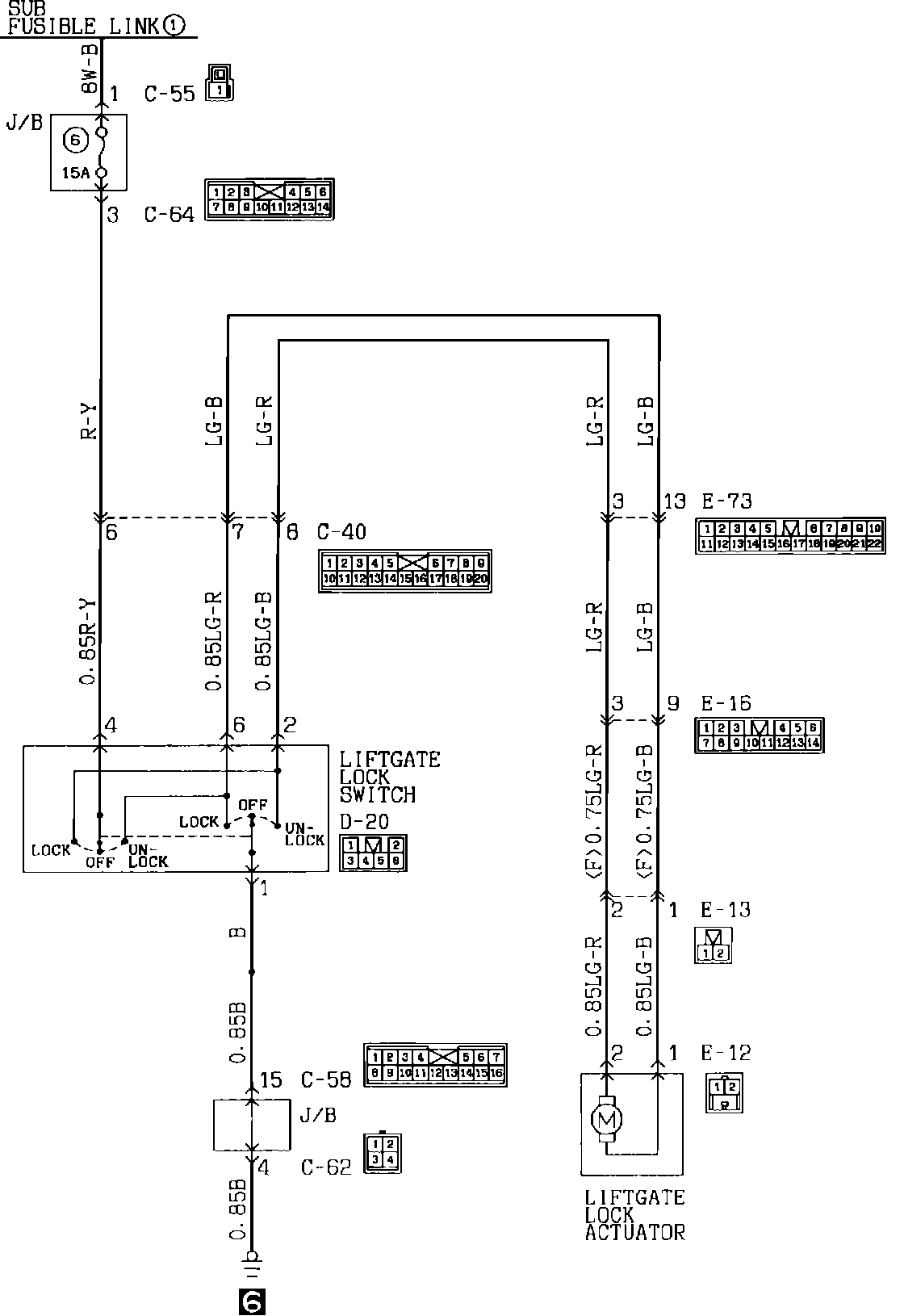

Liftgate Locking (Without Central Locking, Type A):
