Mitsubishi
>>
1993
>>
Expo L4-2350cc 2.4L SOHC 16 Valve
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

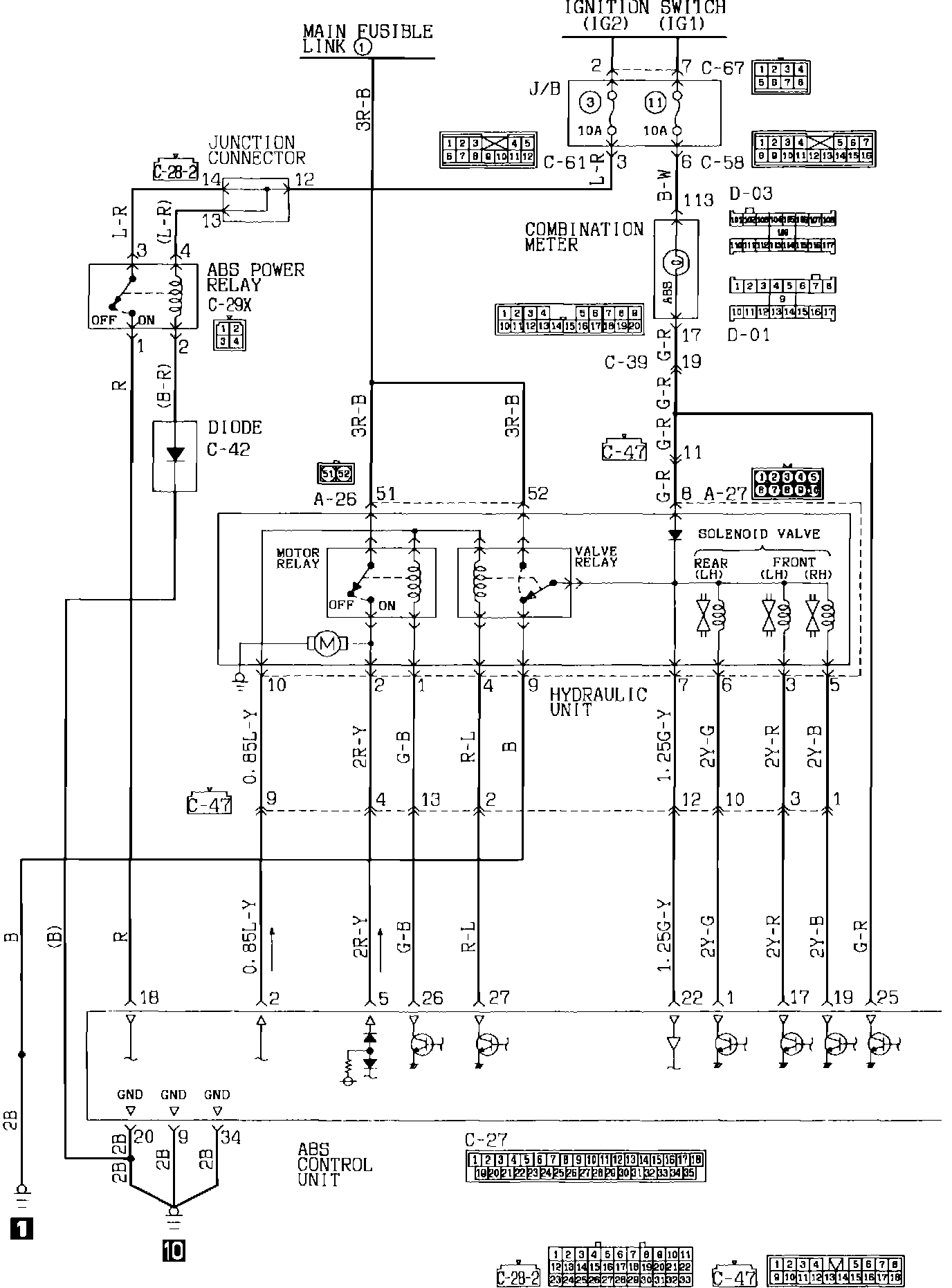

Fig. 9 Anti-lock Brake System Wiring Diagram (Part 1 Of 2). Expo FWD:

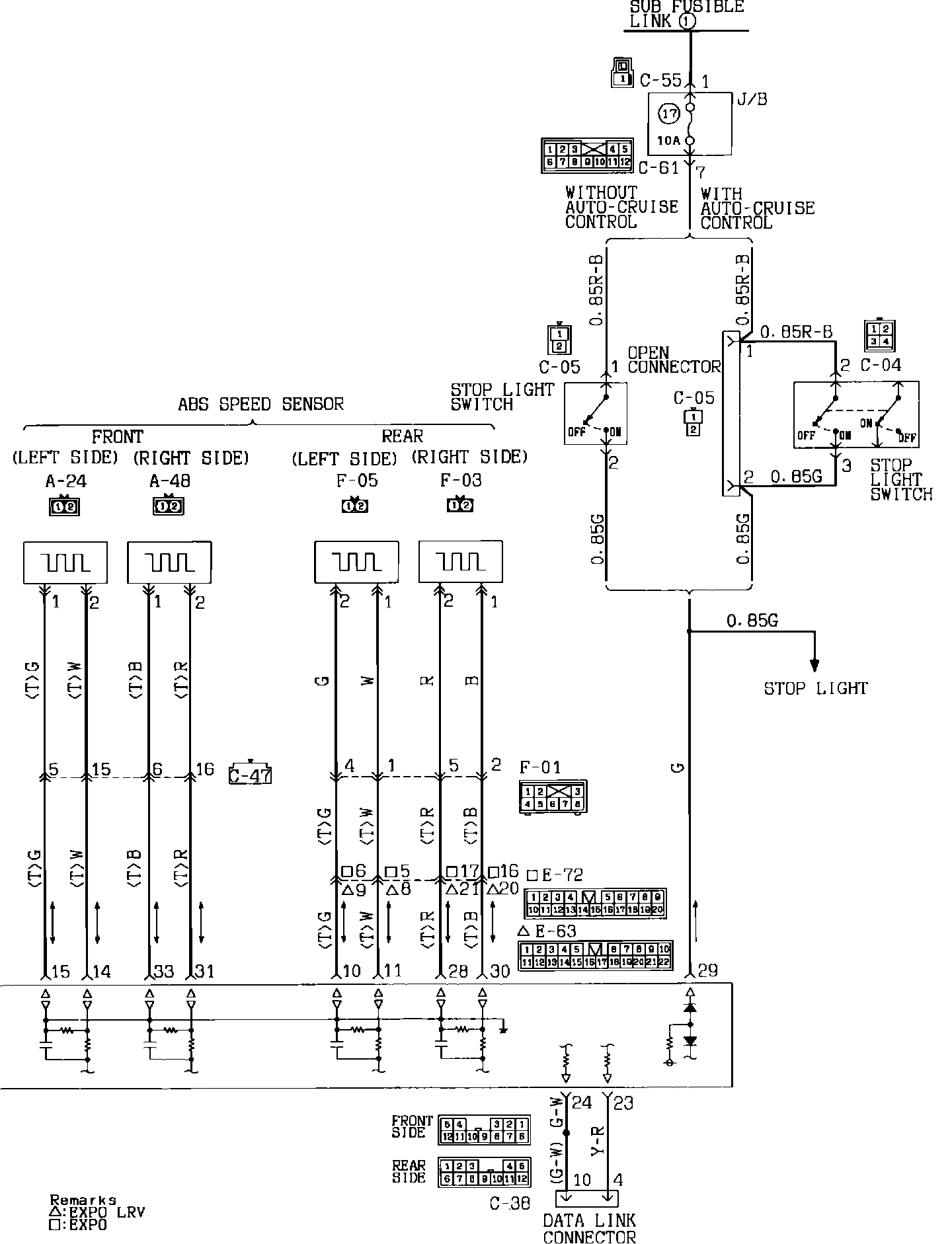

Fig. 9 Anti-lock Brake System Wiring Diagram (Part 2 Of 2). Expo FWD:
