Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
1993
>>
Eclipse L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

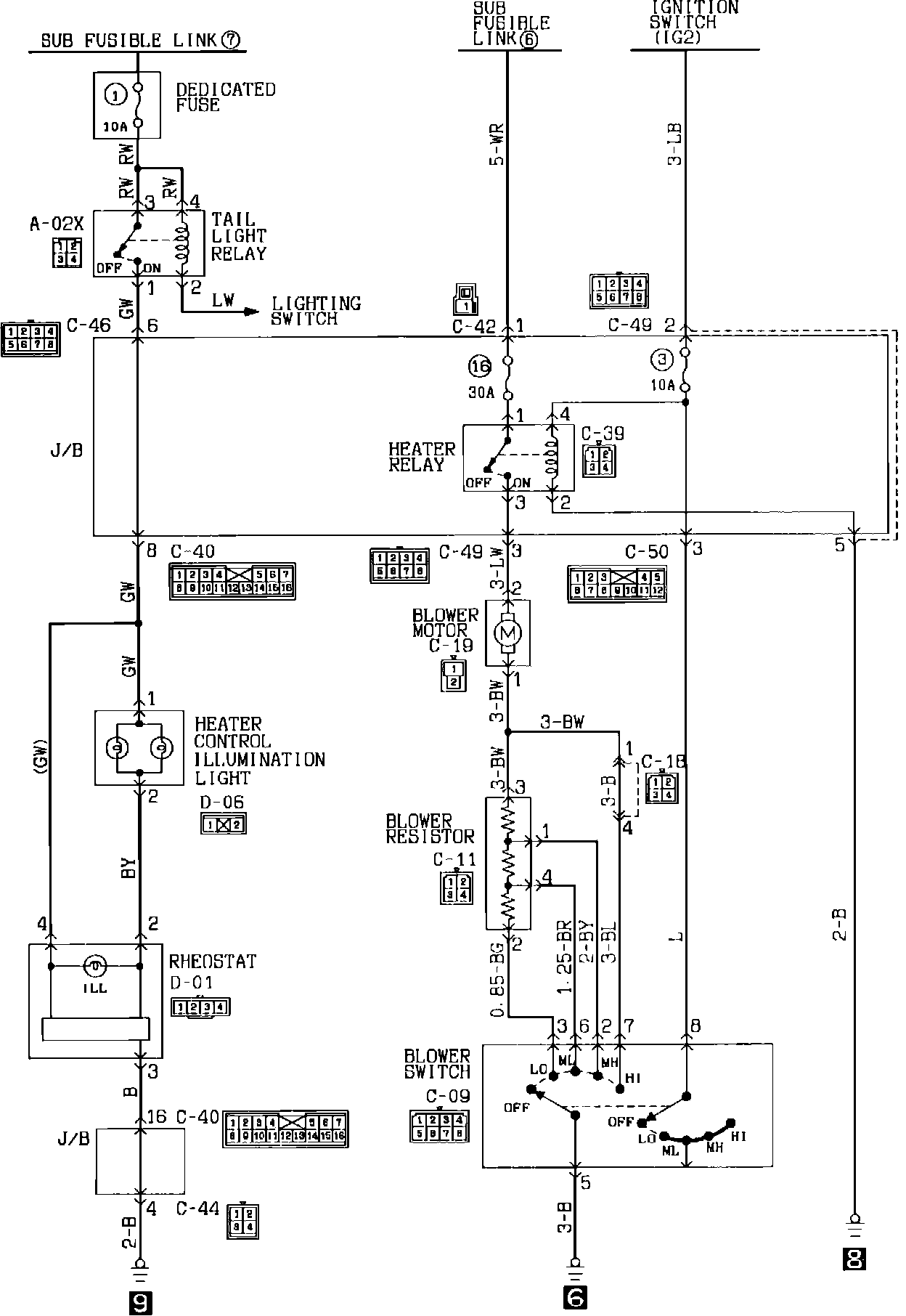

Heater:

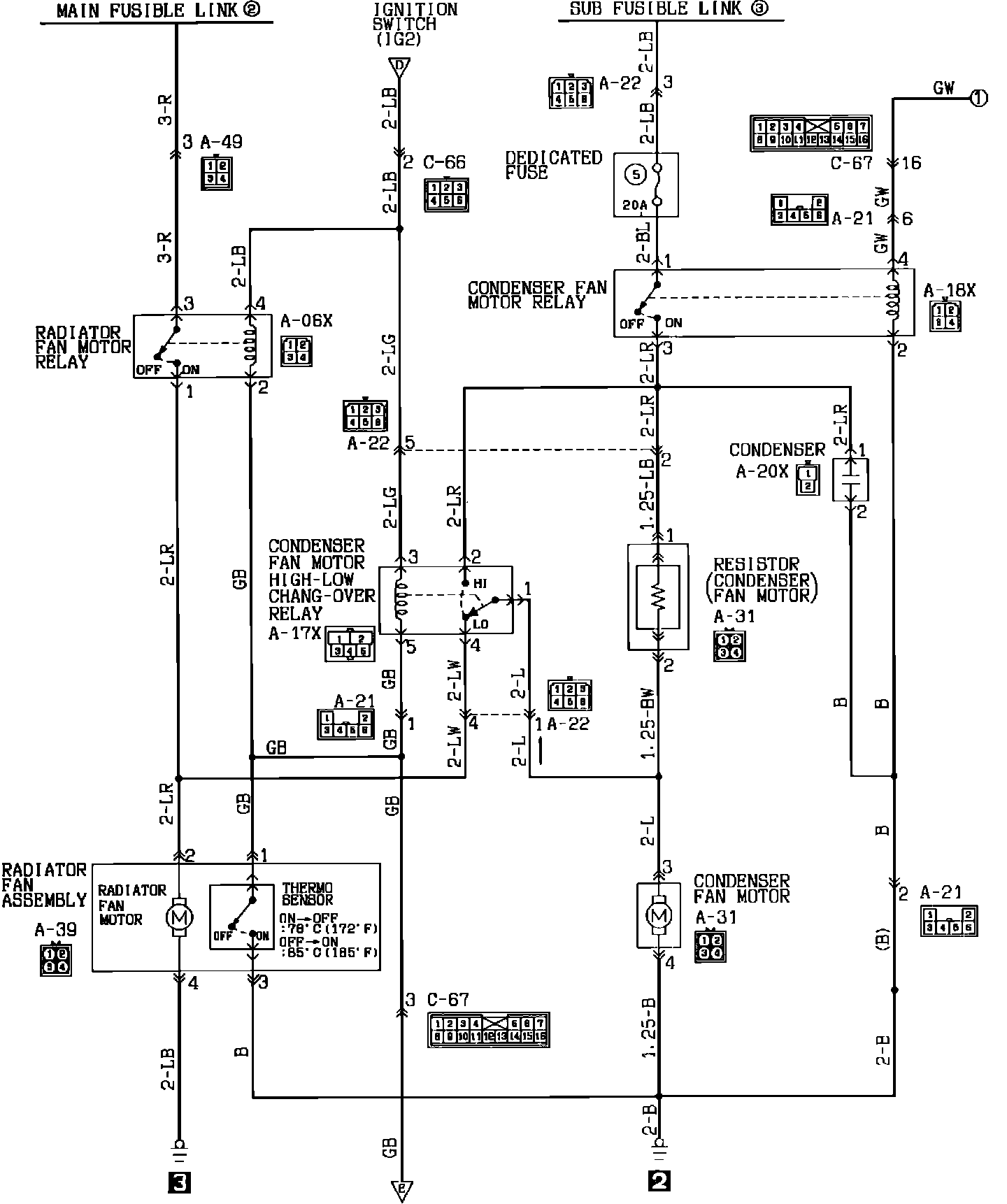

Air Conditioner:

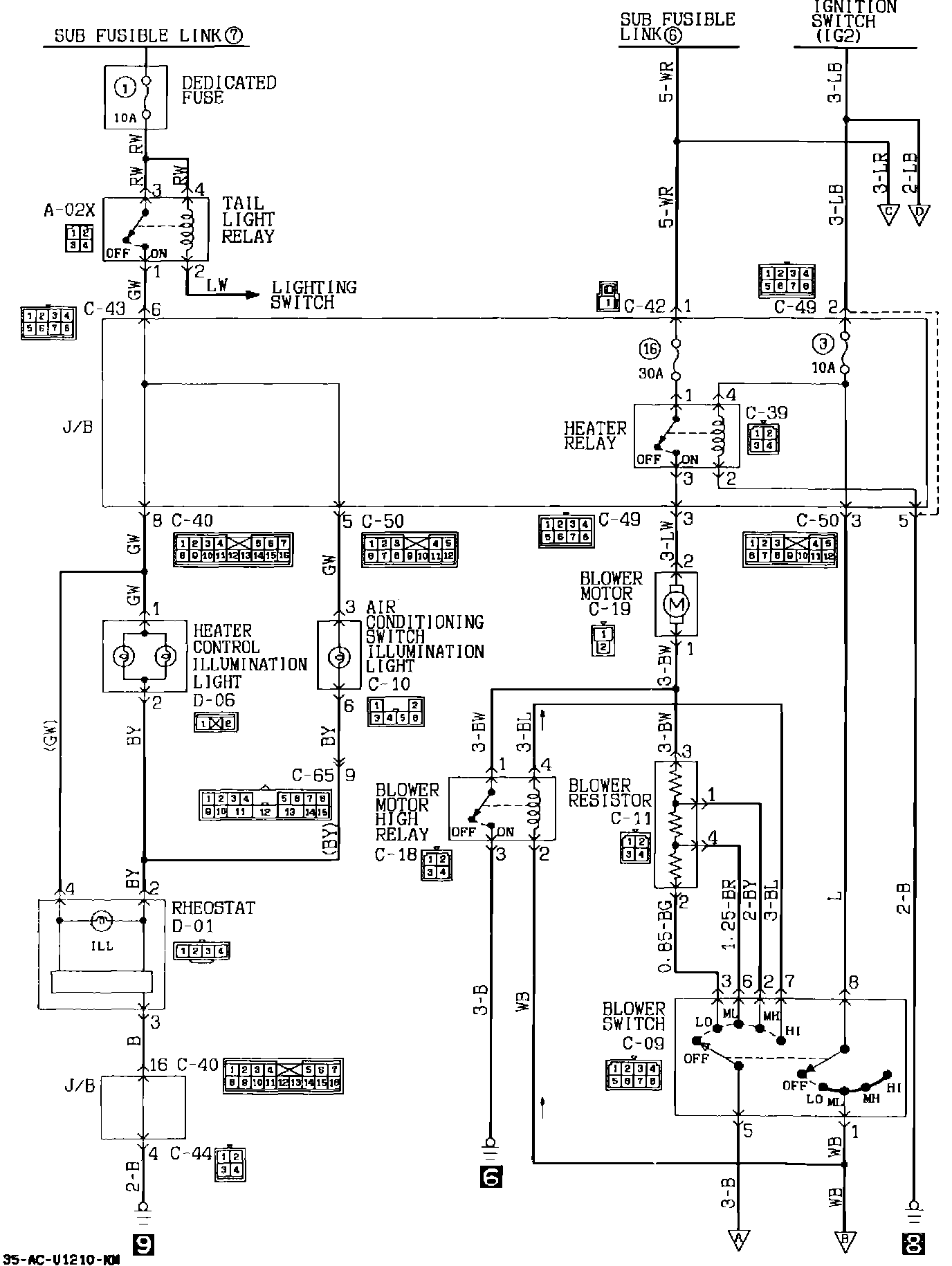

Air Conditioner:

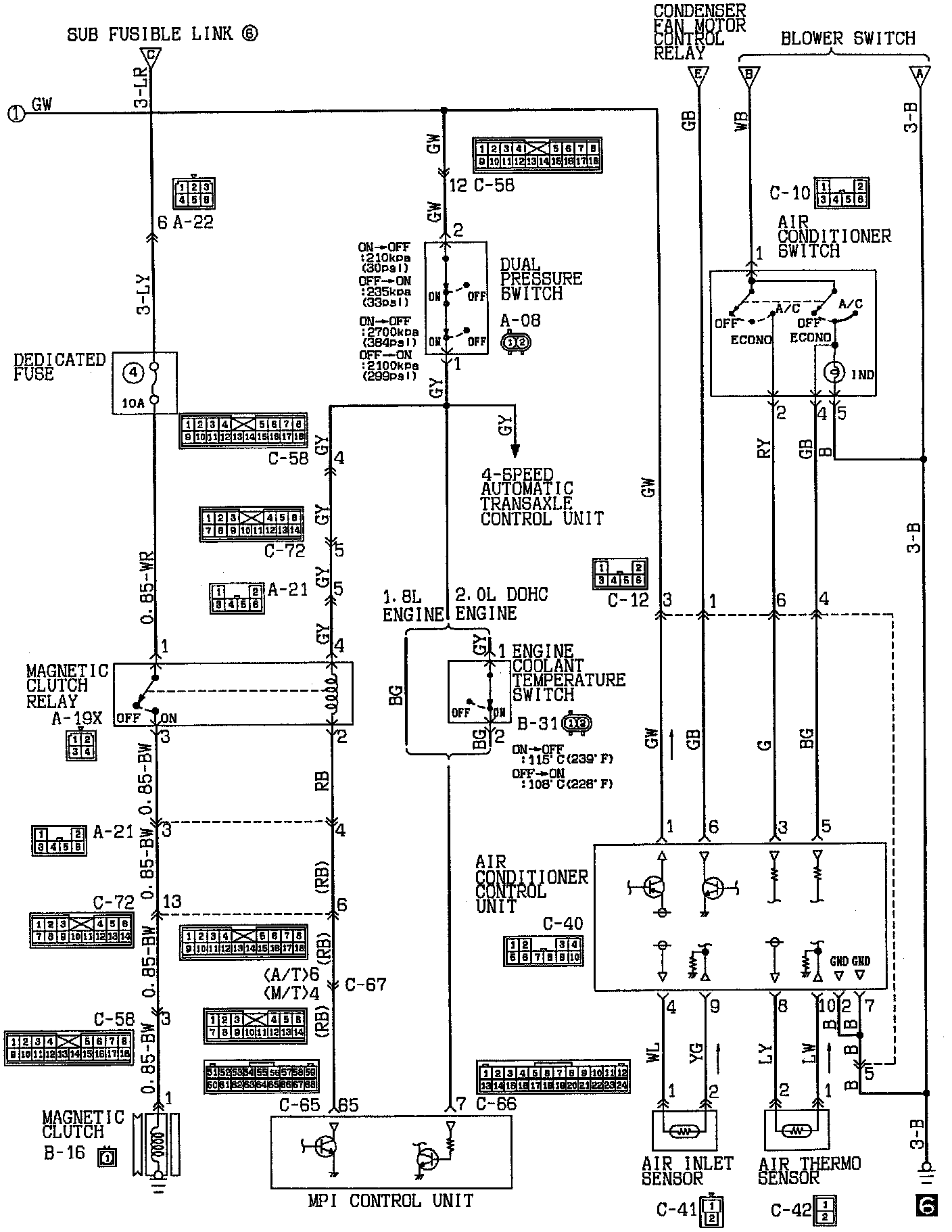

Air Conditioner:
