Electrical Diagrams

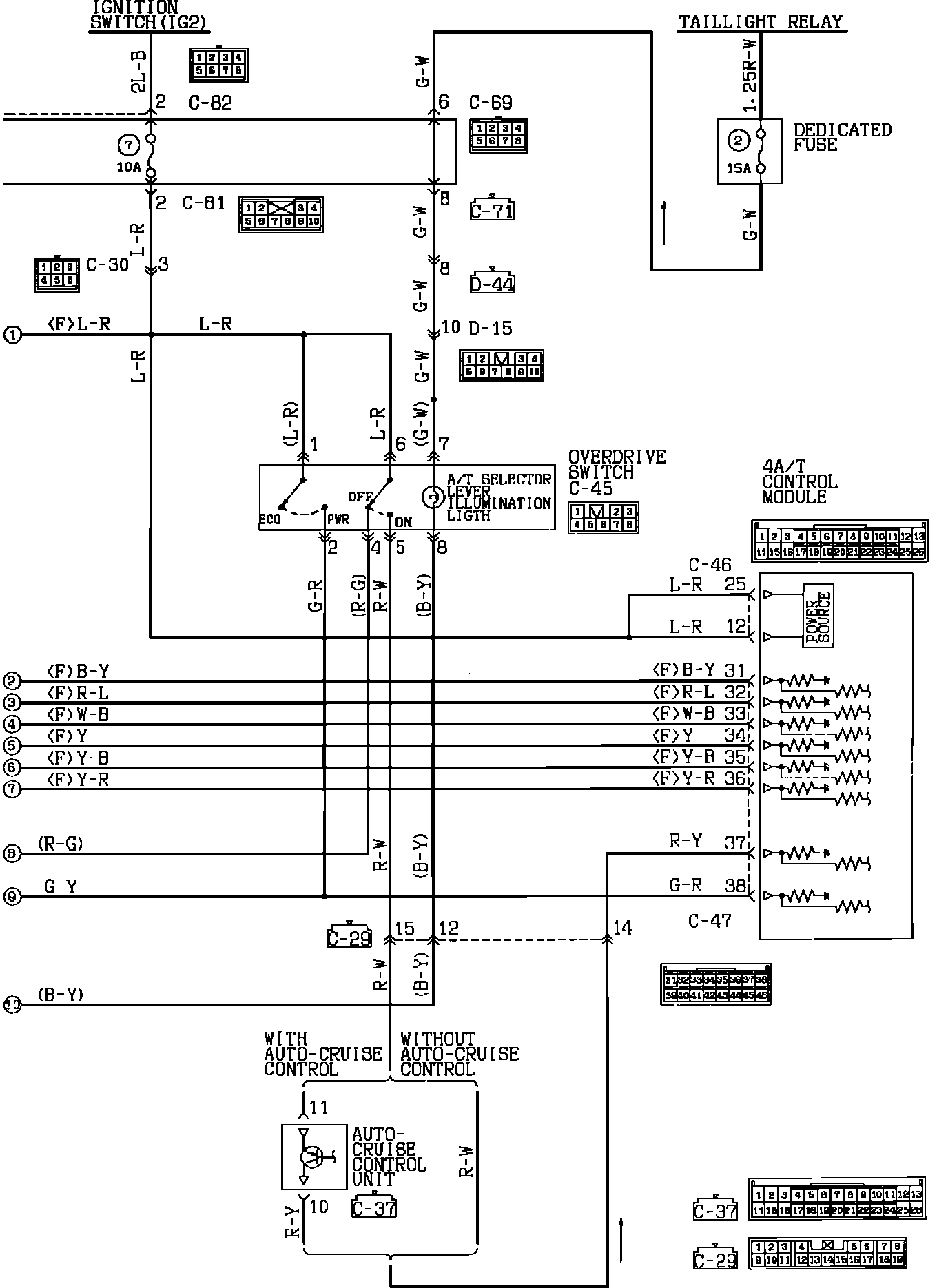

ELC-4 A/T:

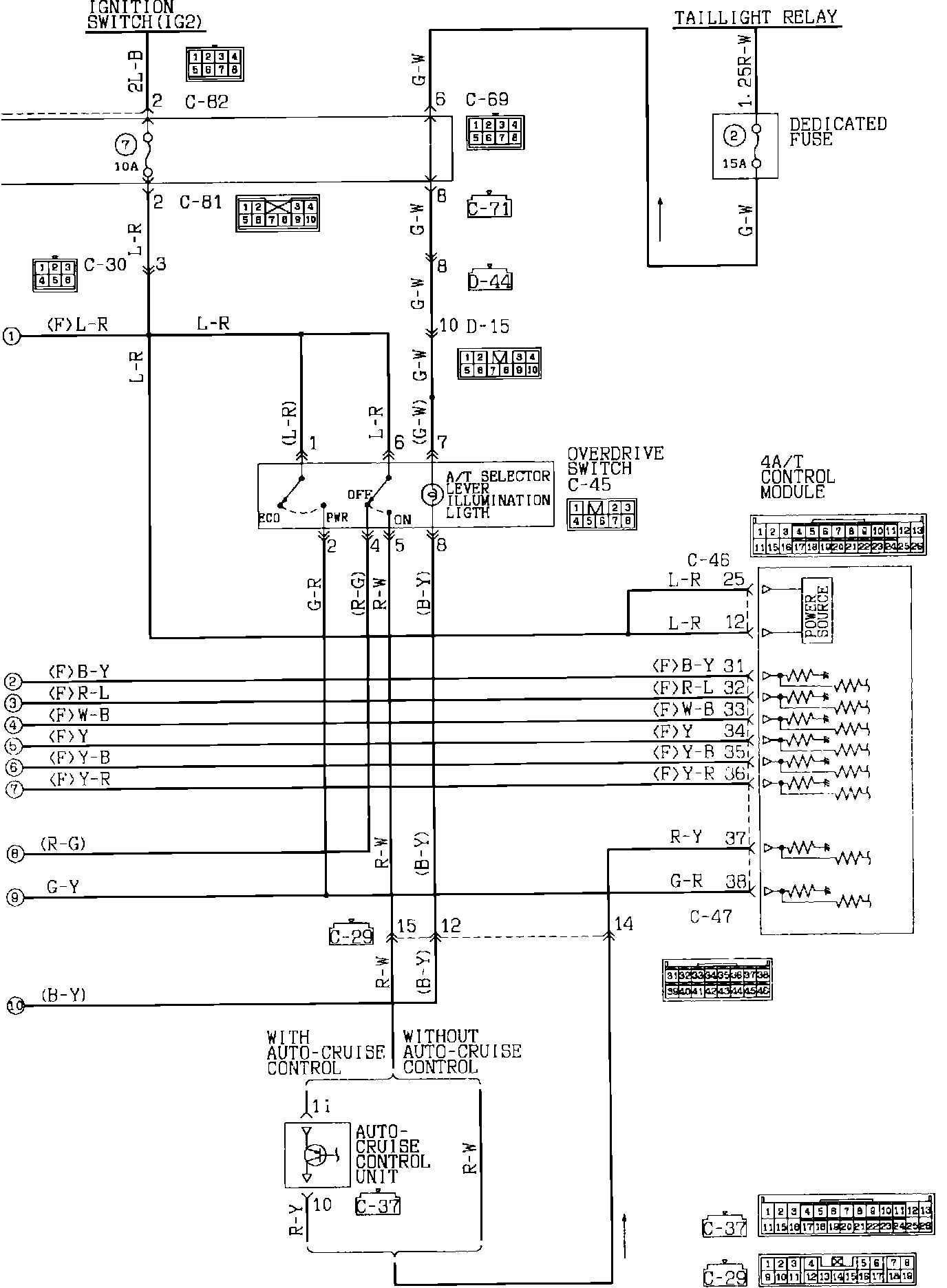

ELC-4 A/T:

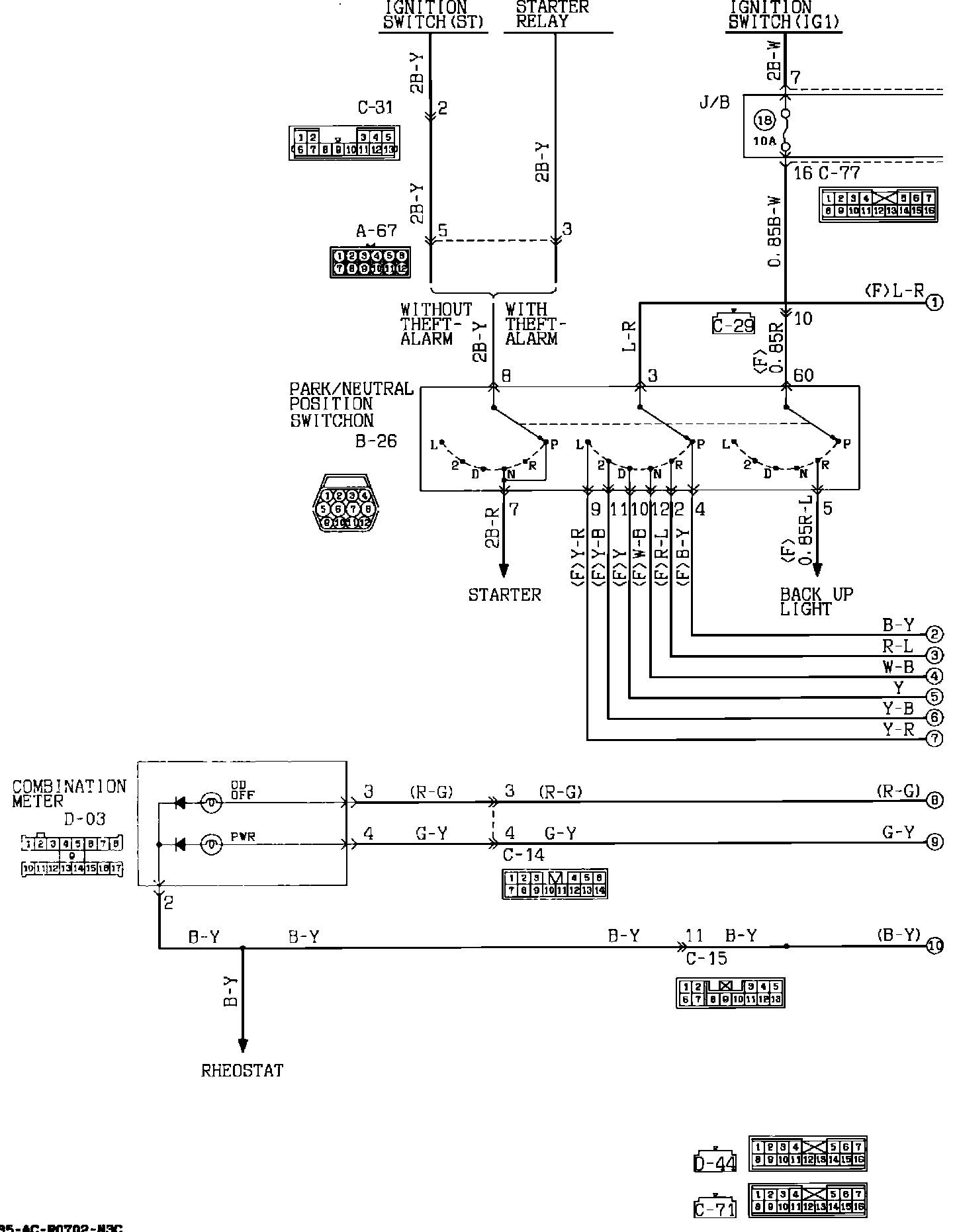

ELC-4 A/T:

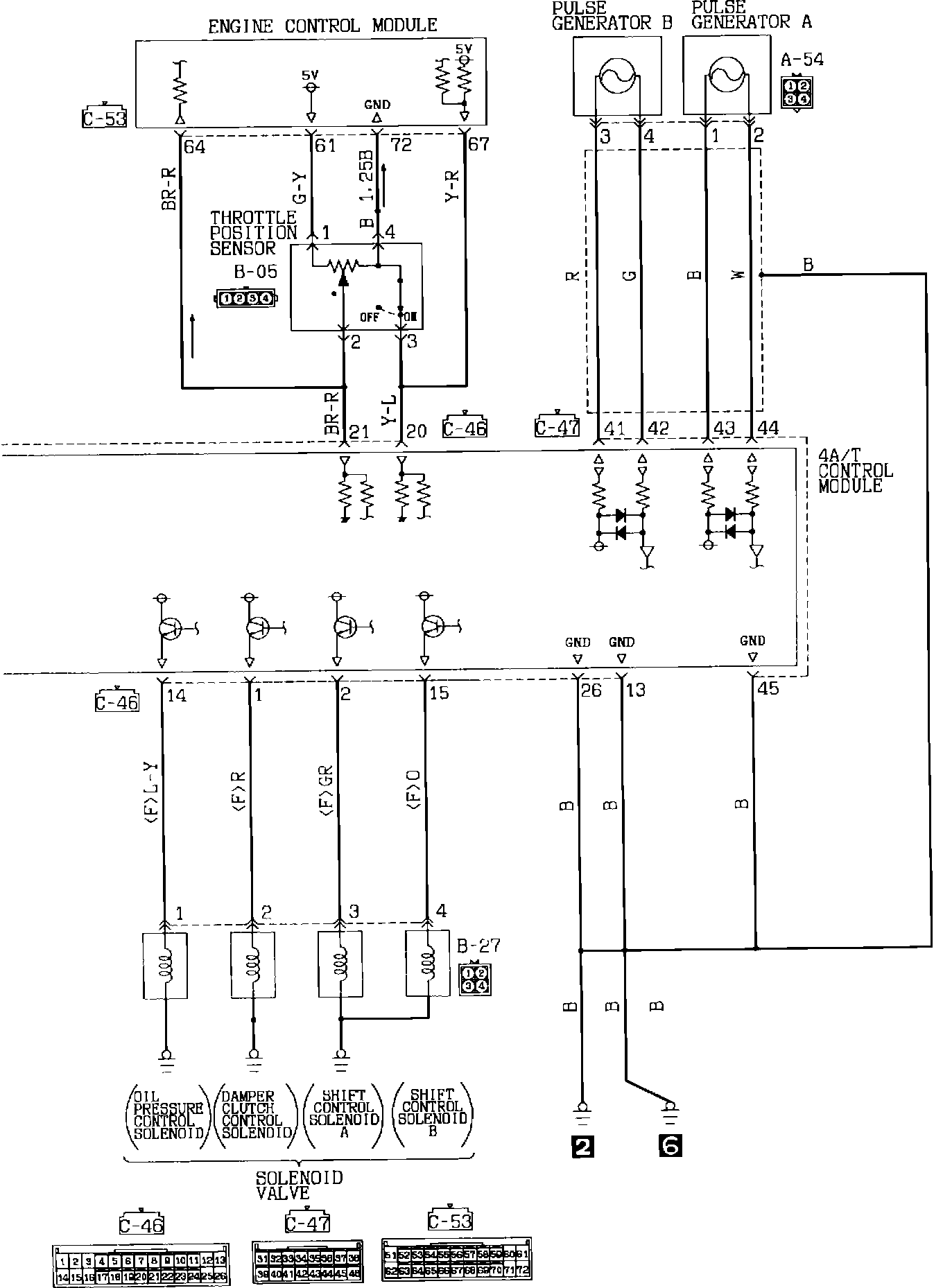

ELC-4 A/T:

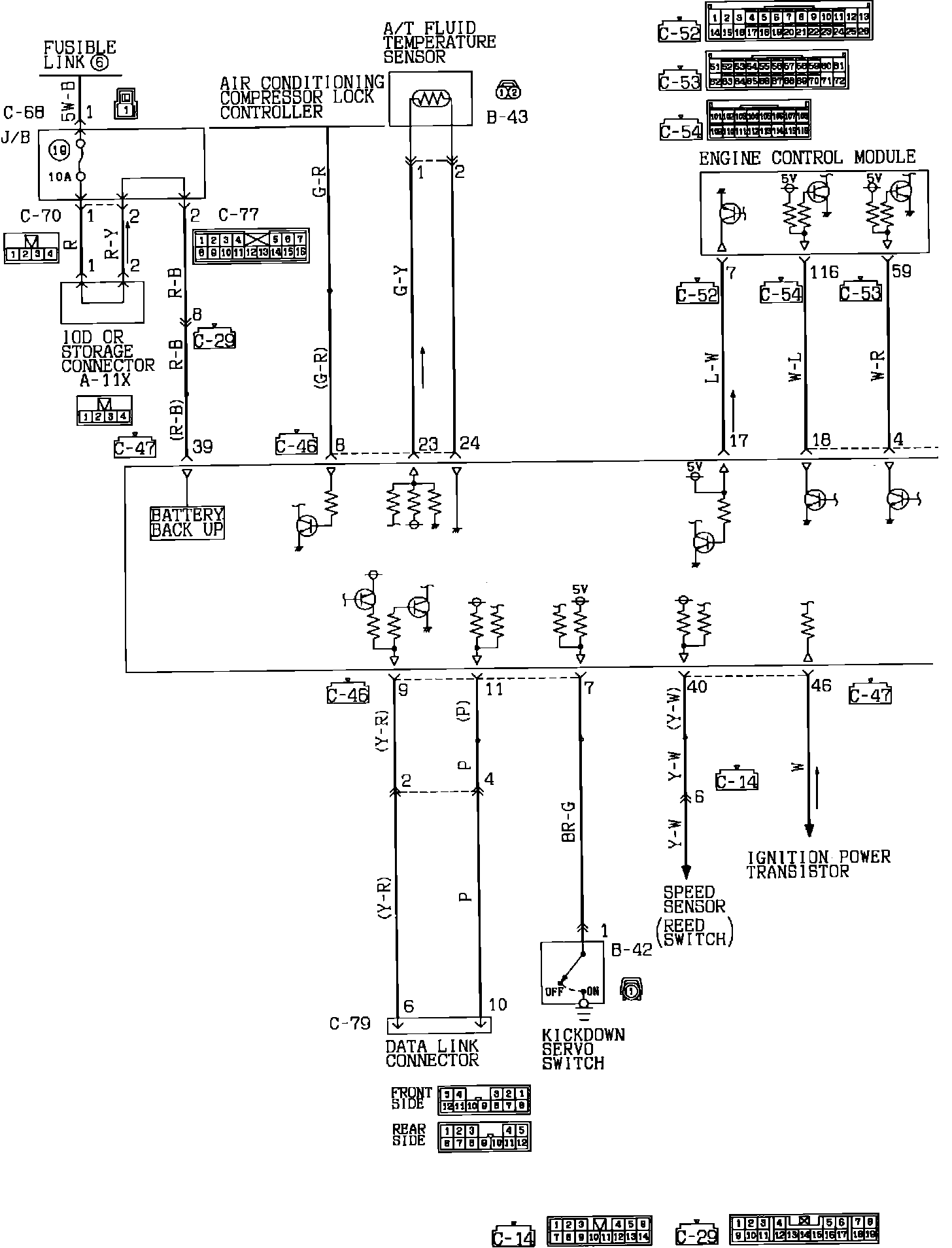

Transmission Controls Circuit Diagram:

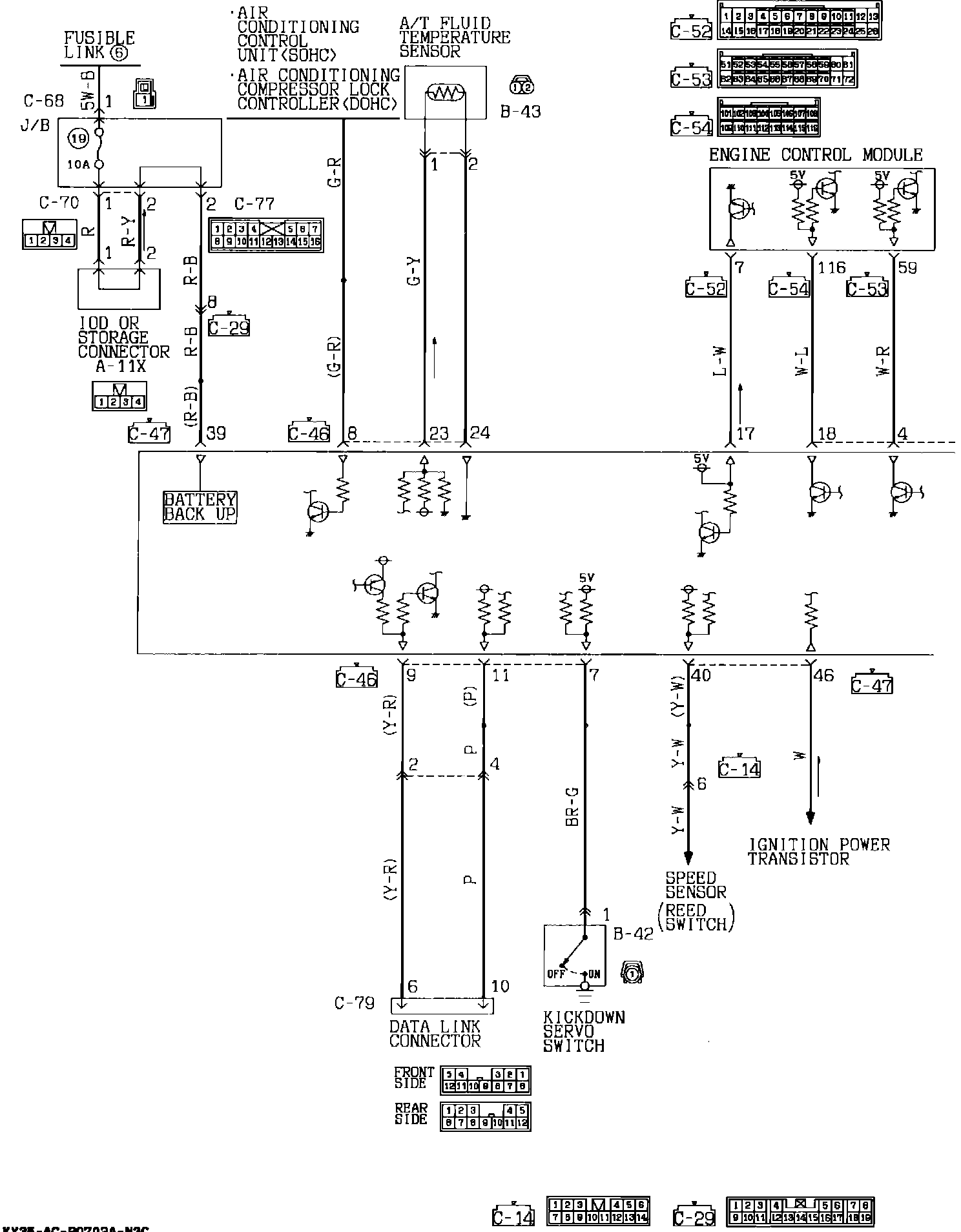

Transmission Controls Circuit Diagram:

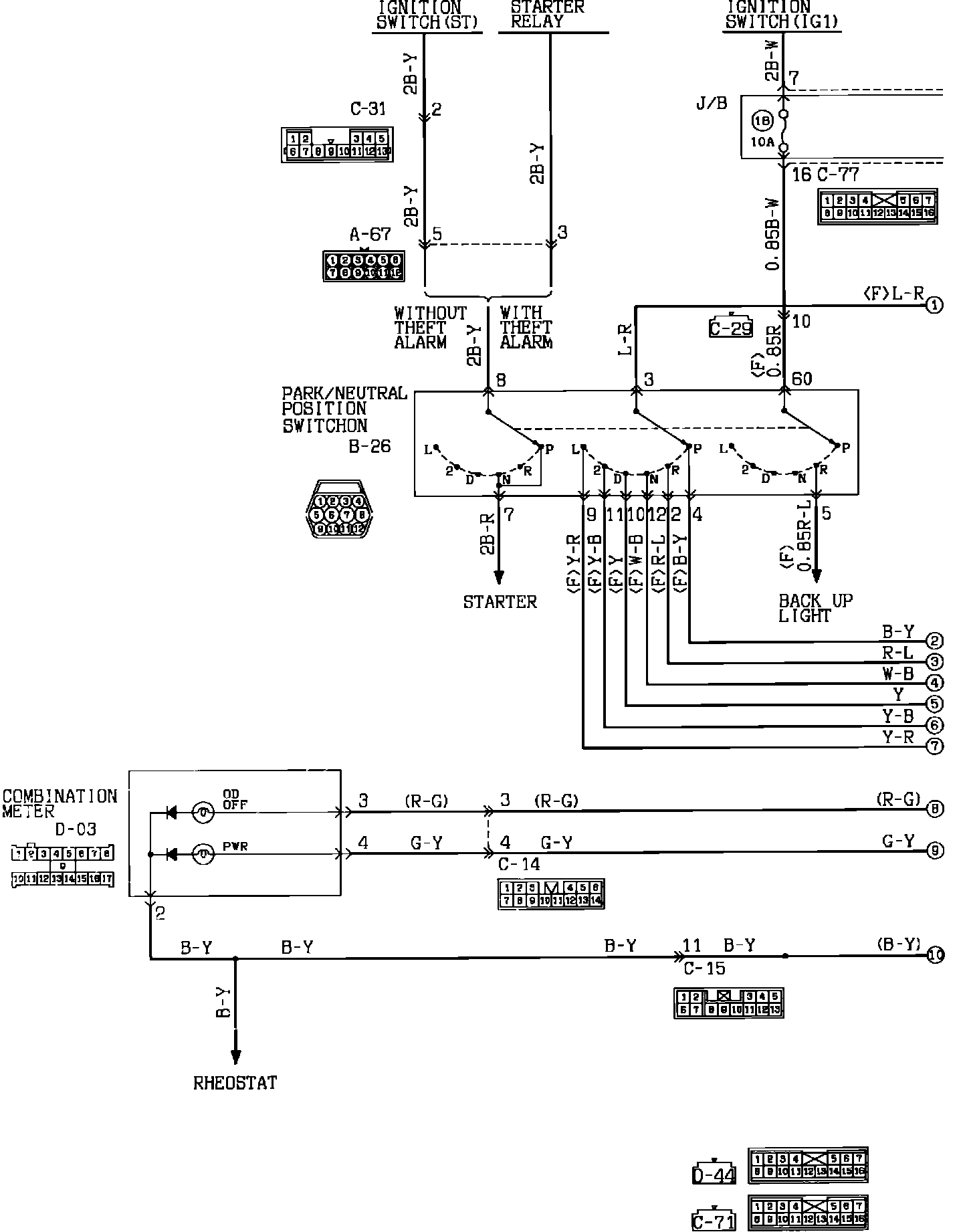

Transmission Controls Circuit Diagram:



Transmission Controls Circuit Diagram:
