Wiring Diagrams

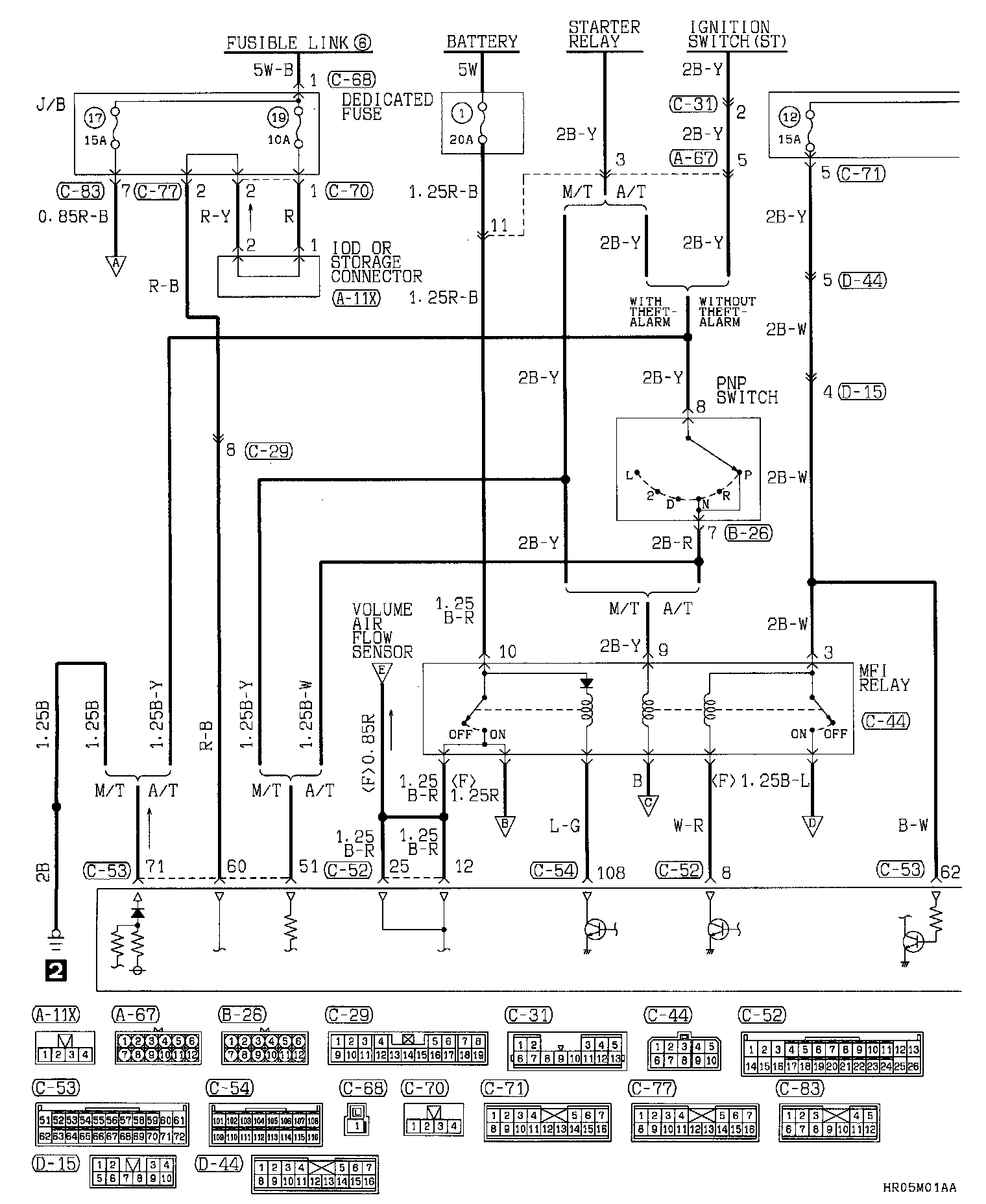

MFI Circuit - Part 1 Of 6:

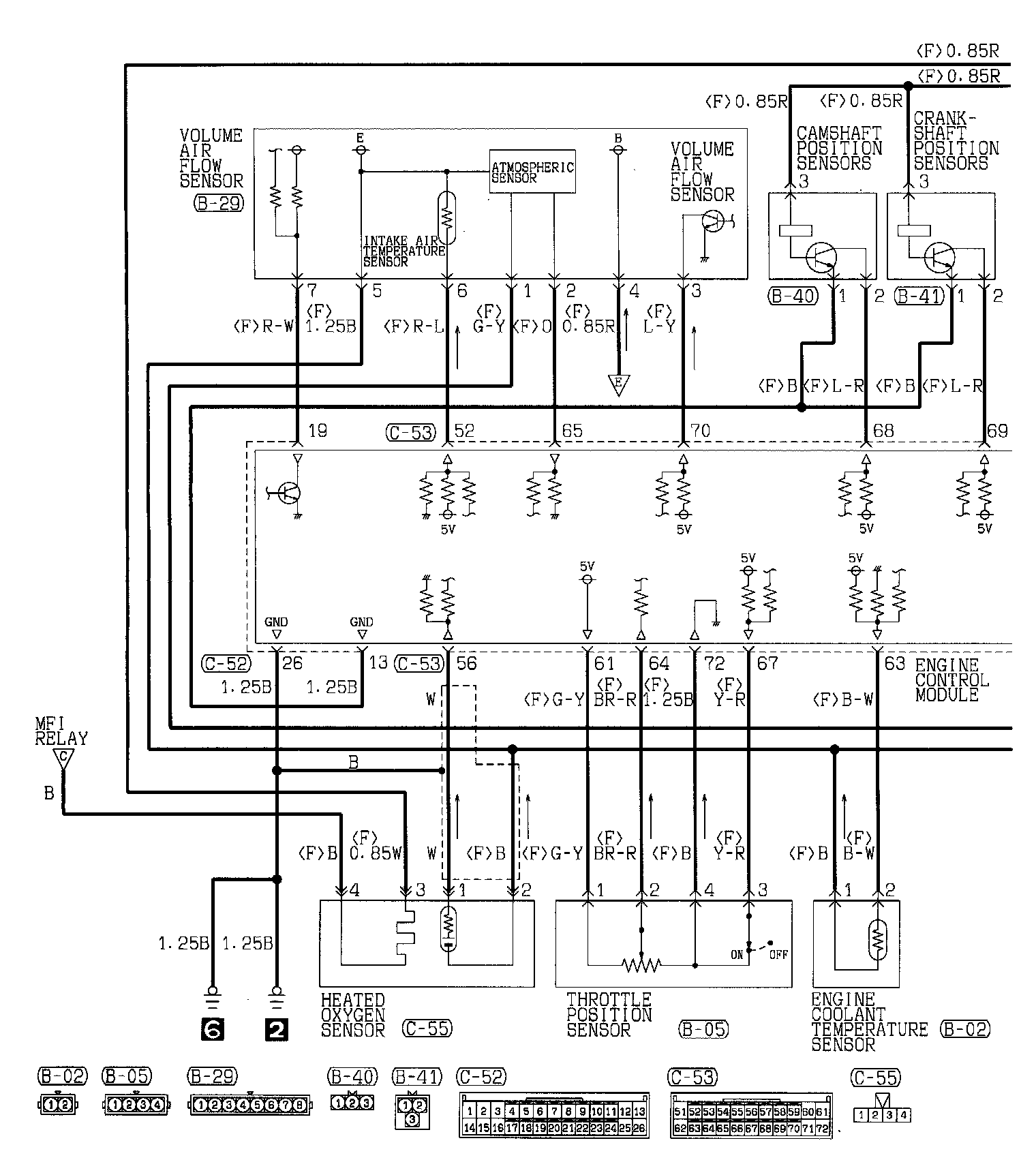

MFI Circuit - Part 2 Of 6:

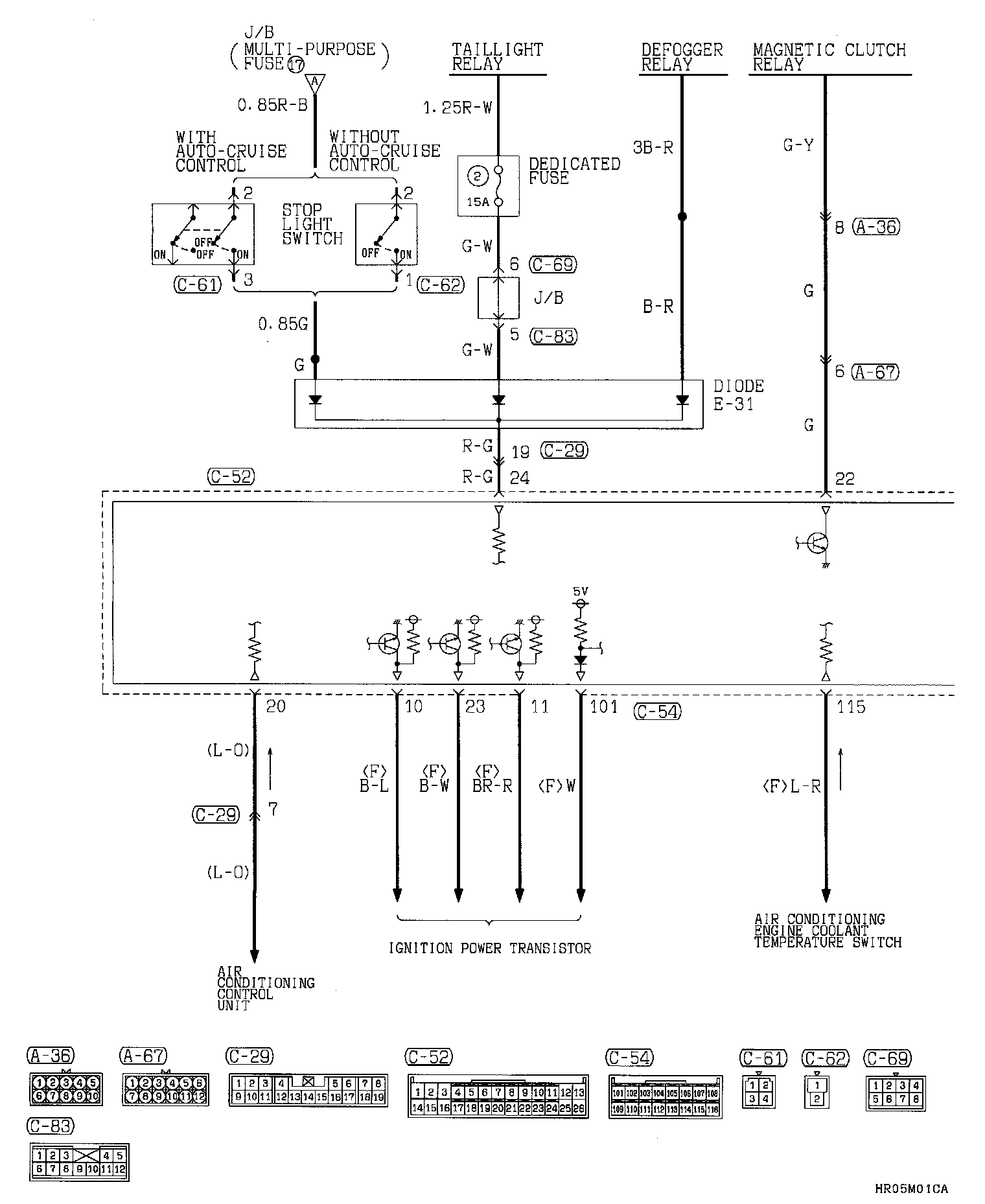

MFI Circuit - Part 3 Of 6:

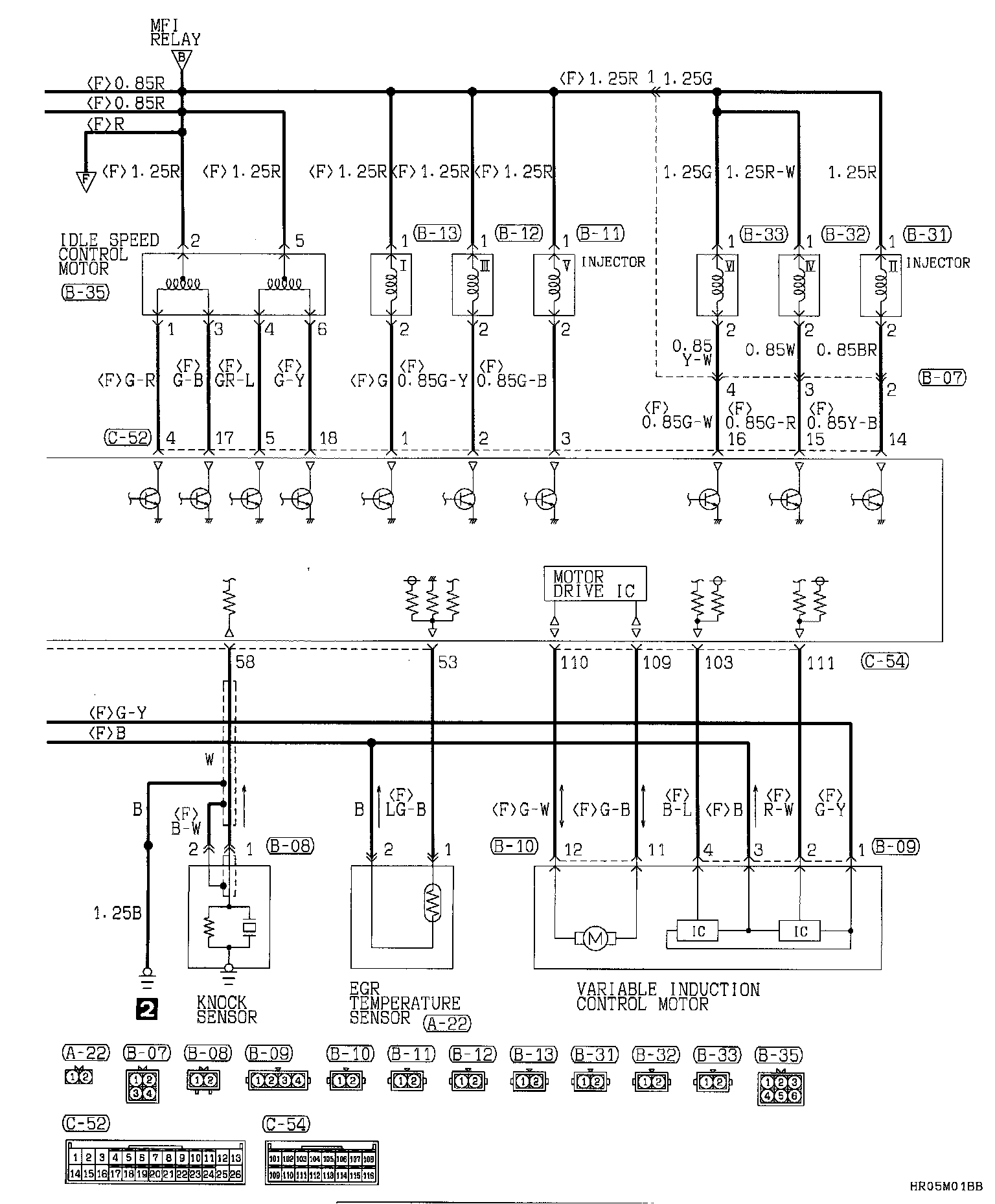

MFI Circuit - Part 4 Of 6:



MFI Circuit - Part 5 Of 6:



MFI Circuit - Part 6 Of 6:
