DTC 23

TROUBLESHOOTING PROCEDURES

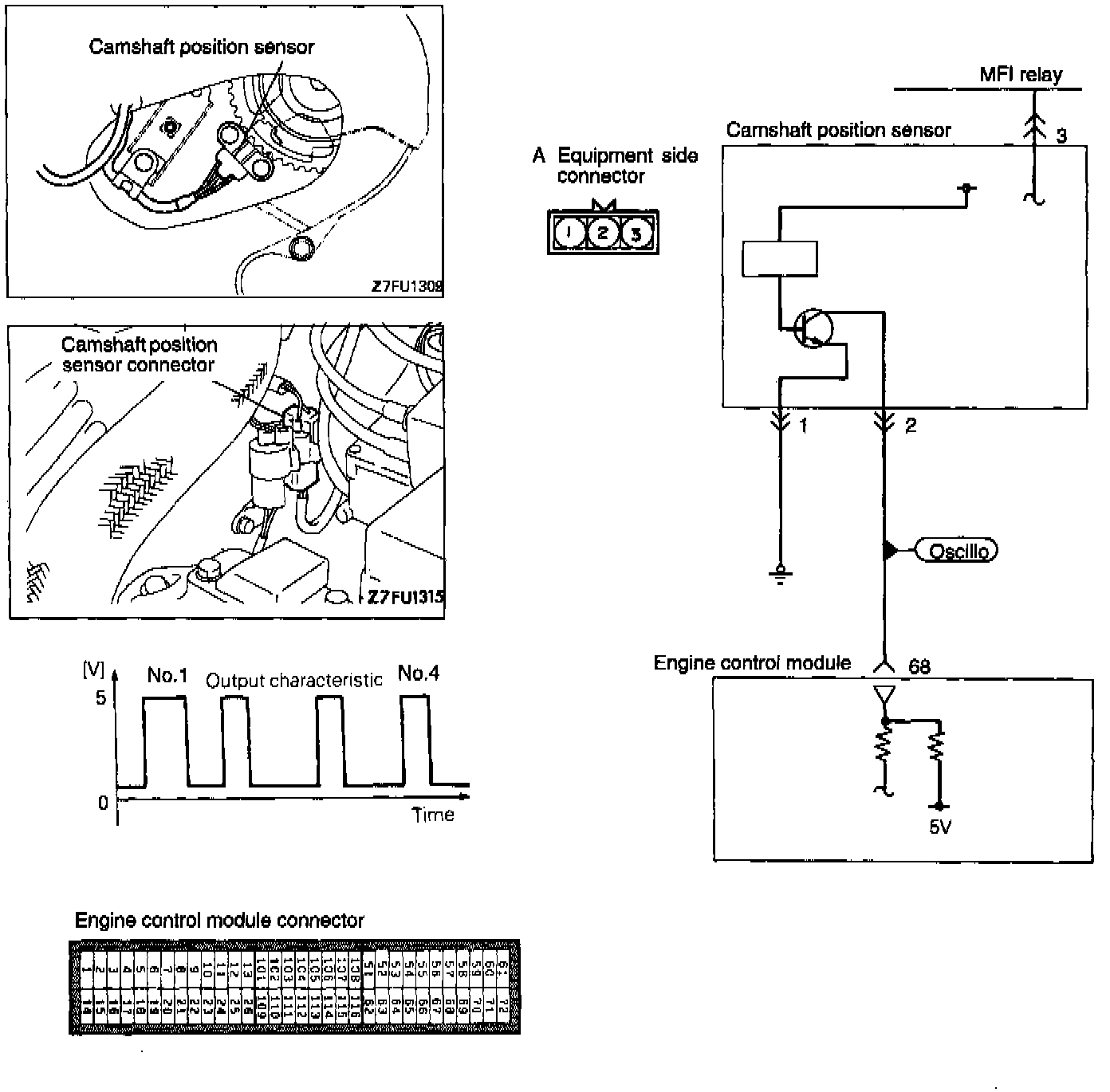

CIRCUIT DIAGRAM

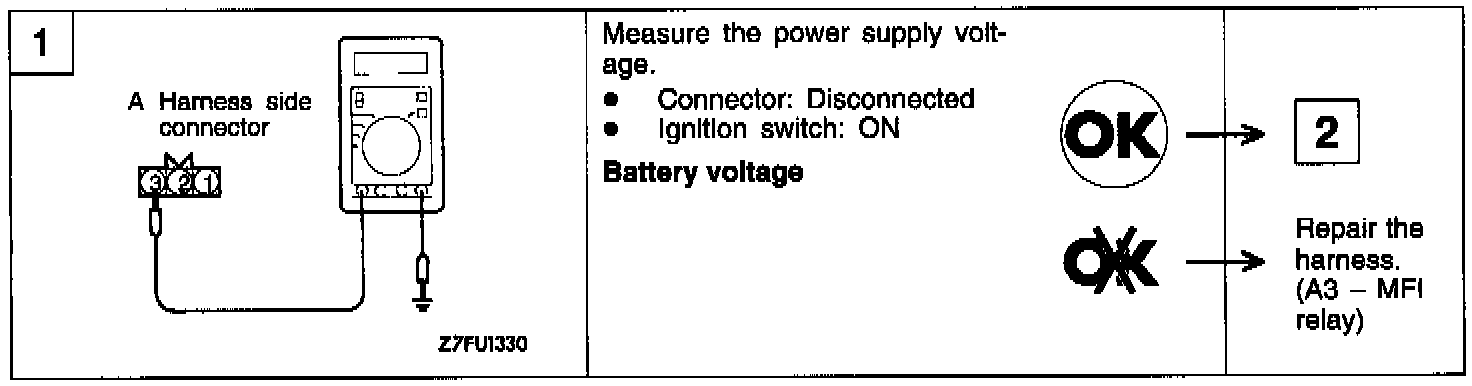

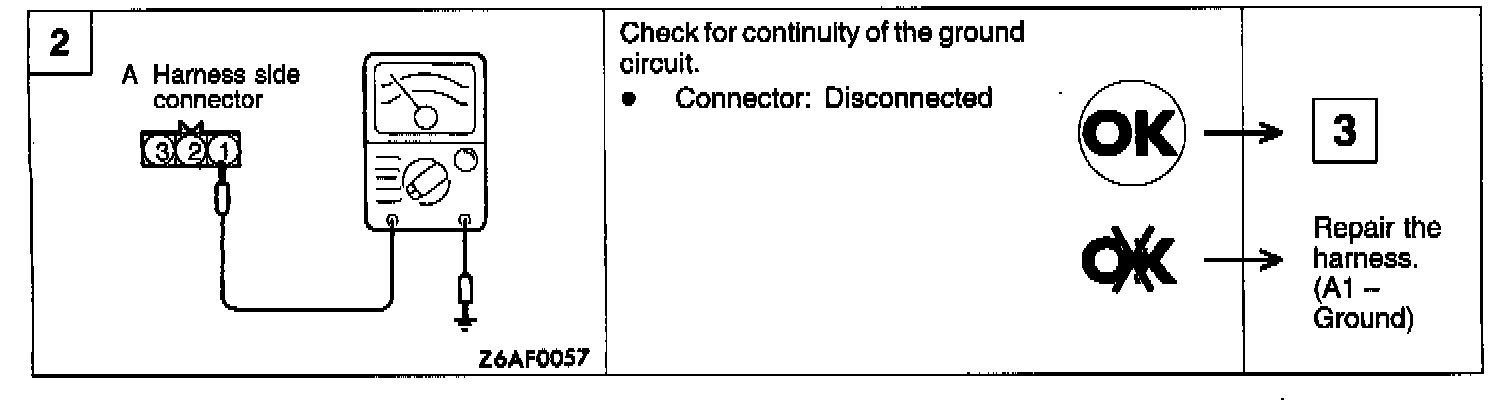

HARNESS INSPECTION PROCEDURE

TROUBLESHOOTING HINTS
Hint 1: If the camshaft position sensor does not function correctly, correct sequential injection is not made so that the engine may stall, run irregularly at idle or fail to accelerate normally.
Hint 2: If the sensor outputs a pulse signal when the ignition switch is turned ON (with the engine not running), a faulty camshaft position sensor or engine control module is suspected.
