Mitsubishi
>>
1992
>>
Galant L4-1997cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fusible Link
>>
Locations
>>

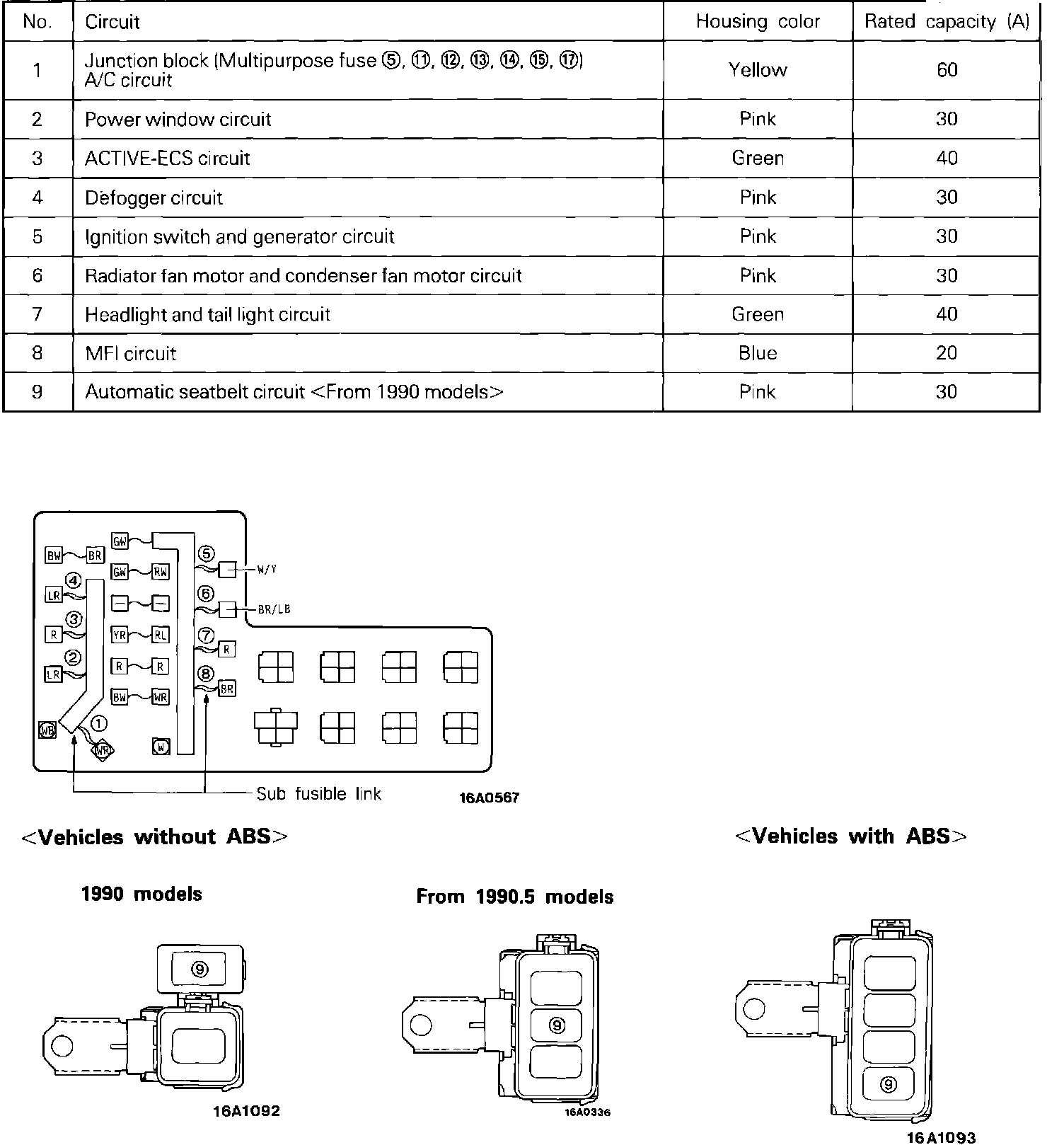

Sub Fusible Link (Engine Compartment)
Sub Fusible Link (Engine Compartment)
Centralized Junction: Sub Fusible Link (Relay Box Inside Engine Compartment, Fusible Link Box):
