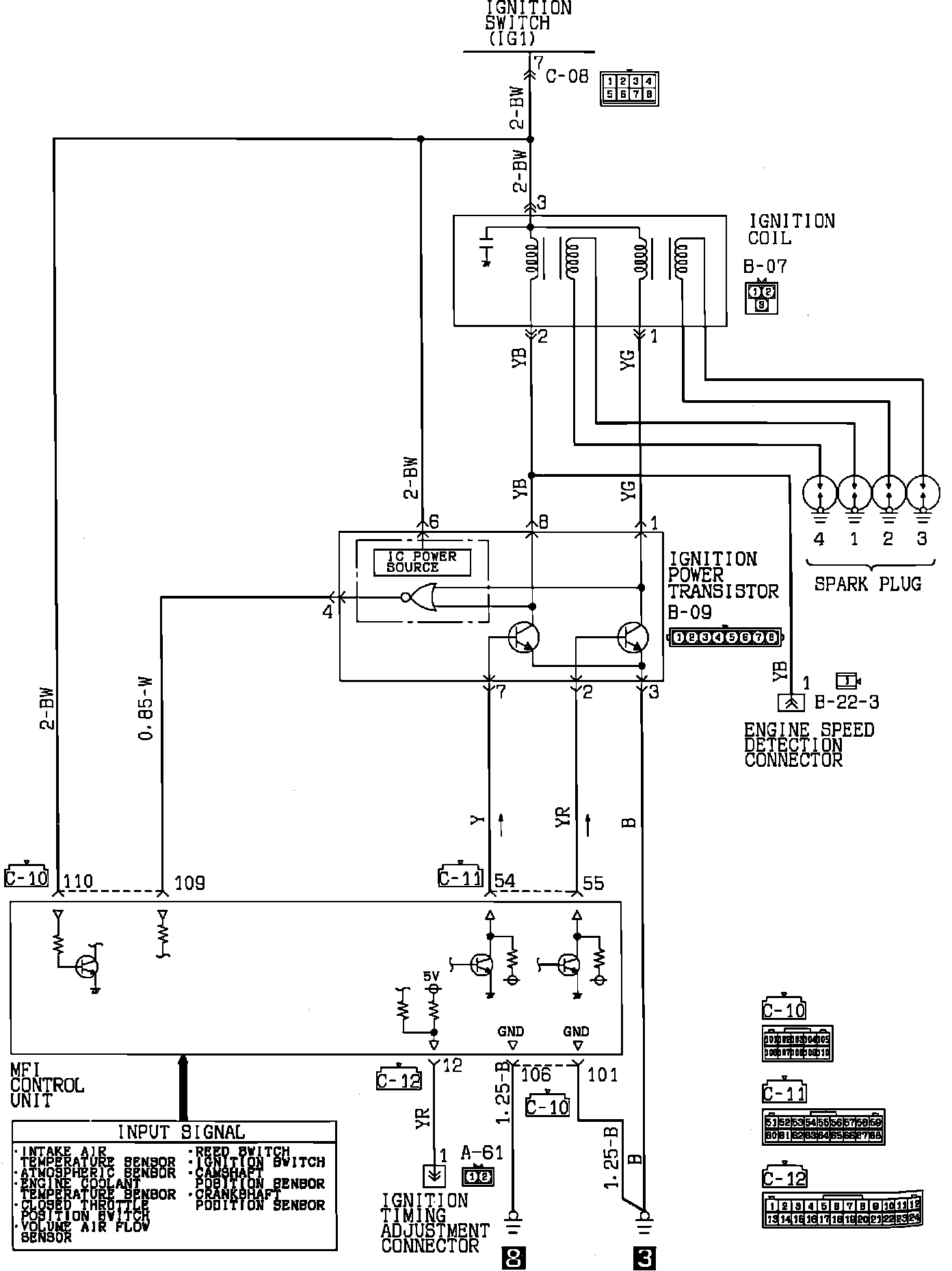

Ignition System Wiring Diagrams

Ignition System:





For additional wiring information refer to CHASSIS ELECTRICAL DIAGRAMS.
