Power Door Lock Relay: Locations




Centralized Junction: Centralized Relay:

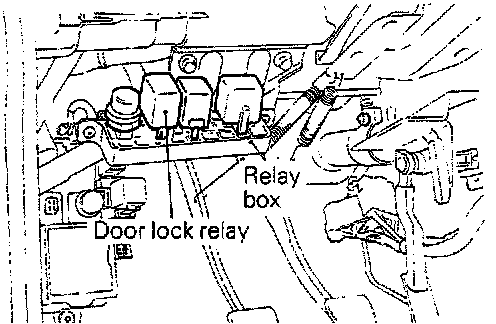

RELAY BOX LOCATION

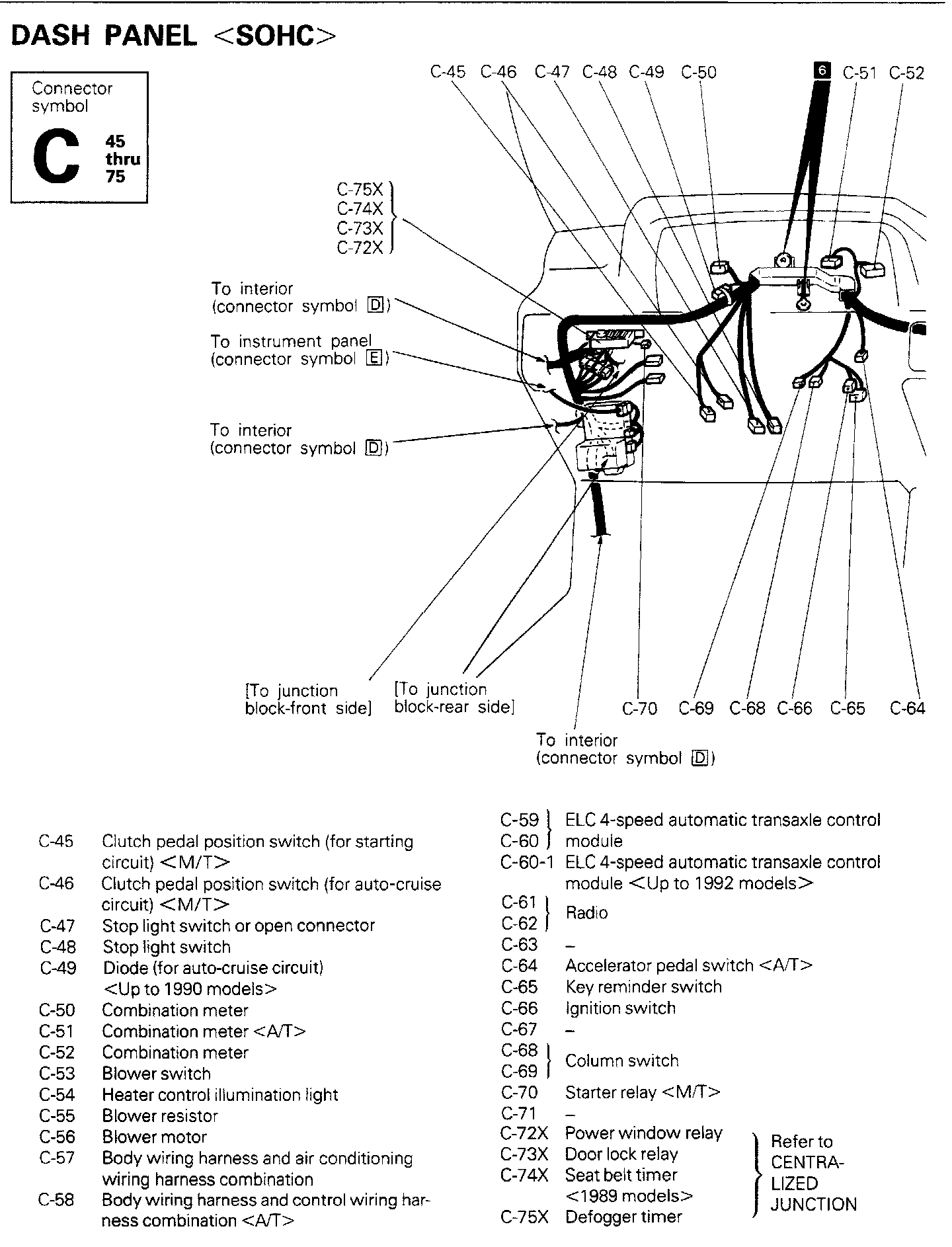

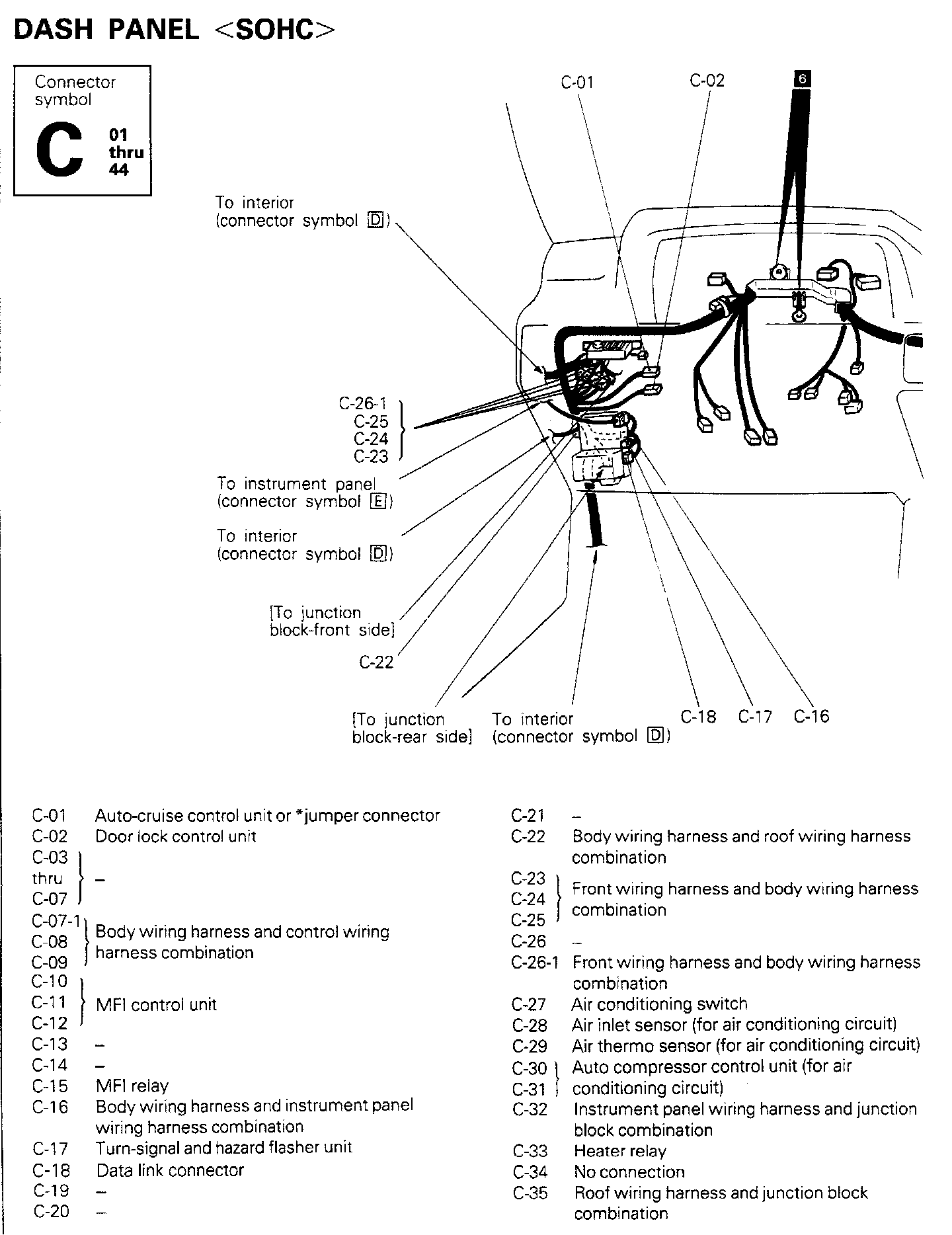

SOHC

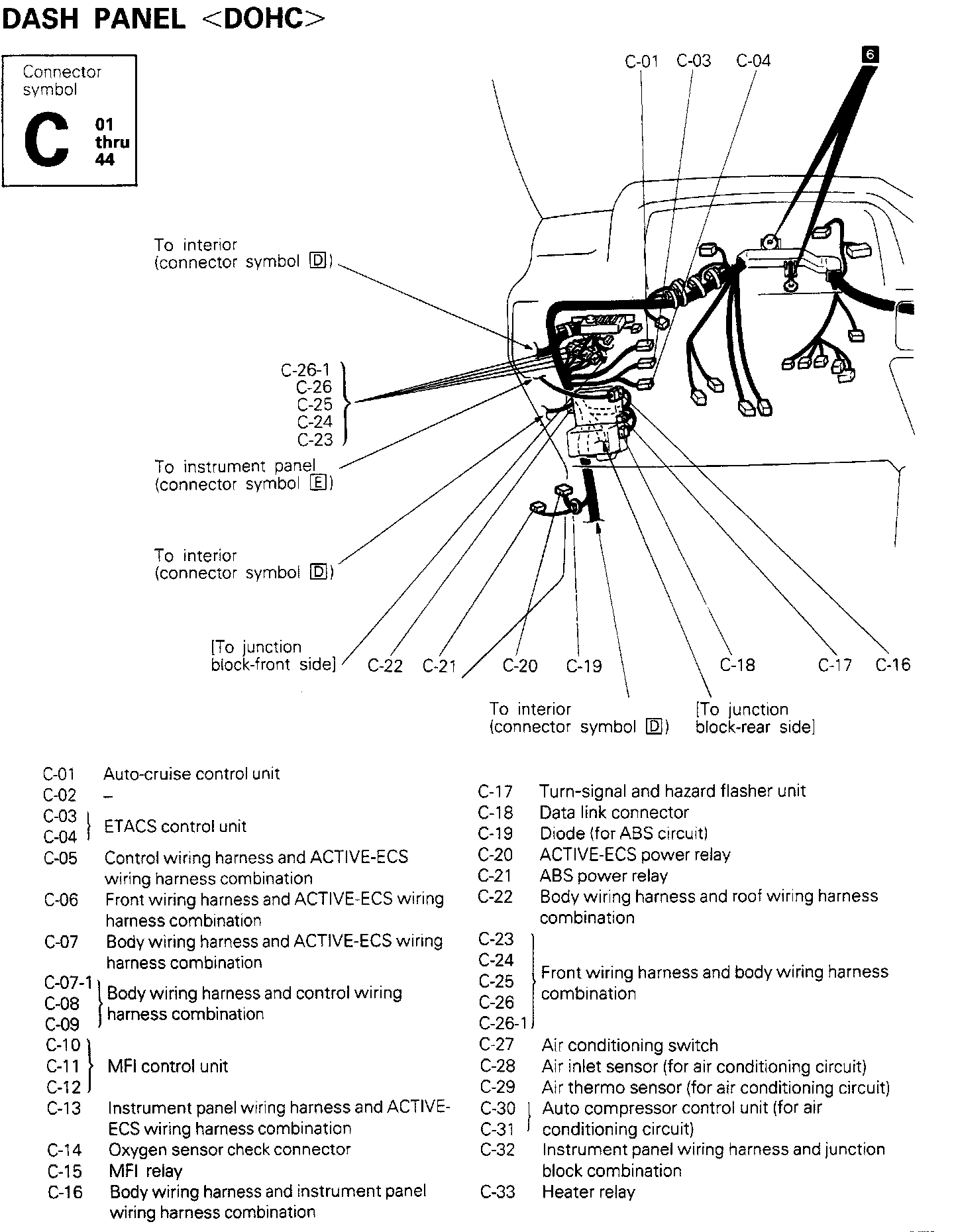

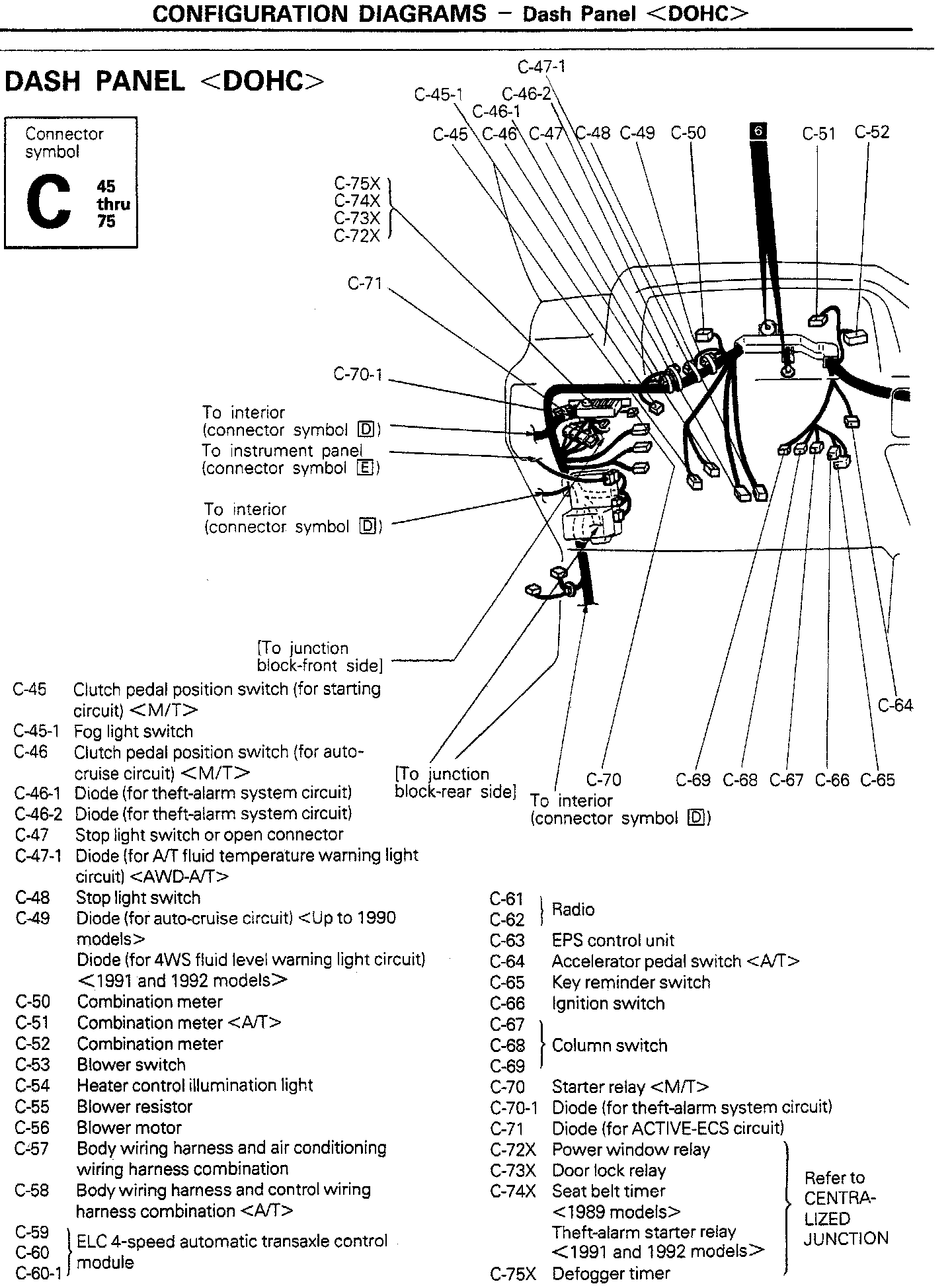

DOHC
