Rear Window Wiper Switch Replace

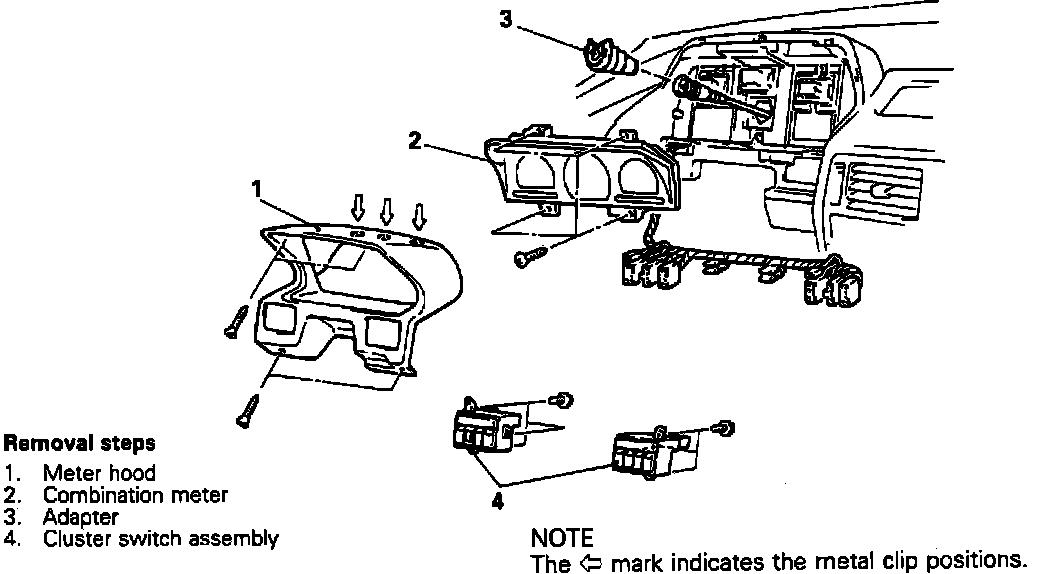

Fig. 4 Removing Cluster & Cluster Switch:

1. Disconnect battery ground cable.
2. Remove instrument cluster hood, Fig. 4.
3. Remove cluster switch retaining screws.
4. Pull cluster switch toward rear of vehicle and disconnect electrical connectors.
5. Remove switch from vehicle.
6. Reverse procedure to install.
