Wipers - Arm Assembly Specification Revision
NO.: TSB-92-51-002DATE: August, 1992
MODEL: 1992 Expo, 1992 Expo LRV
[TSB Revision TSB-92-51-002]
SUBJECT:
WIPER ARM ASSEMBLY SPECIFICATION - SERVICE MANUAL REVISION
PURPOSE
This bulletin changes the windshield wiper arm installation (B) specification for vehicles manufactured after August 19, 1991. The new passenger side wiper arm "outer" edge specification (B) is: 40 mm +/- 5 mm (1.57 +/- 0.20 in.).
As shown in this bulletin please make the indicated service manual revisions and as reference to this bulletin please write this TSB number in the TSB revision box on the affected service manual page.
AFFECTED SERVICE MANUAL
1992 Expo/Expo LRV, volume 1, page 51-21.

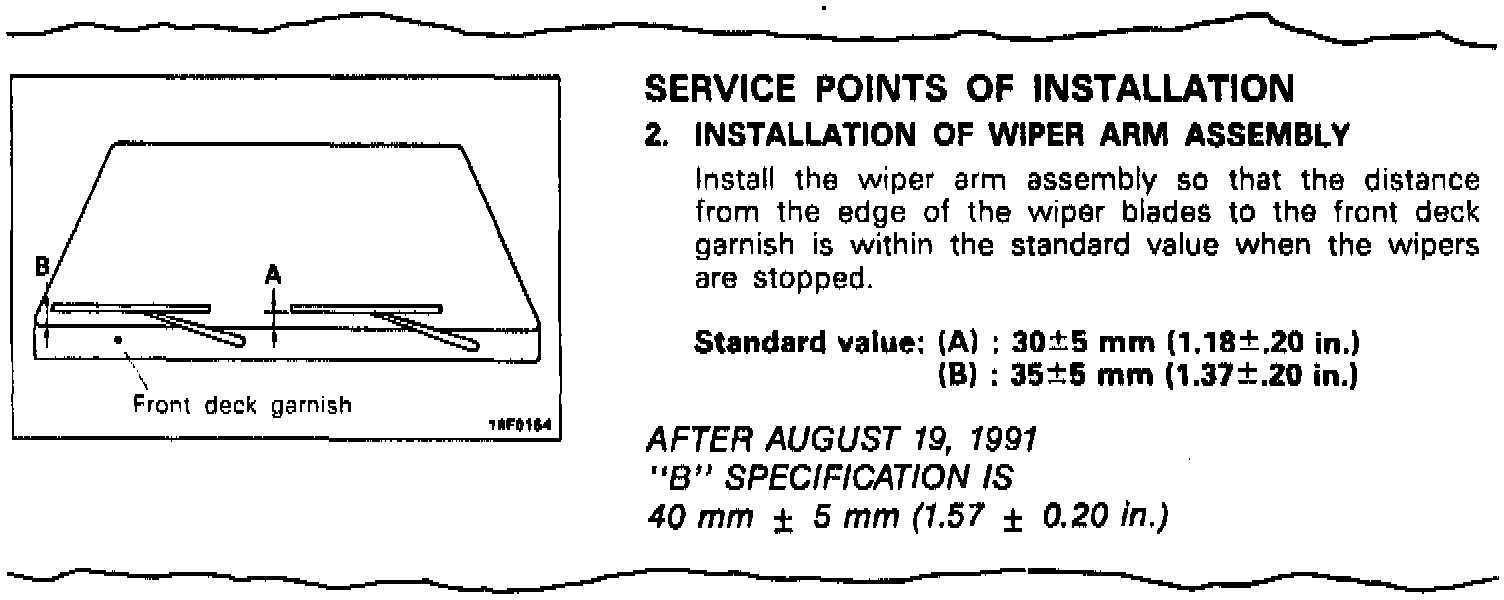

SERVICE MANUAL CHANGES
As shown, please write in: "AFTER AUGUST 19, 1991 "B" SPECIFICATION IS 40 mm +/- 5 mm (1.57 +/- 0.20 in.)."
