Neutral Safety Switch: Locations

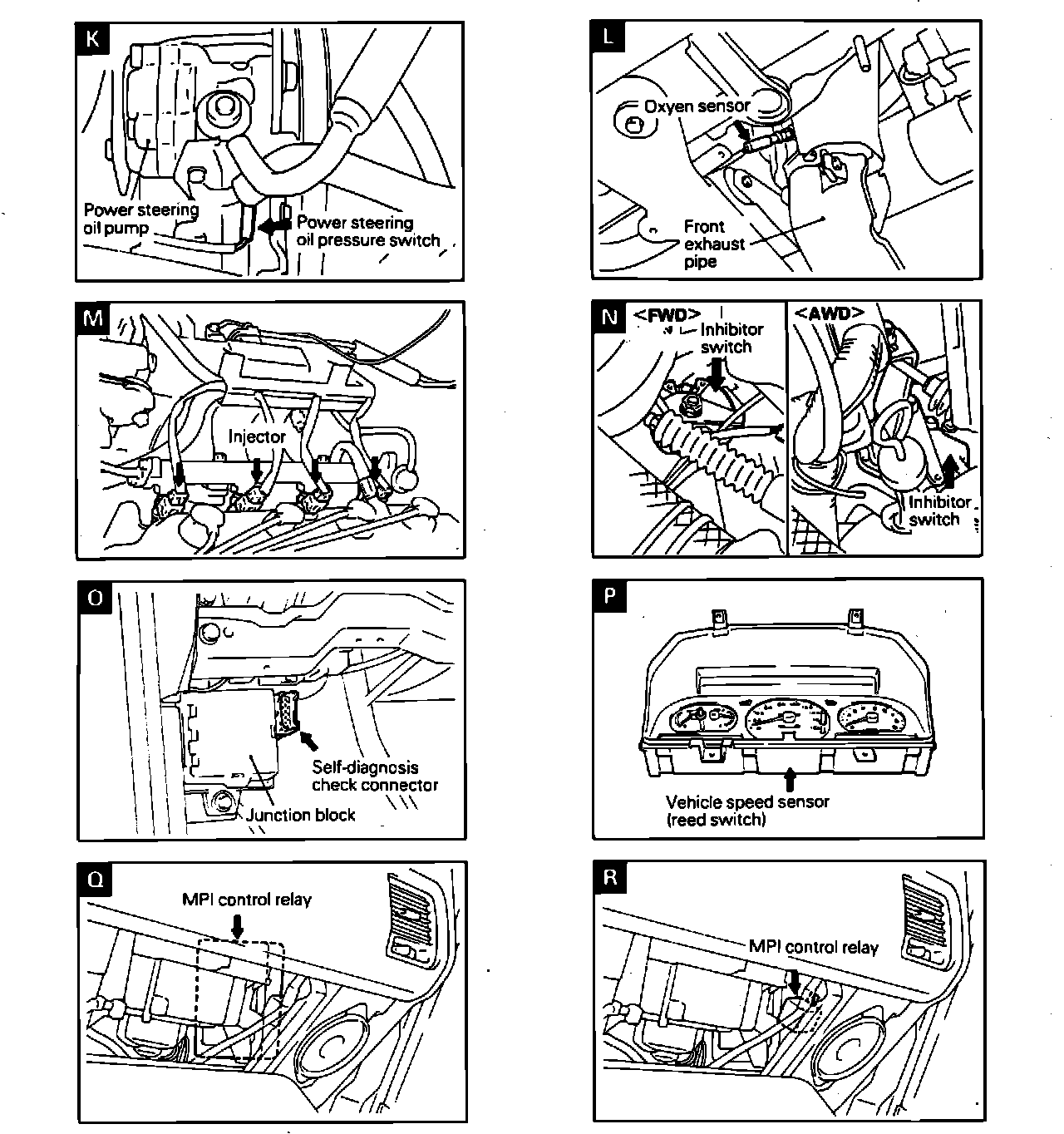

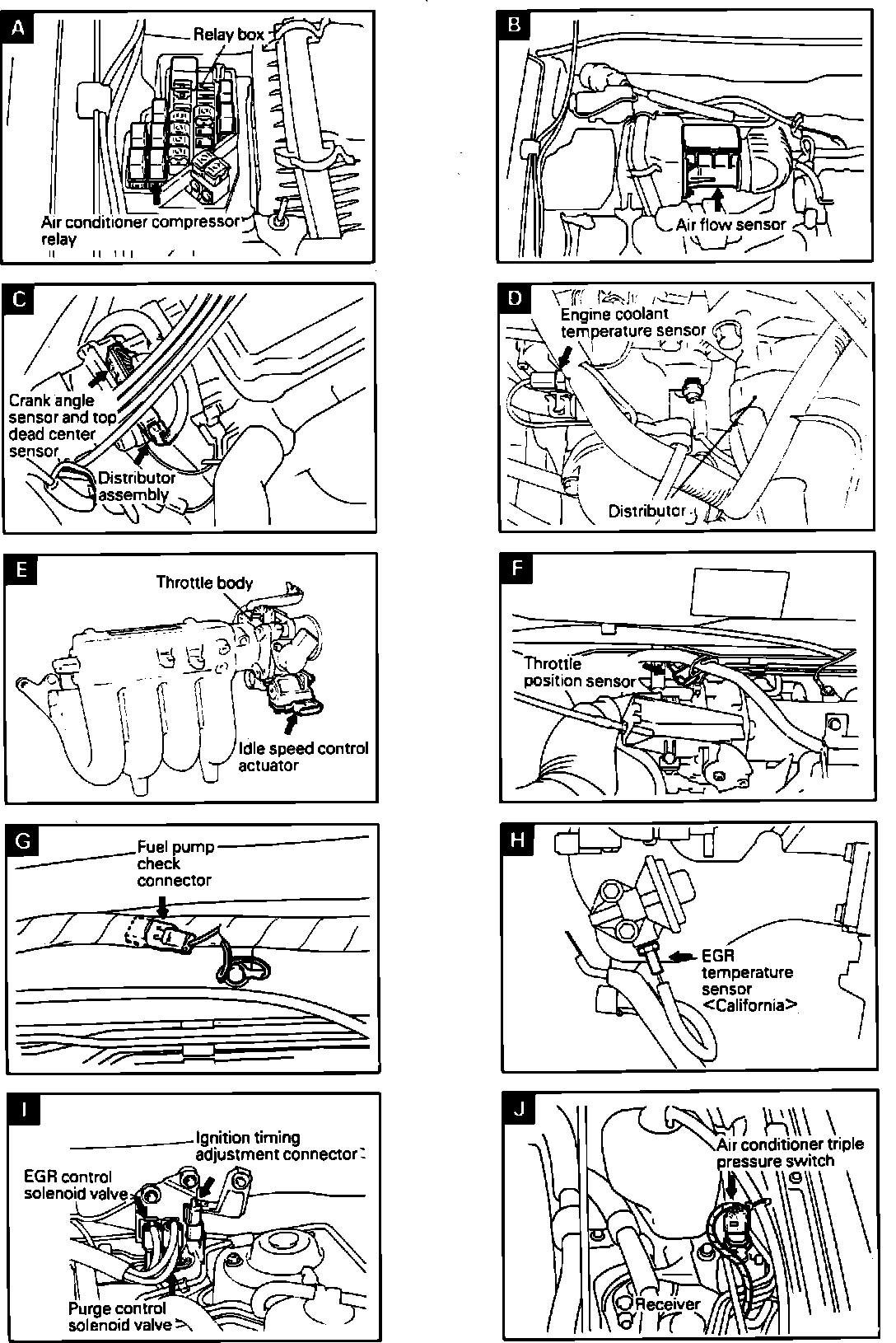

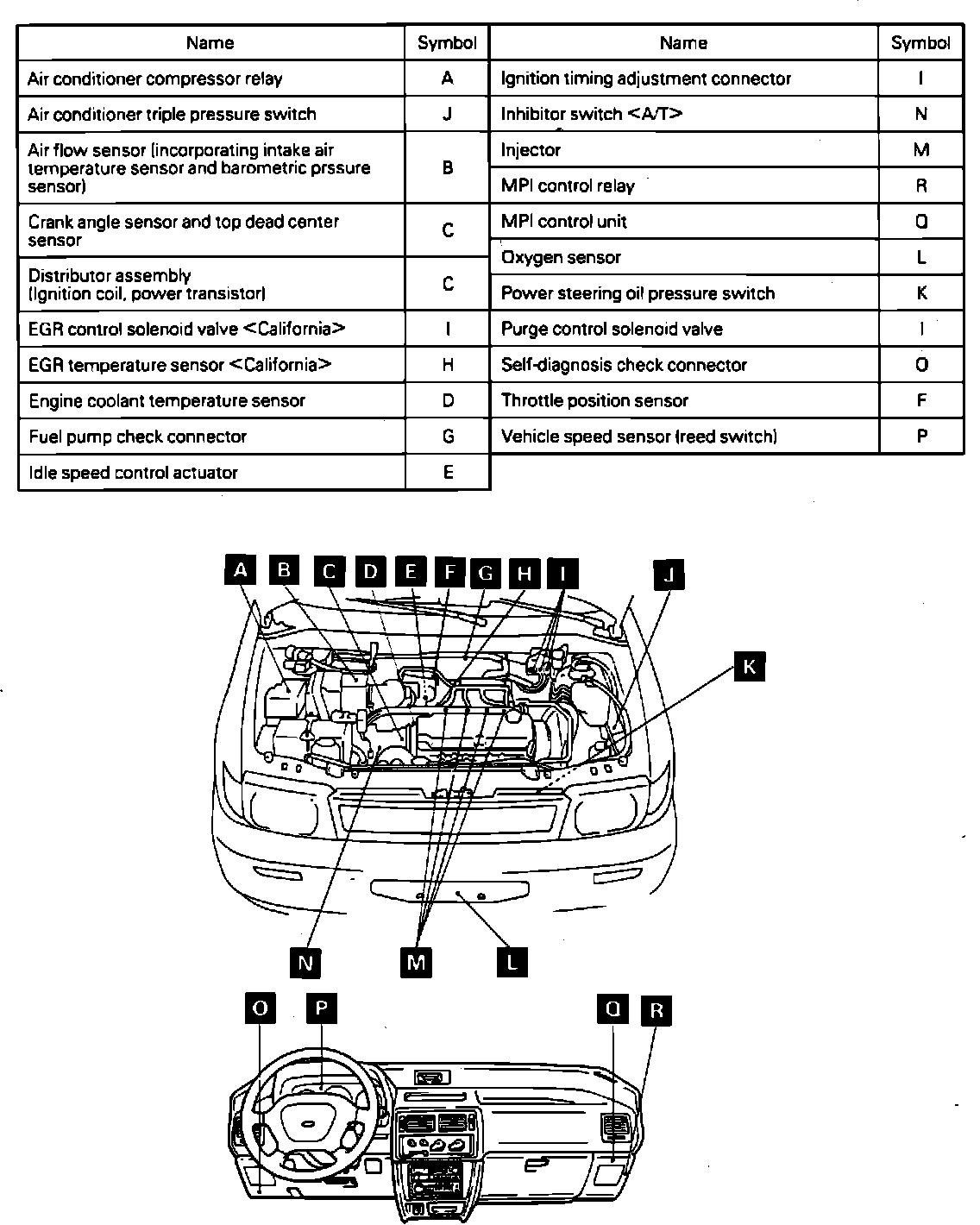

Fuel Injection System Component Locations (Part 1 Of 3).:

Fuel Injection System Component Locations (Part 1 Of 3).:

Fuel Injection System Component Locations (Part 1 Of 3).:

Top Front Of Transaxle

Applicable to: LRV
