A/C - Refrigerant Capacity Correction

9229mitsubishi02

NO. TSB-91-55-013

DATE October, 1991

MODEL 1992 Expo


SUBJECT:

A/C REFRIGERANT CAPACITY


This bulletin replaces ATIN # 91-00-002


PURPOSE

This Technical Service Bulletin corrects the refrigerant capacity shown in the Expo A/C Installation manual. The correct capacity is 850g (30 oz). The under-hood label in the A/C kit also shows the correct refrigerant capacity of 30 oz.

Shown in this bulletin is the Expo A/C Installation manual correction.


A/C INSTALLATION MANUAL REFRIGERANT CAPACITY CORRECTION

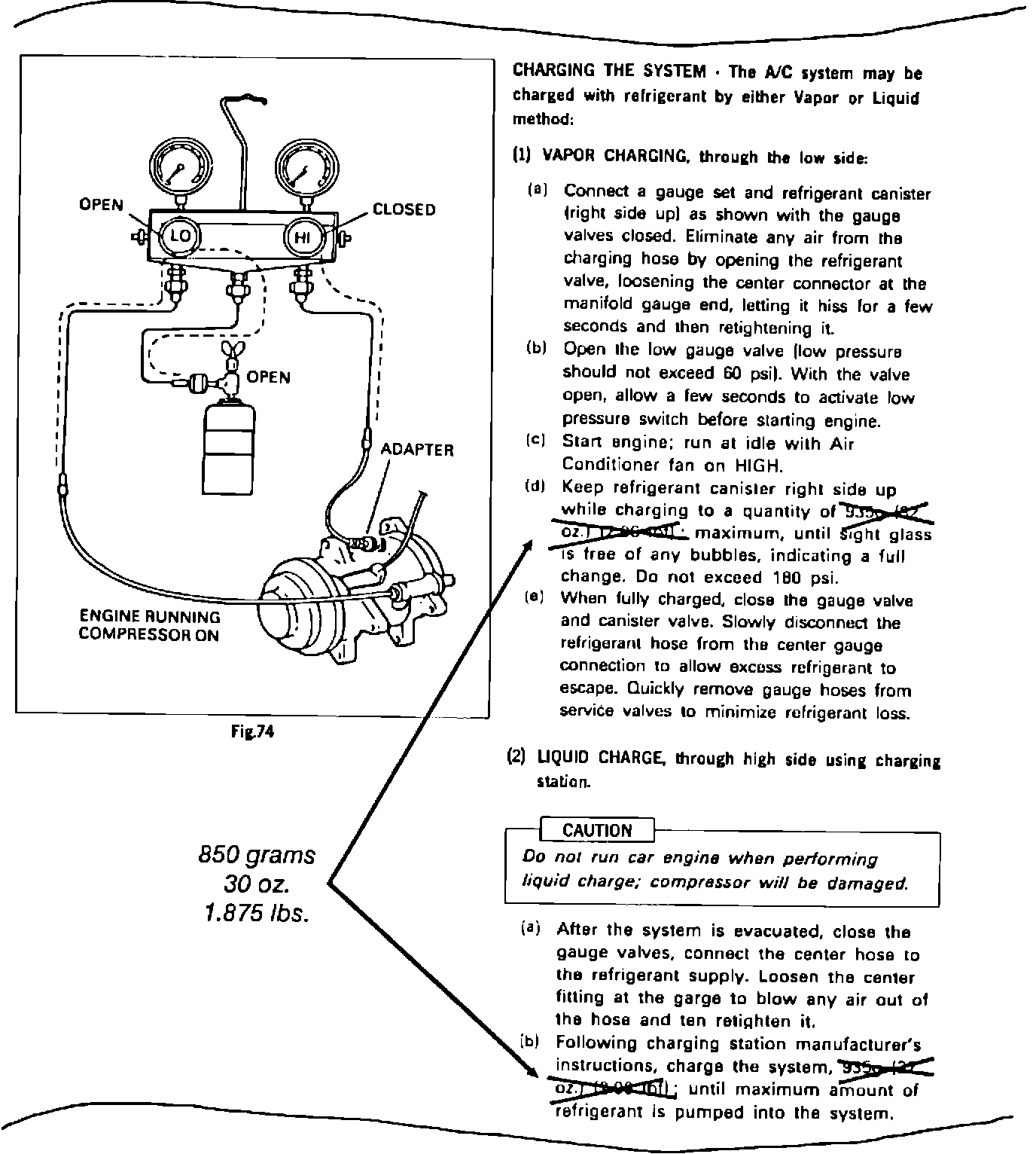

Page 44 of the EXPO A/C installation manual.





As shown, please cross out the "935g" and write in "850g"; cross out "32" and write in "30"; cross out "2.06" and write in "1.875", both within steps 1d and 2b.
