Expo LRV AWD L4-1834cc 1.8L SOHC 16 Valve
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
System Diagram
System Diagram

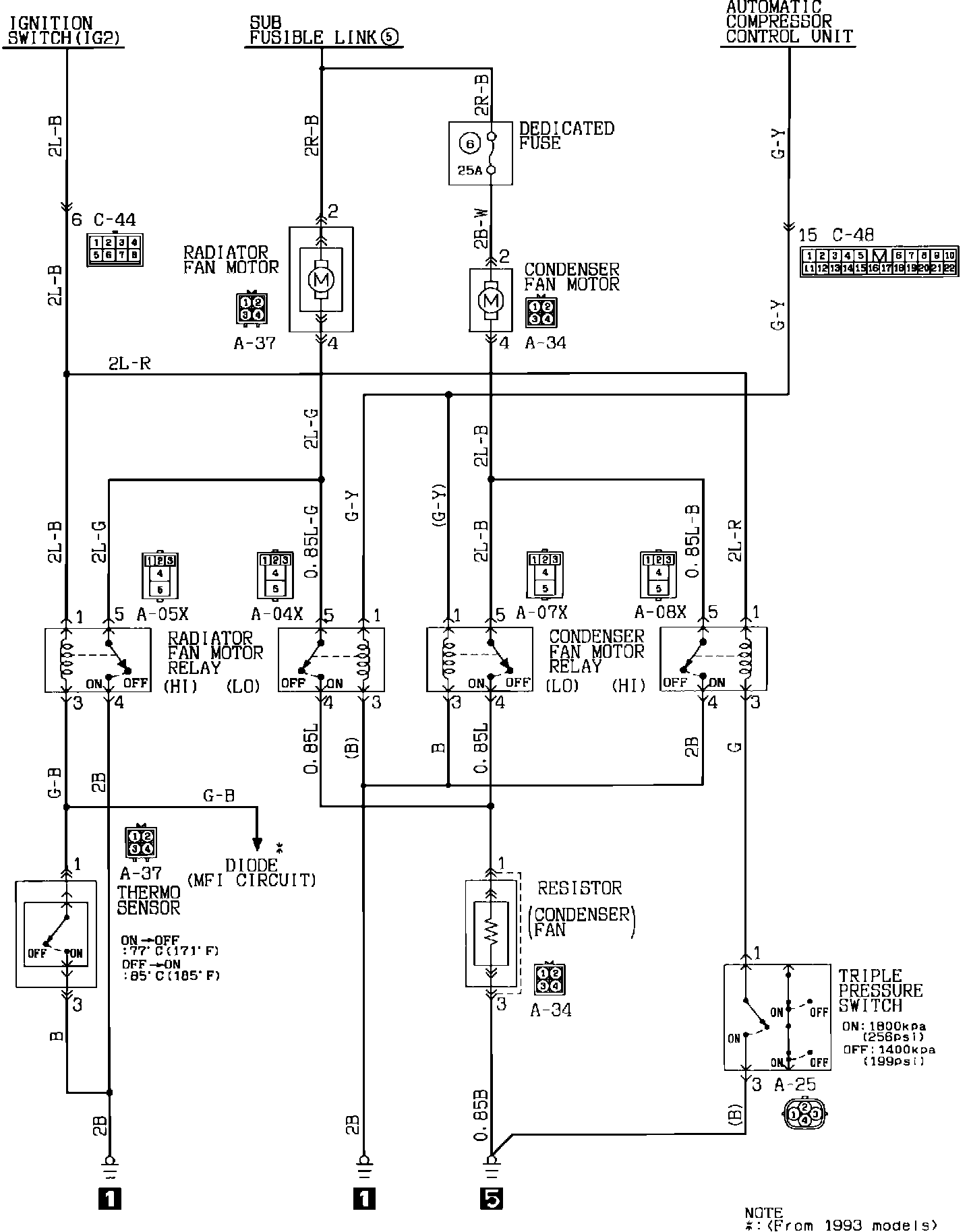

Fig. 13 Cooling Fan Wiring Diagram. Expo:

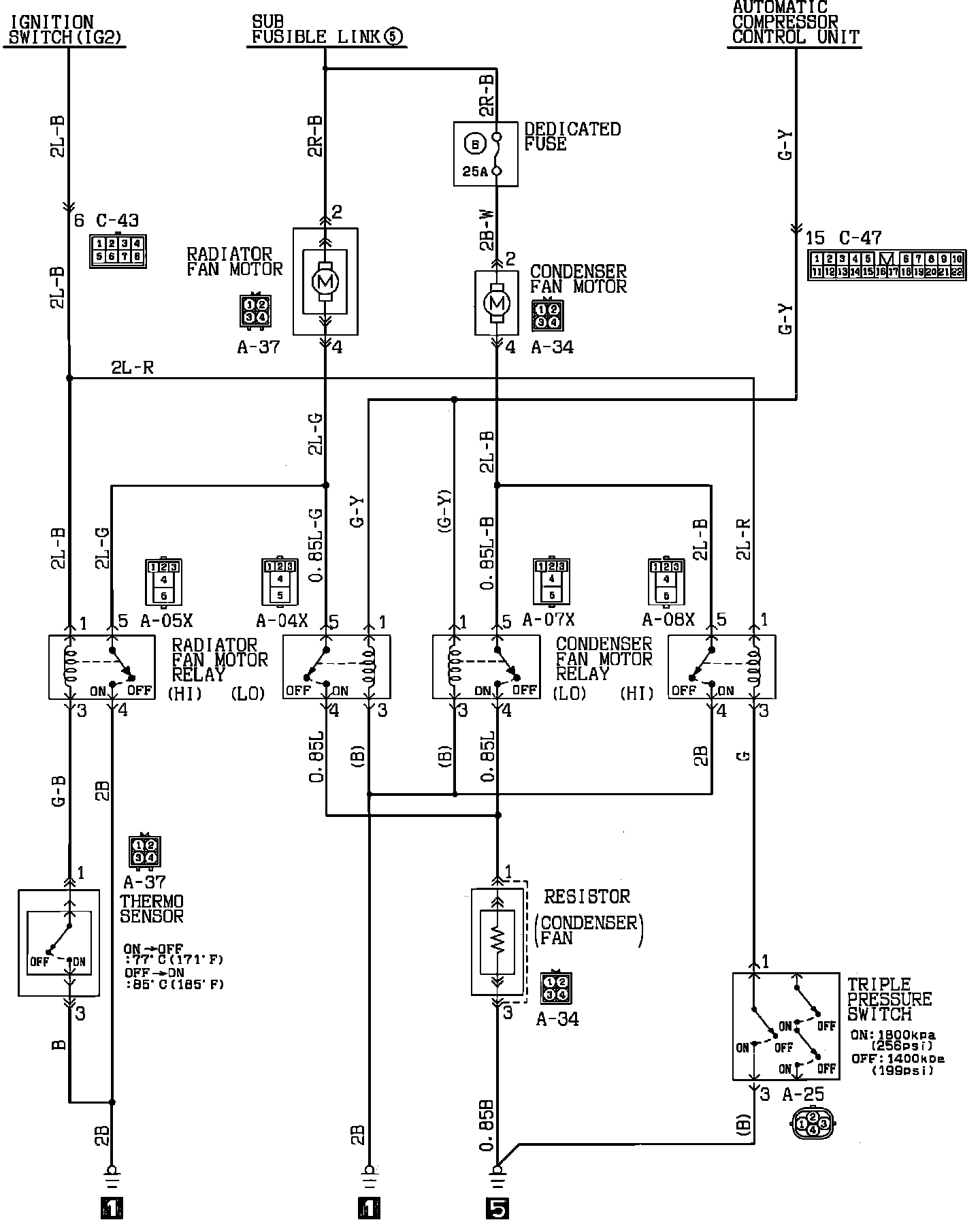

Cooling Circuit:
