Antilock Brakes / Traction Control Systems

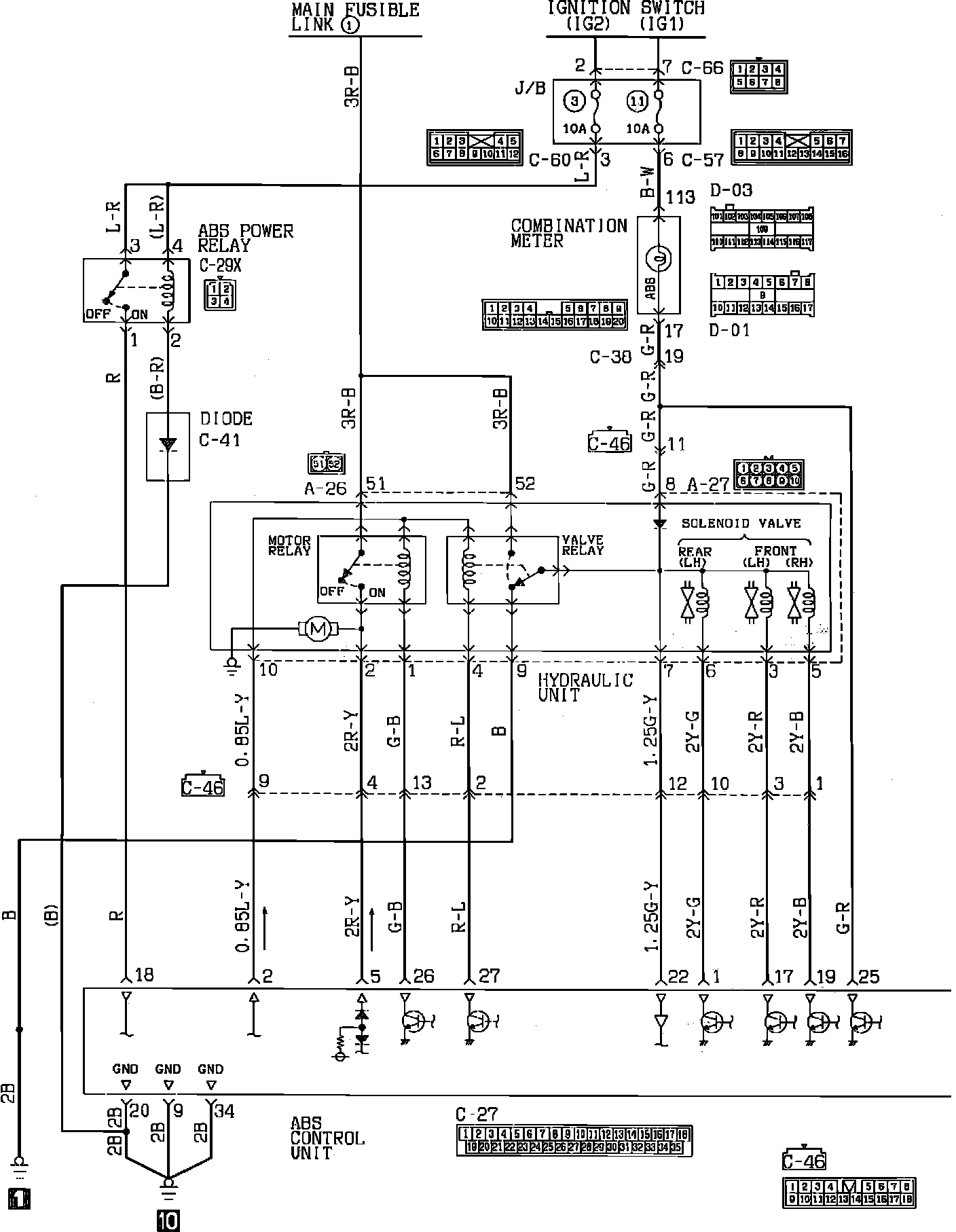

Fig. 8 Anti-lock Brake System Wiring Diagram (Part 1 Of 2). Expo AWD:

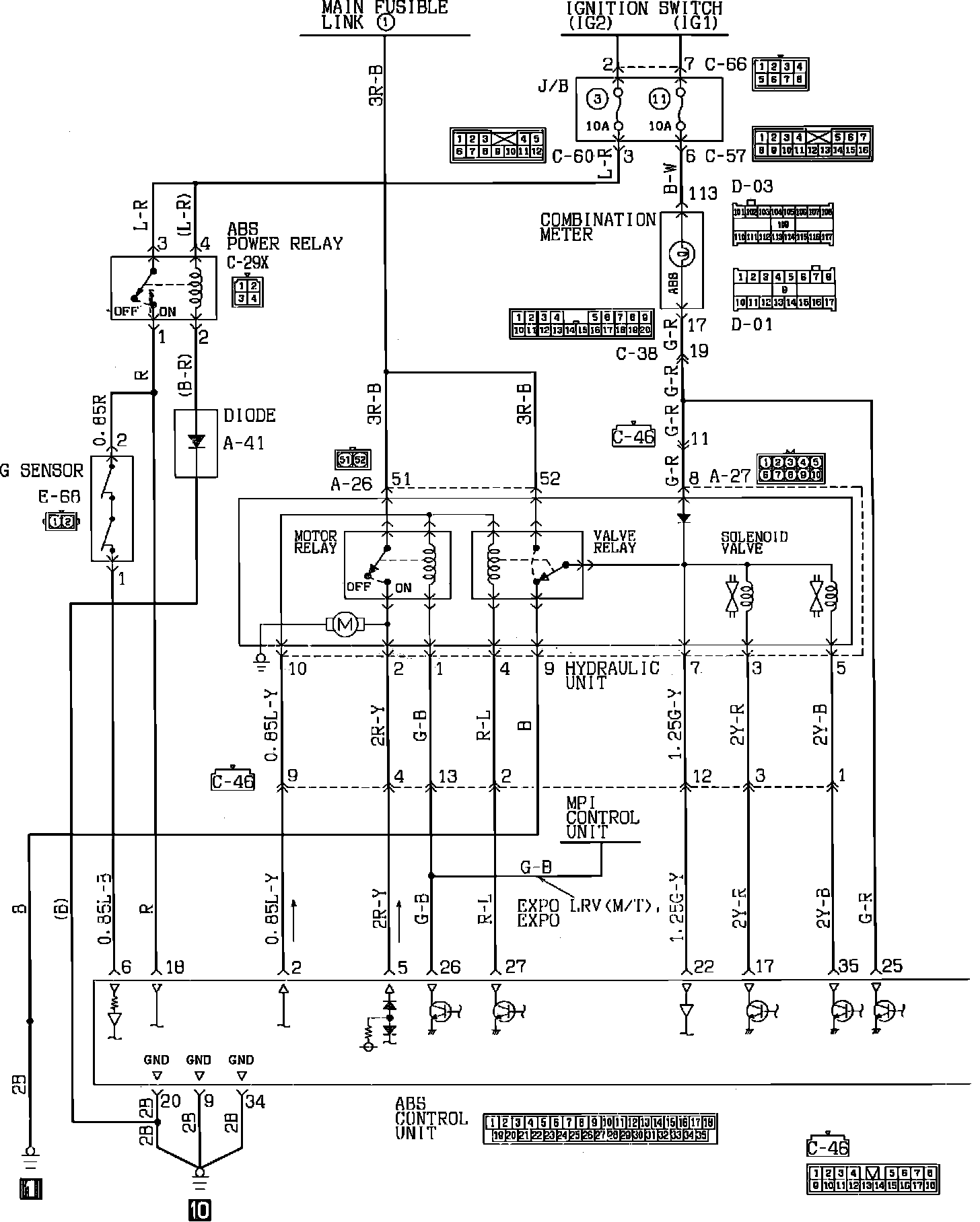

Fig. 8 Anti-lock Brake System Wiring Diagram (Part 2 Of 2). Expo AWD:

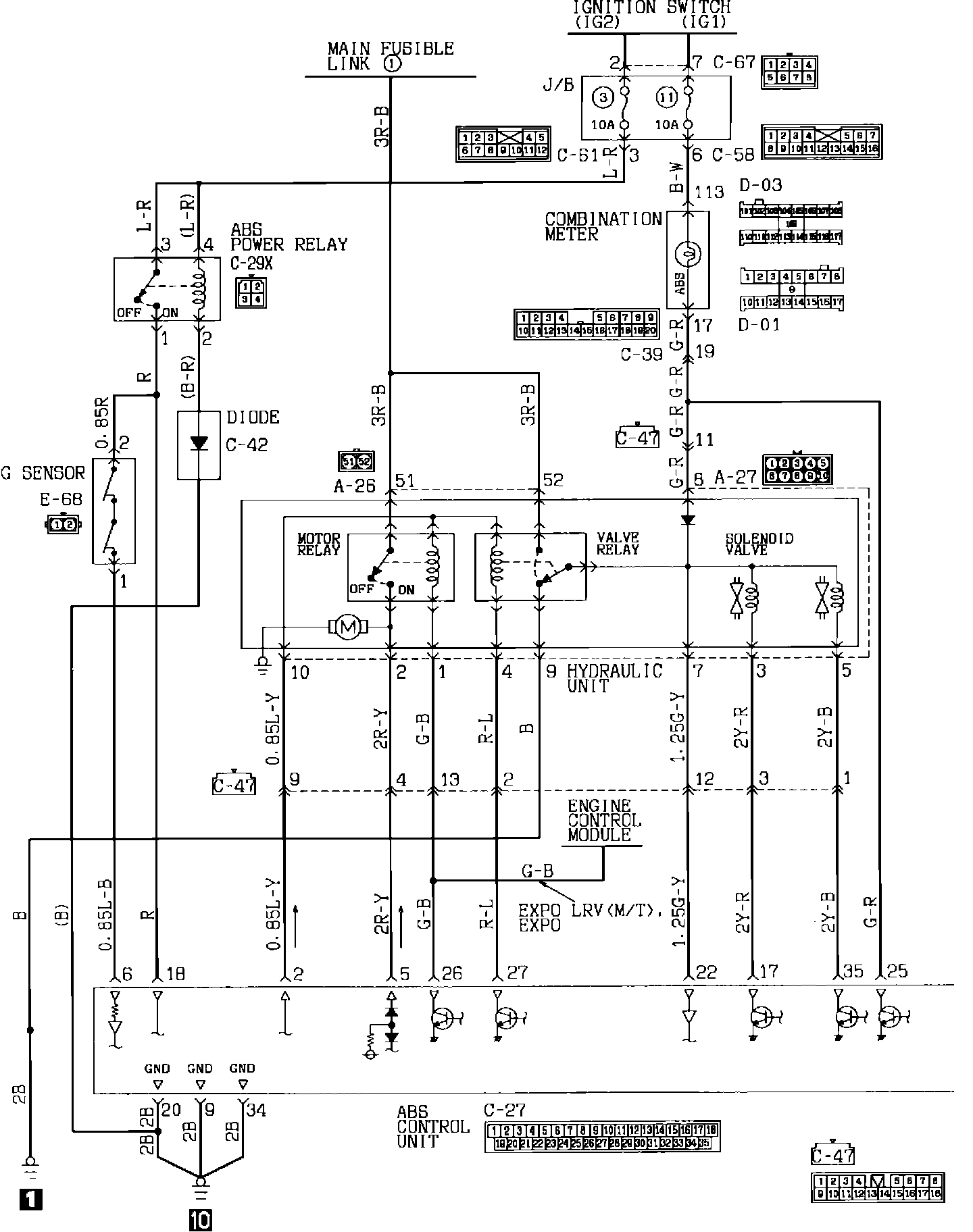

Fig. 9 Anti-lock Brake System Wiring Diagram (Part 1 Of 2). Expo FWD:

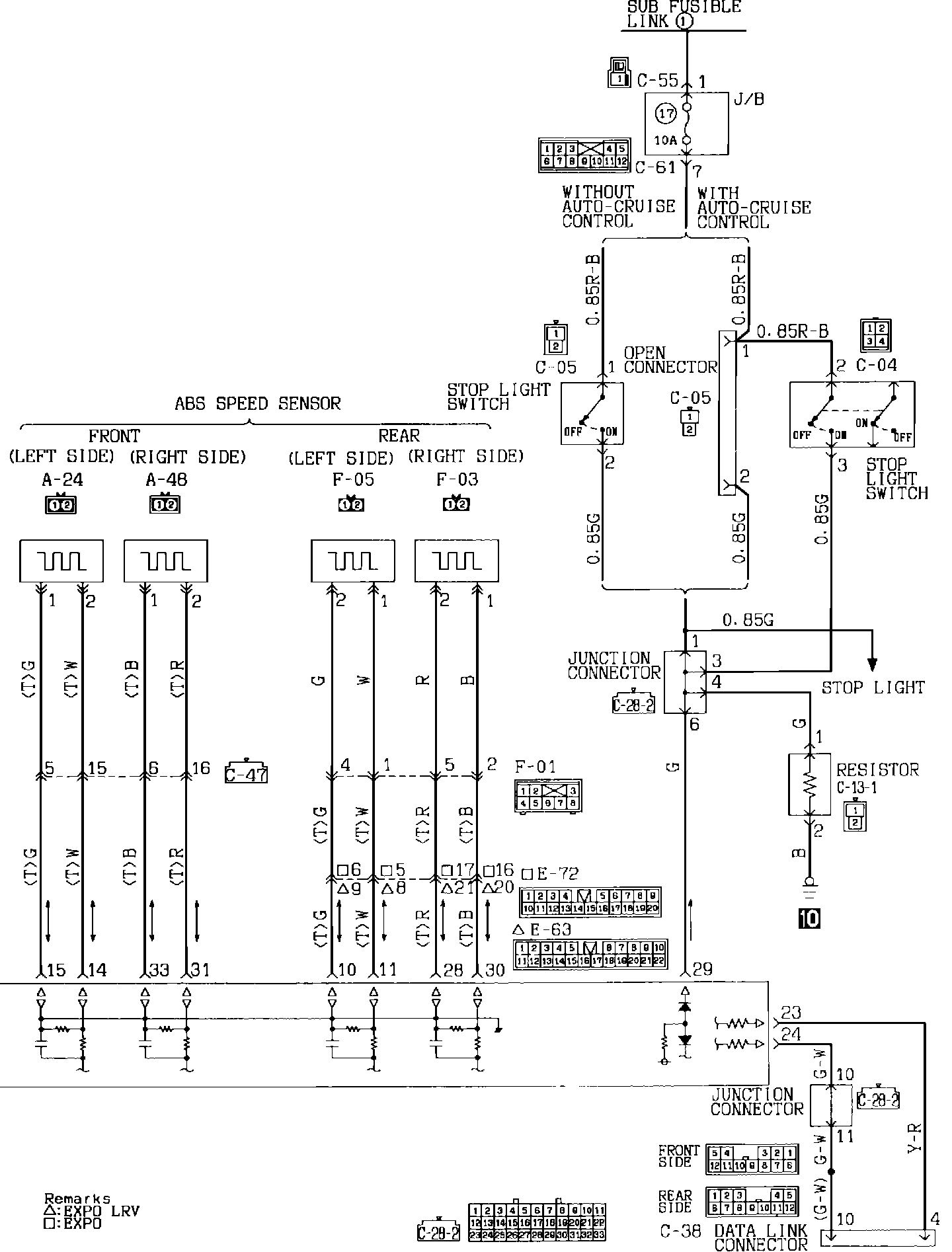

Fig. 9 Anti-lock Brake System Wiring Diagram (Part 2 Of 2). Expo FWD:

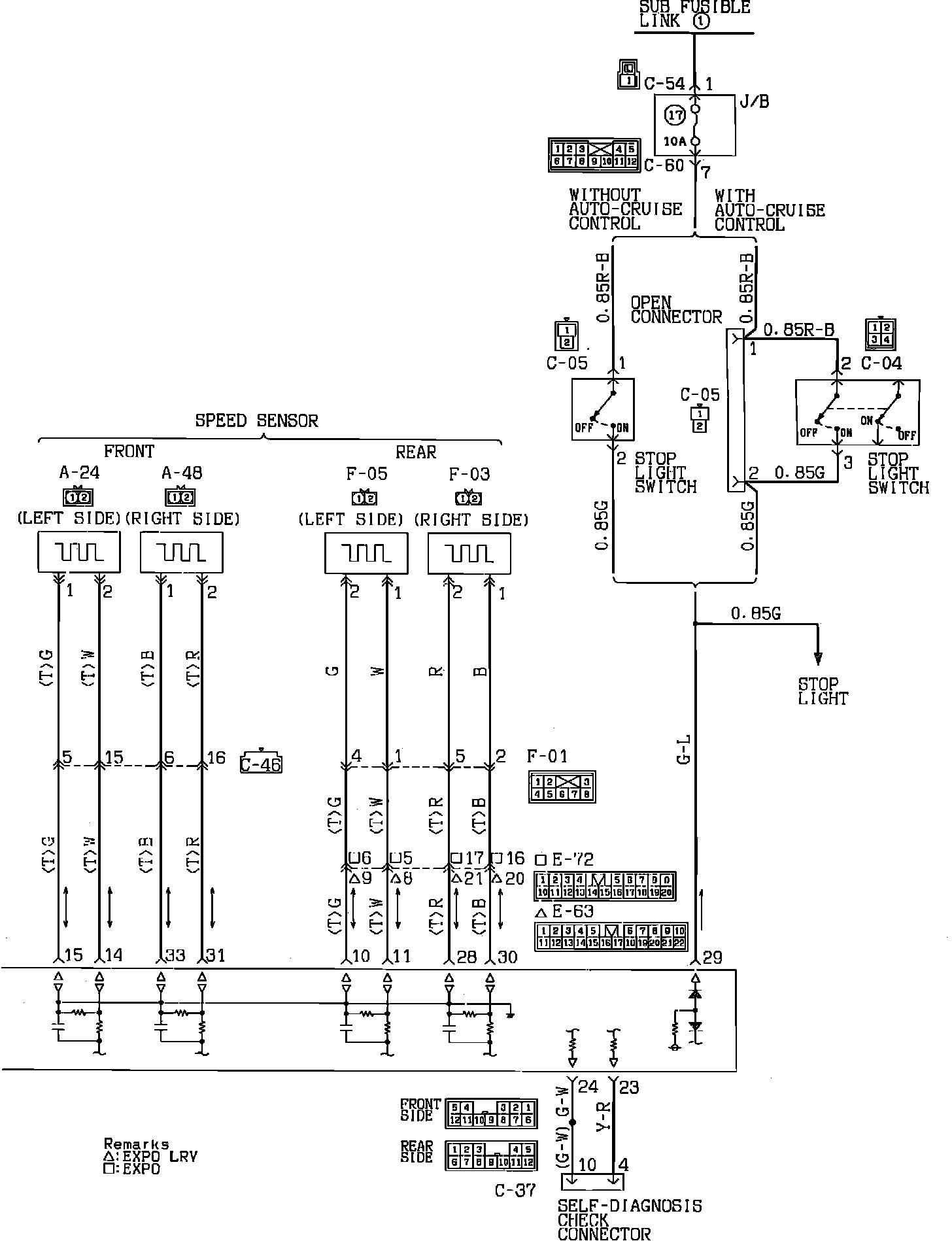

Anti-Lock Brakes (AWD):

Anti-Lock Brakes (AWD):
