Troubleshooting (ABS - AWD)

Part 1a:

Part 1b:

Part 2:

Part 3:

CAUTION:

1. When checking ABS-ECU terminal voltage and resistance, use the special tool (M6991356).

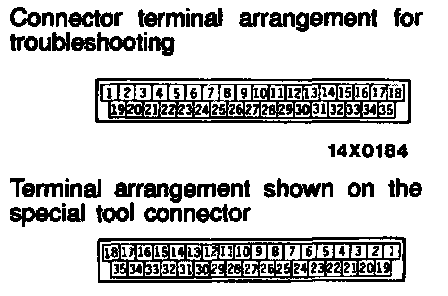

2. Because the ABS-ECU connector terminal No. layout for troubleshooting is different from the terminal No. layout shown on the special tool connector, when using the special tool for inspecting, take the readings from the special tool terminal Nos.

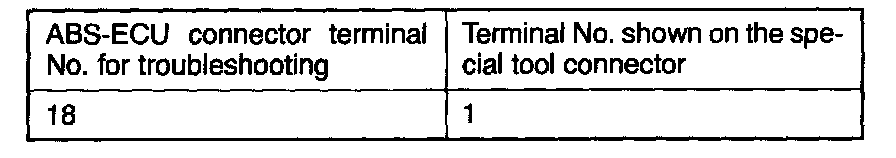

EXAMPLE
