Component Tests and General Diagnostics

ACTUATOR TEST FUNCTION

The actuator can be force-driven using the scan tool (MUT or MUT-II), enabling easy operation checking to be performed.
1. When the ABS-ECU is cancelling the function, actuator testing cannot be carried out.
2. Actuator testing is only possible when the vehicle is stationary. When force-driving the actuator, if the vehicle speed reaches 10 km/h (6 mph), forced-driving is cancelled.
3. The item Nos. in the table below indicate the numbers input to the scan tool (MUT or MUT-II) when actuator test execution is displayed.

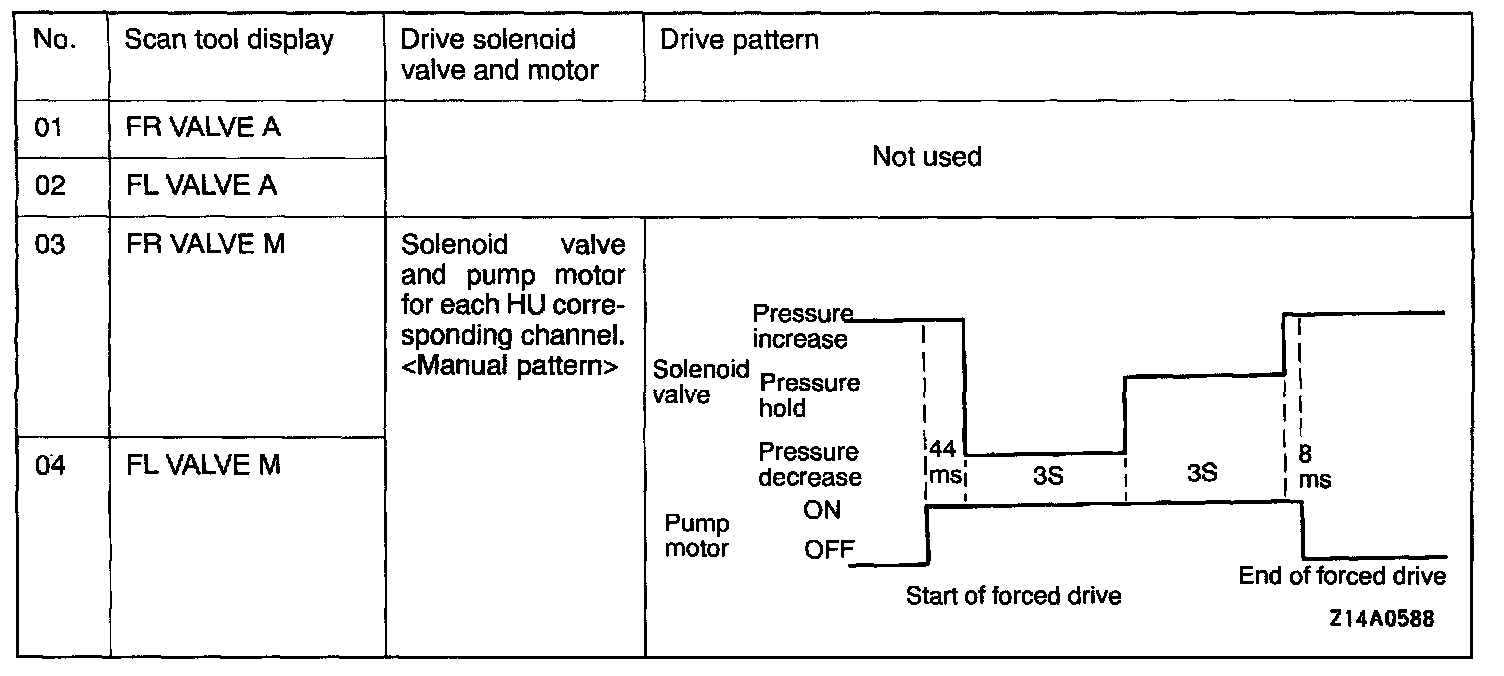

ACTUATOR TEST SPECIFICATIONS
