DTC 15

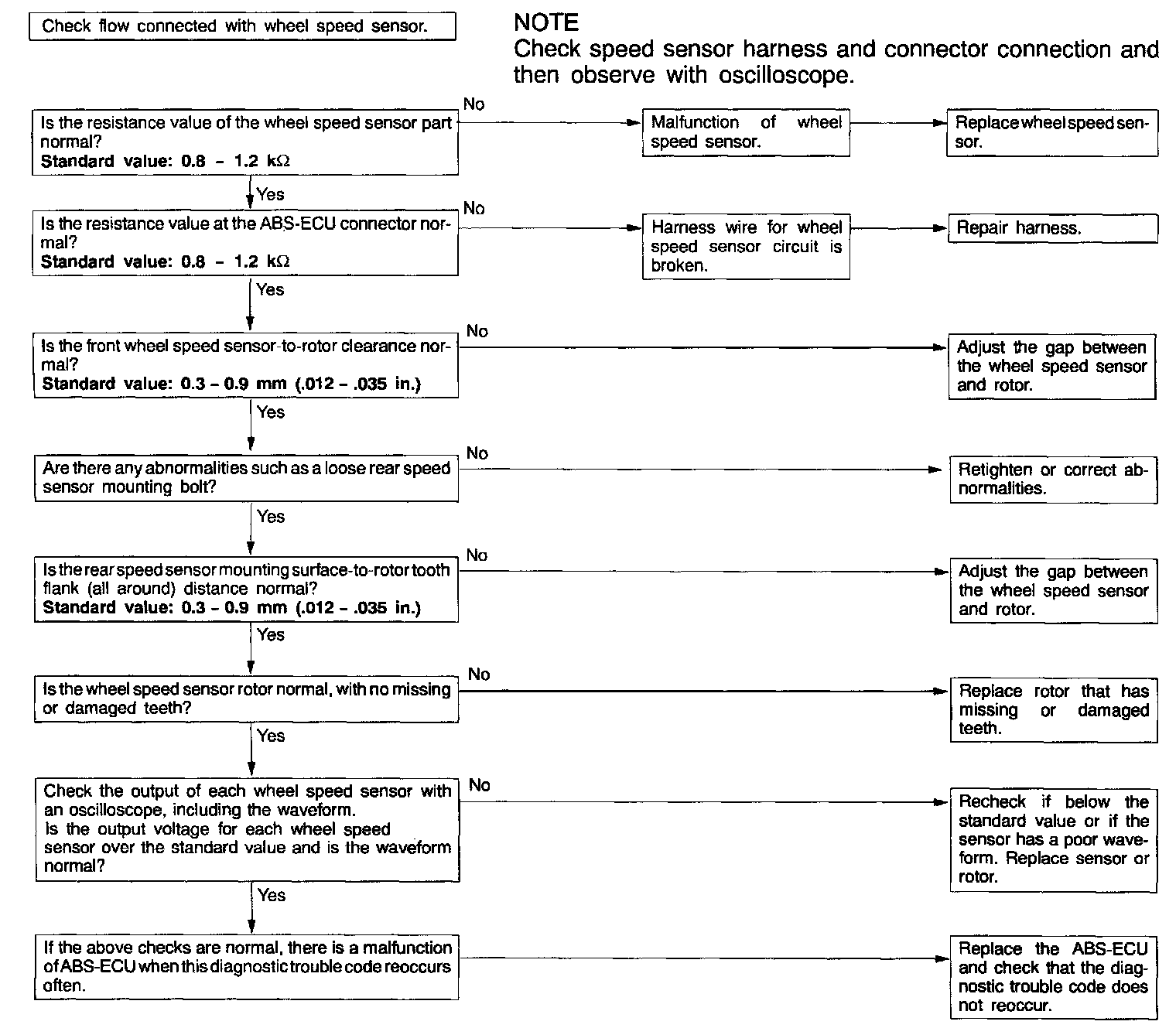

Part 1:





Part 2:

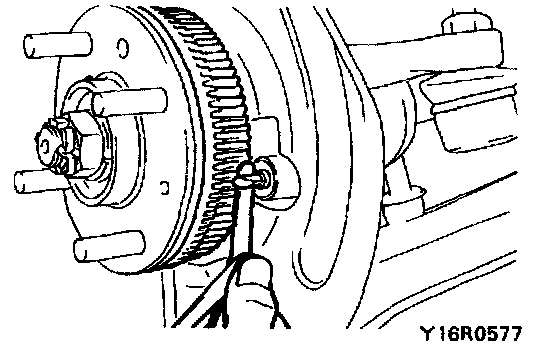

Measuring Front Wheel Speed Sensor Gap:

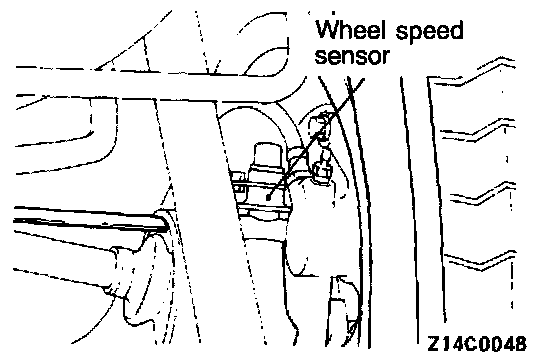

Measuring Rear Wheel Speed Sensor Gap:

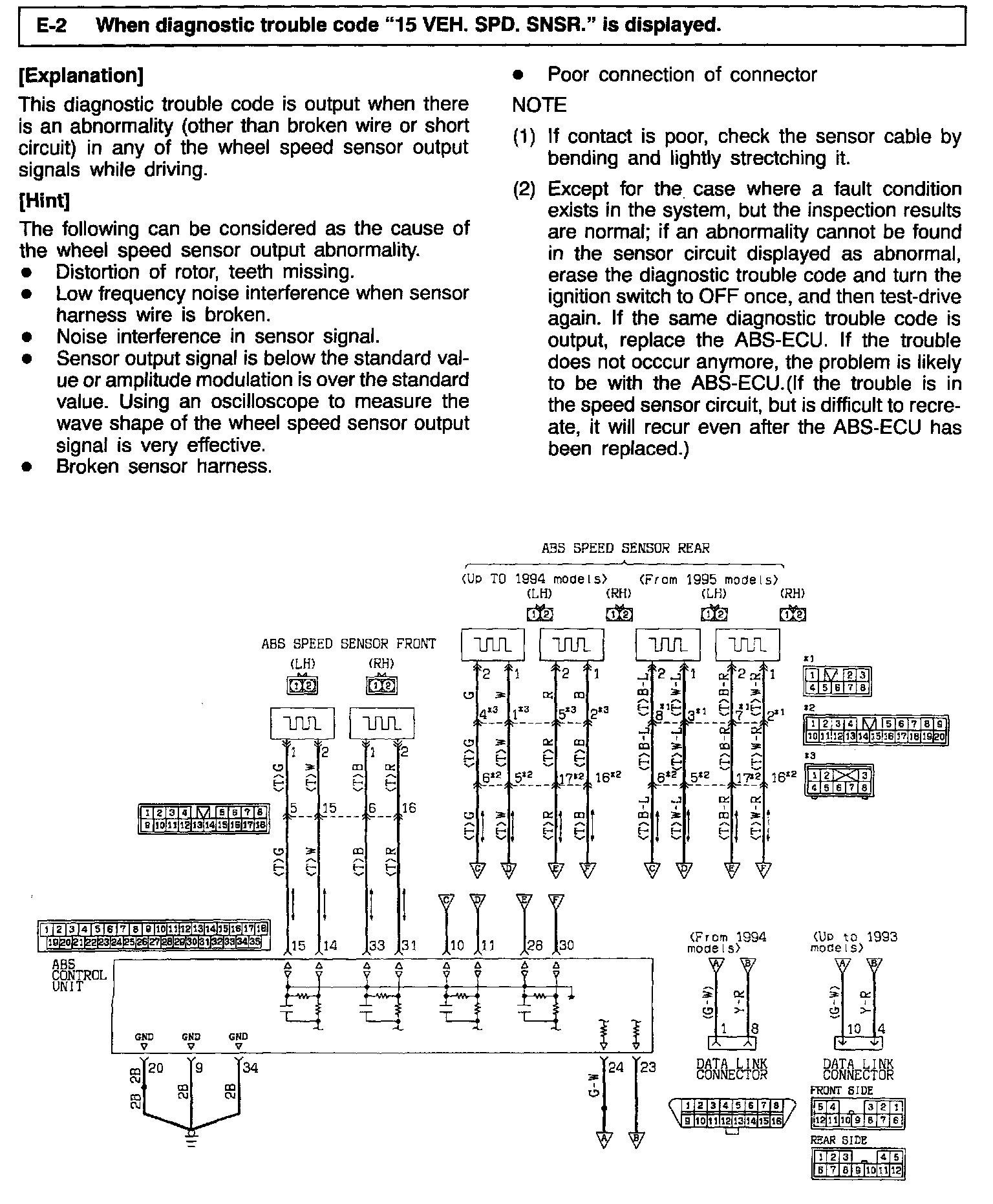

DTC 15 - VEHICLE SPEED SENSOR
