Cooling System
>>
Radiator Cooling Fan Motor
Radiator Cooling Fan Motor

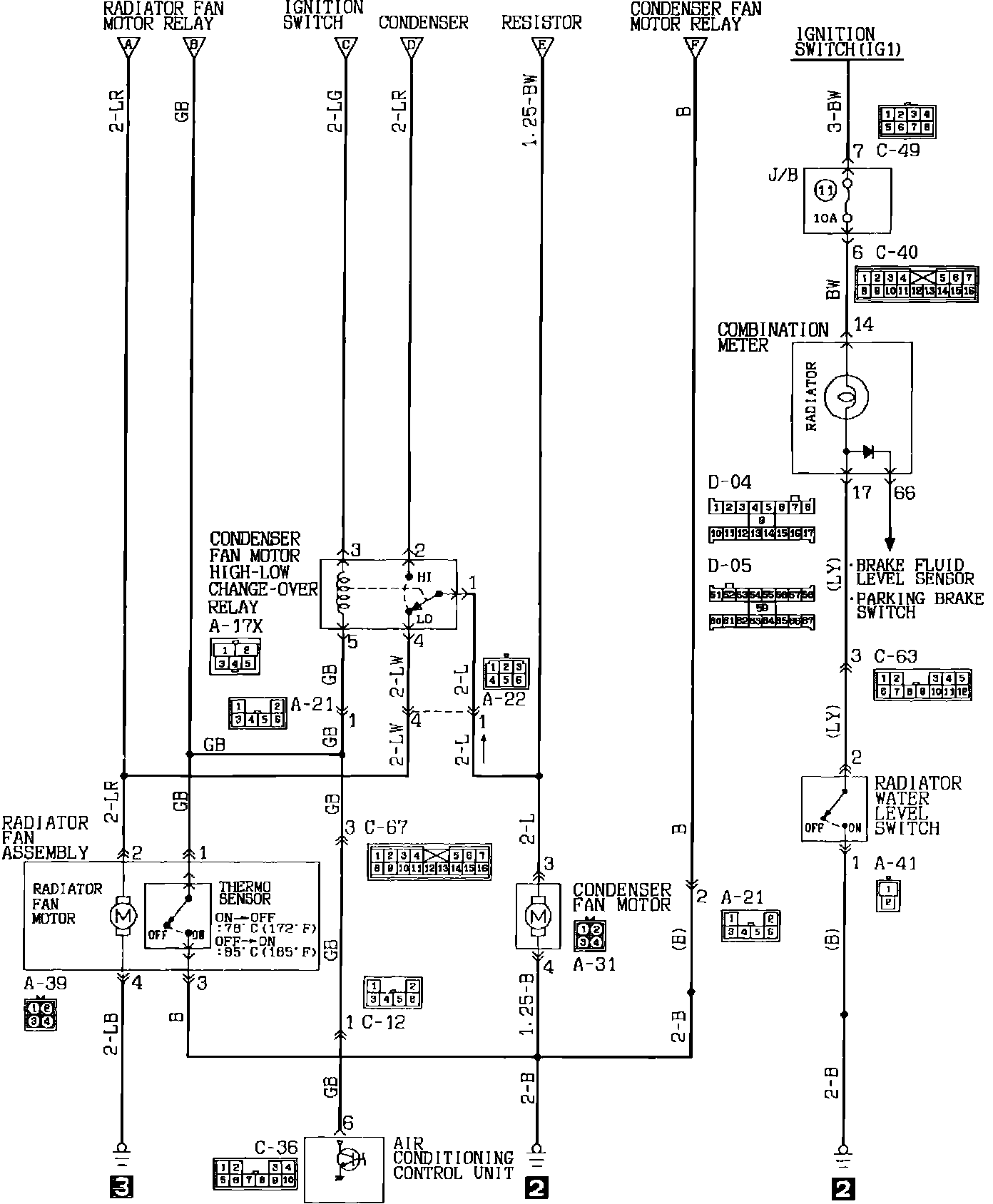

Fig. 2 Cooling Fan Wiring Diagram. 1992 Eclipse:

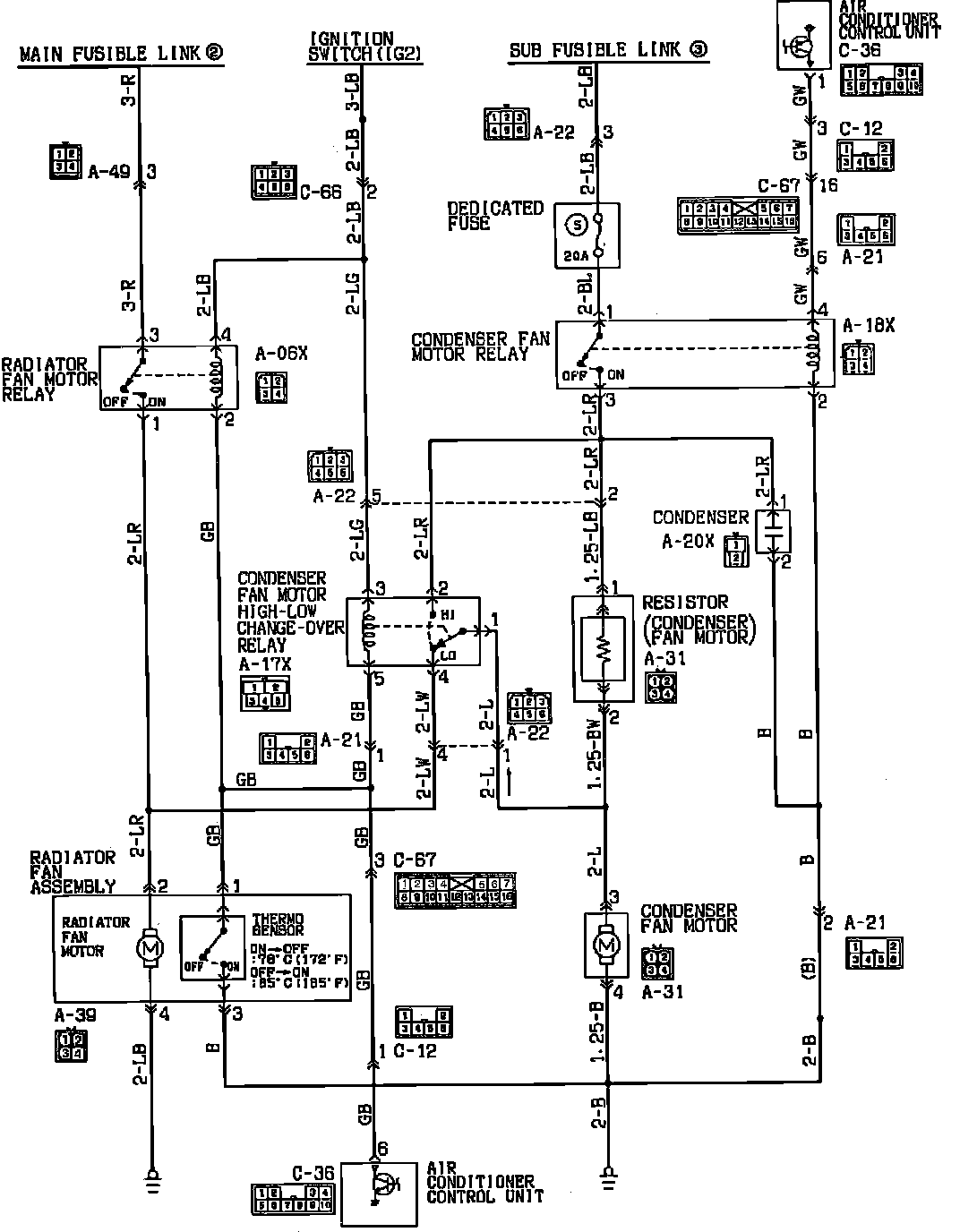

Cooling Circuit:

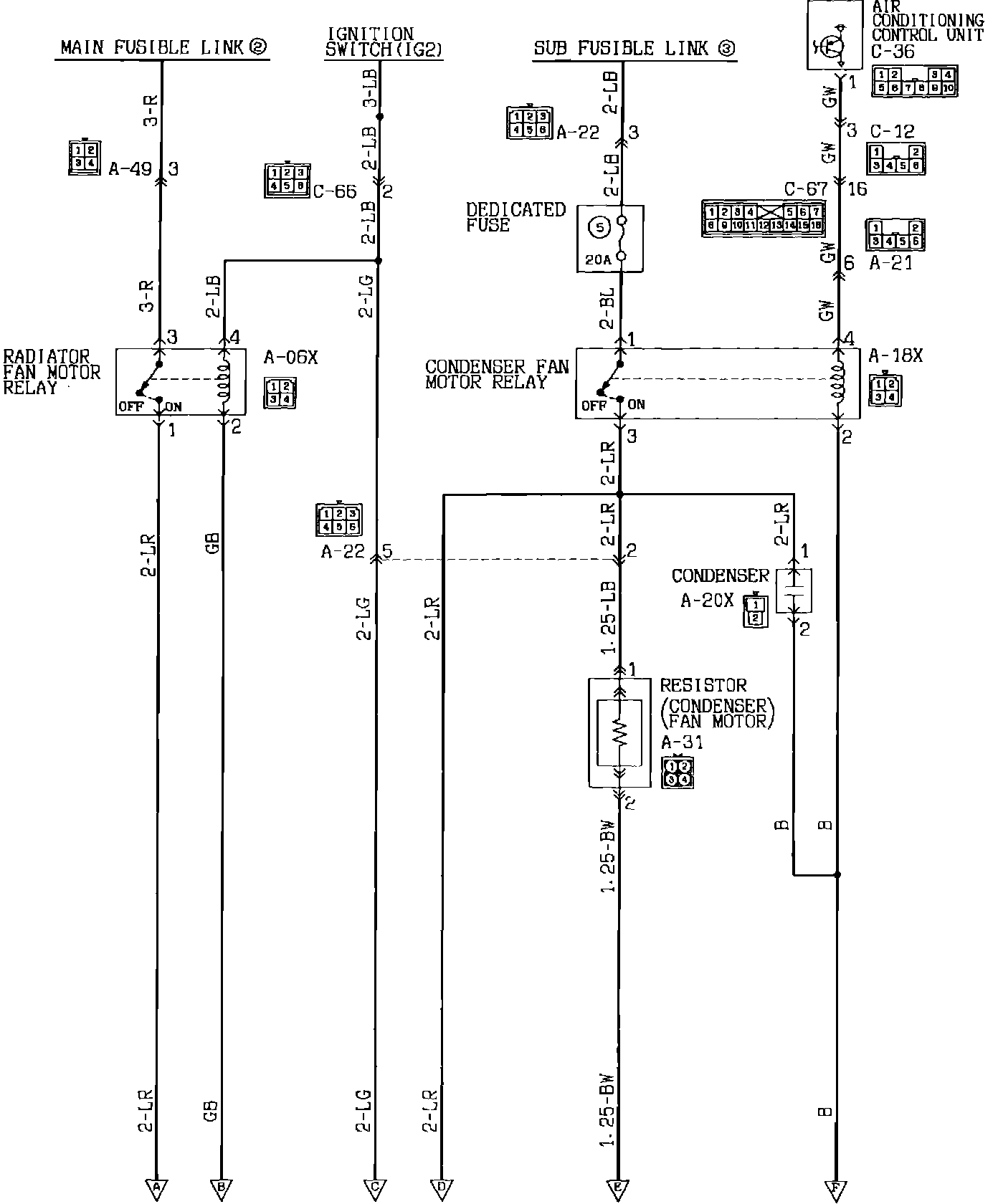

Cooling Circuit:
