Power Windows - Control Circuit Revision
NO.: TSB-91-42-002DATE: June, 1991
MODEL: 1992 Diamante
SUBJECT:
POWER WINDOW CONTROL CIRCUIT - SERVICE MANUAL CORRECTION
[TSB Revision TSB-91-42-002]
PURPOSE
This Technical Service Bulletin corrects information contained in the power window control circuit diagram. As a reference to this TSB, please write the TSB Revision number in the revision box located at the bottom of each affected service manual page.
AFFECTED SERVICE MANUALS
1992 Diamante, Volume 1, Page 42-10.
1992 Diamante, Volume 2, Page 99.
DESCRIPTION

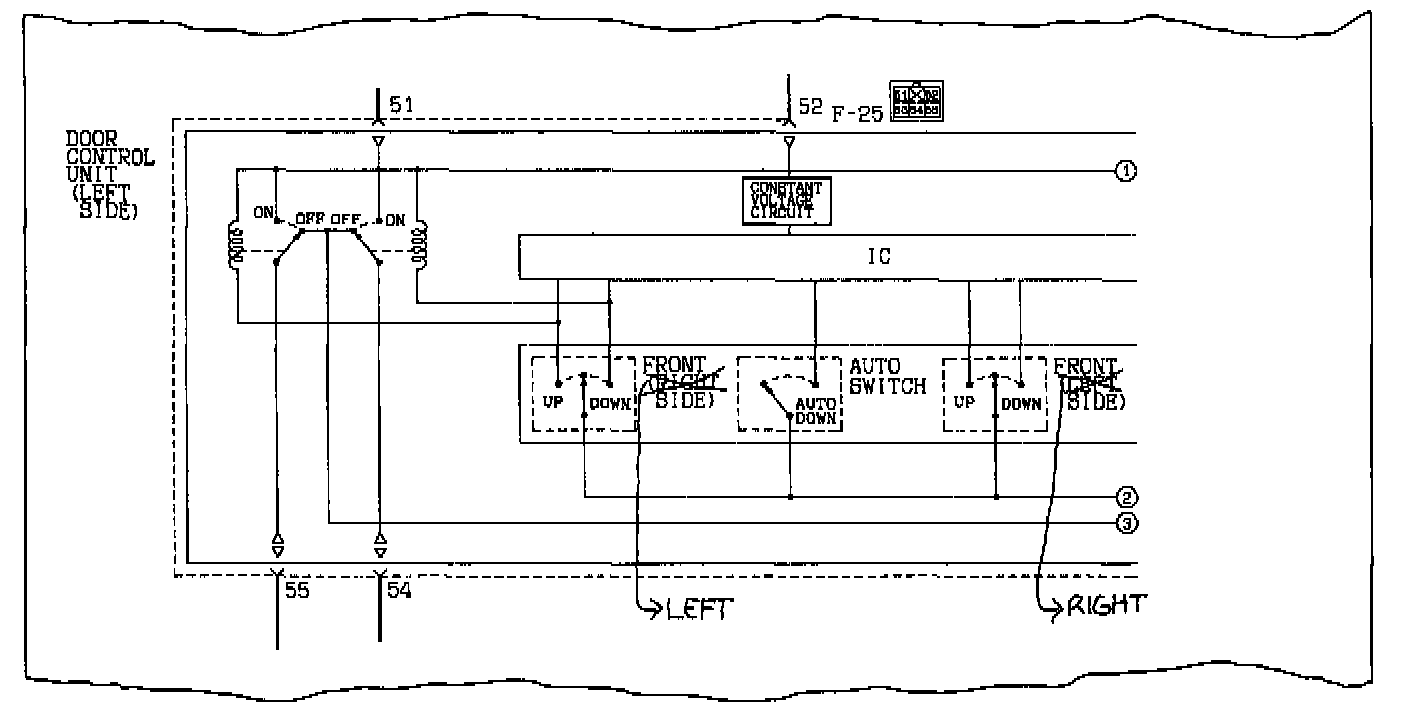

Two of the switch reference call-outs are reversed. Correct them as shown in the following example:
1992 Diamante, Volume 1, Page 42-10.
1992 Diamante, Volume 2, Page 99.
