Transmission Mount: Service and Repair

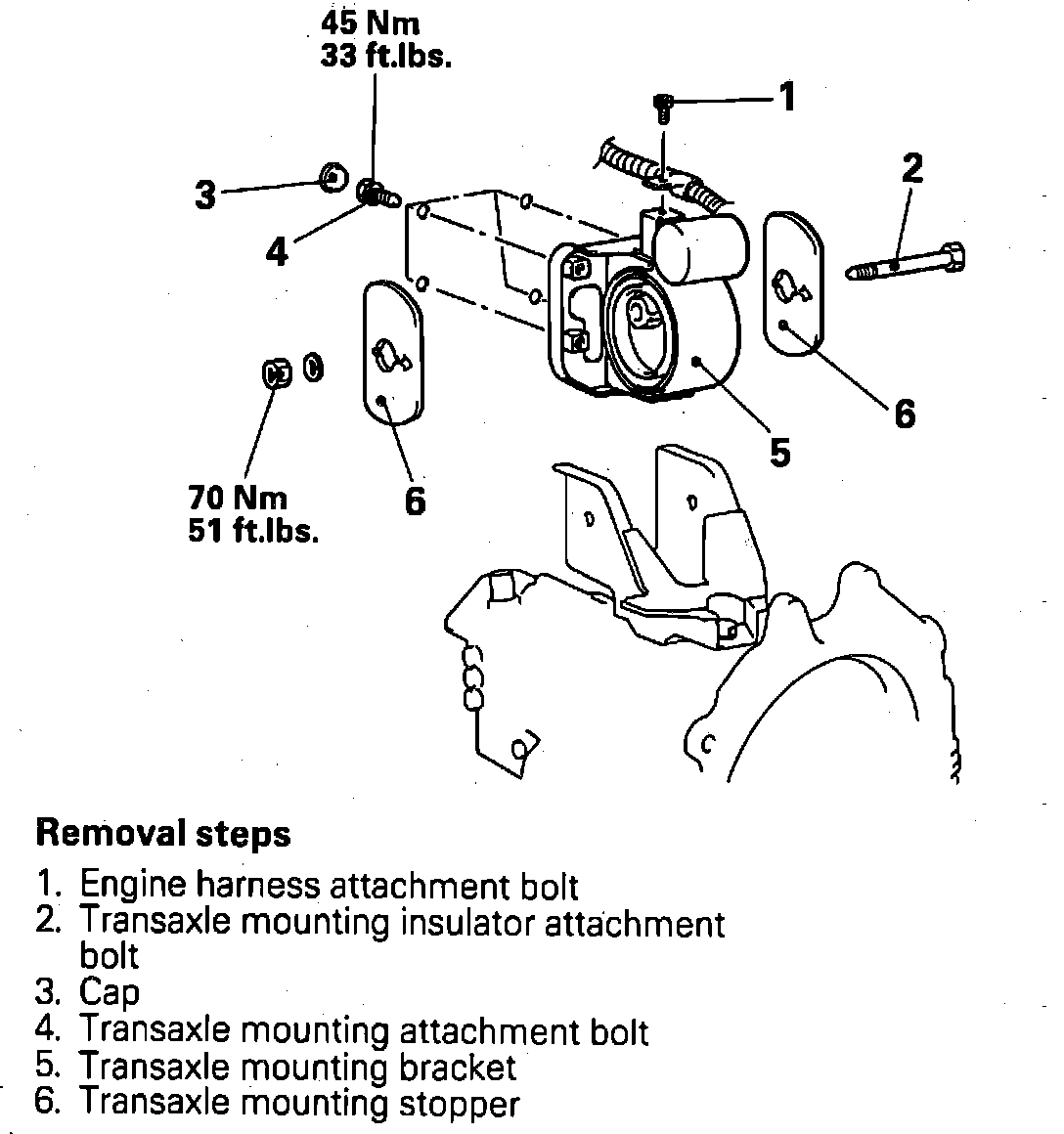

Fig. 3 Replacing Transaxle Mounts:

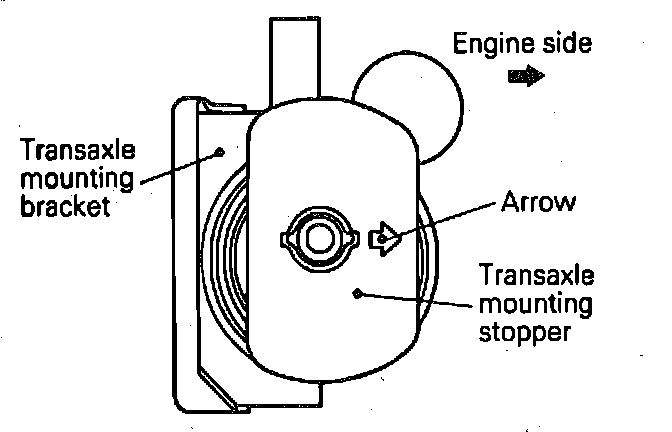

Fig. 4 Transaxle Mounting Stopper Installation Direction:

1. Disconnect battery ground cable.
2. Using suitable floor jack raise transaxle to release weight off mounts.
3. Replace transaxle mounts in numbered sequence shown in Fig. 3, installing mounting stopper in direction shown, Fig. 4.
