Pre-Programming & After-Programming Checks

PRE-PROGRAMMING CHECKS

There are four situations where problems may occur.

1. During installation.

2. During cellular phone power-up initialization.

3. During programming.

4. During use.

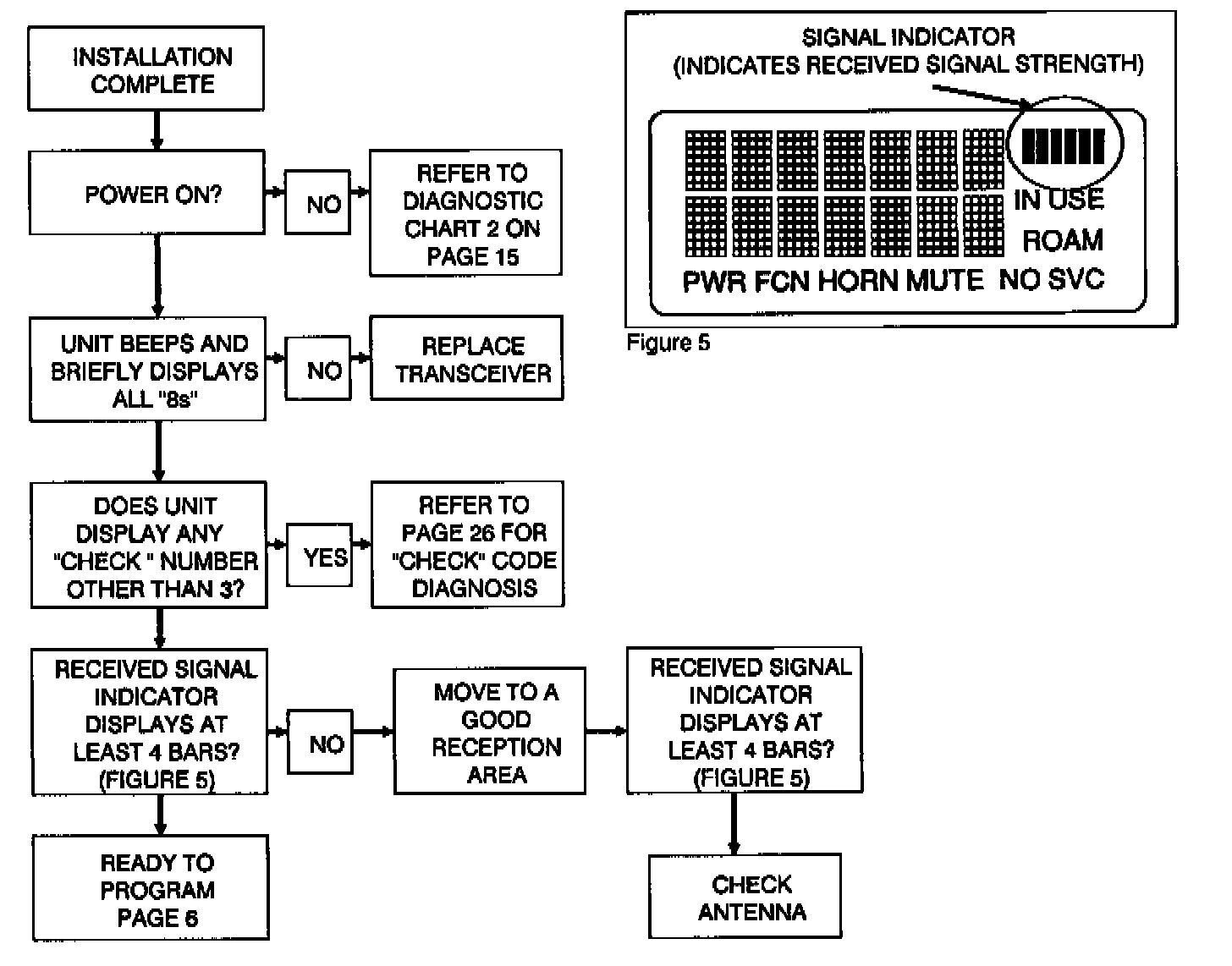

Above is a flow chart that should be used AFTER installation of the cellular phone system and BEFORE programming the unit.

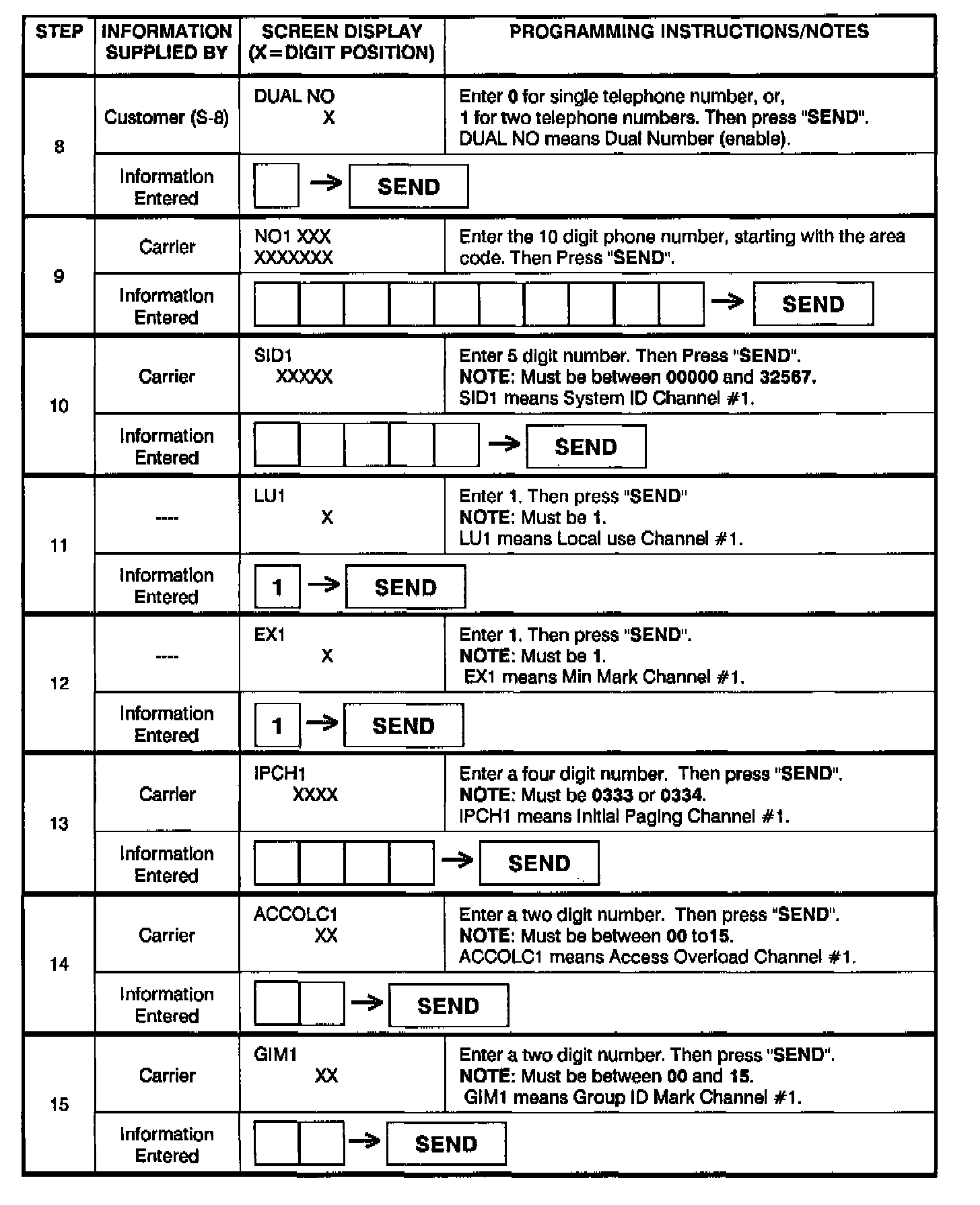

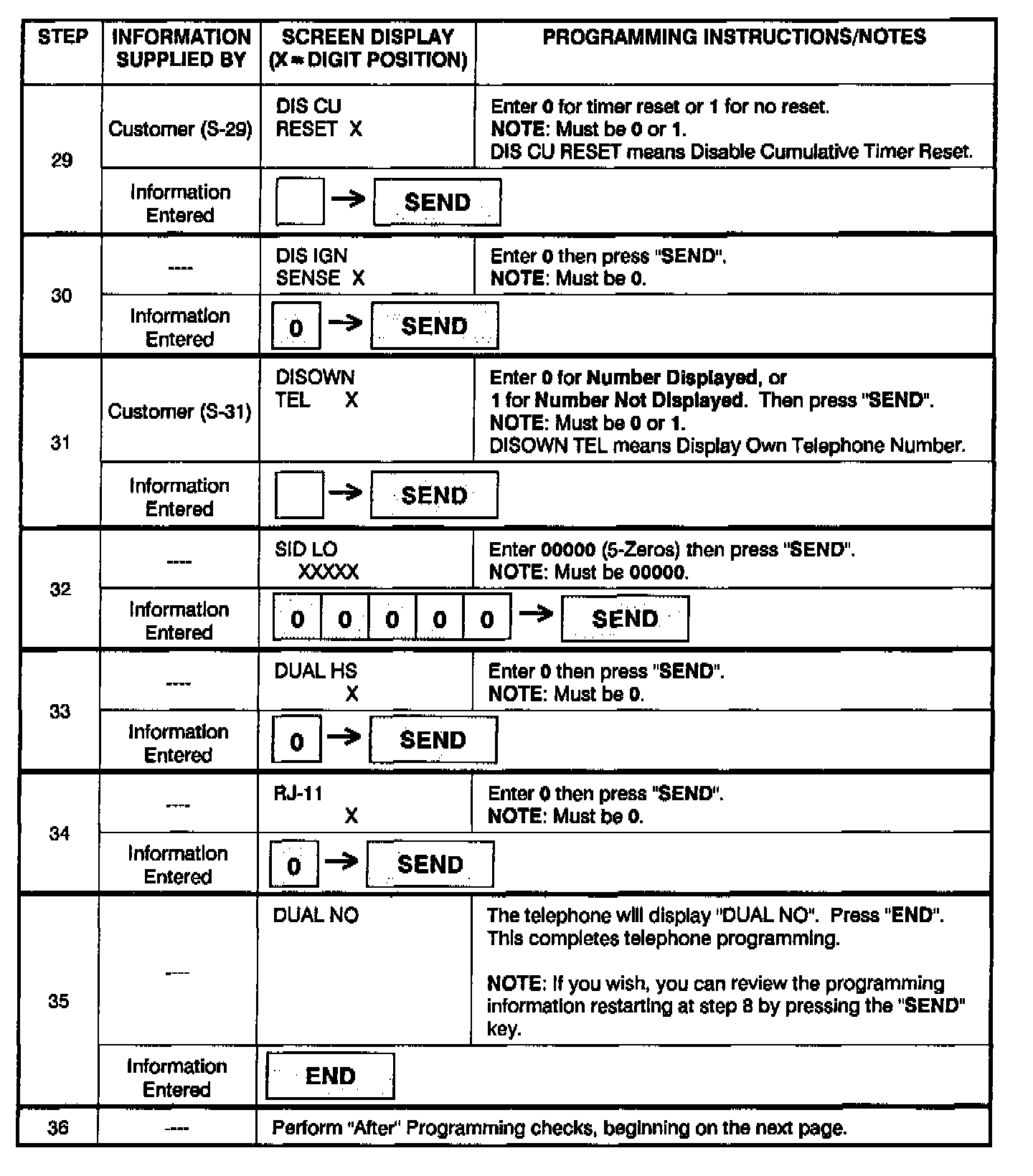

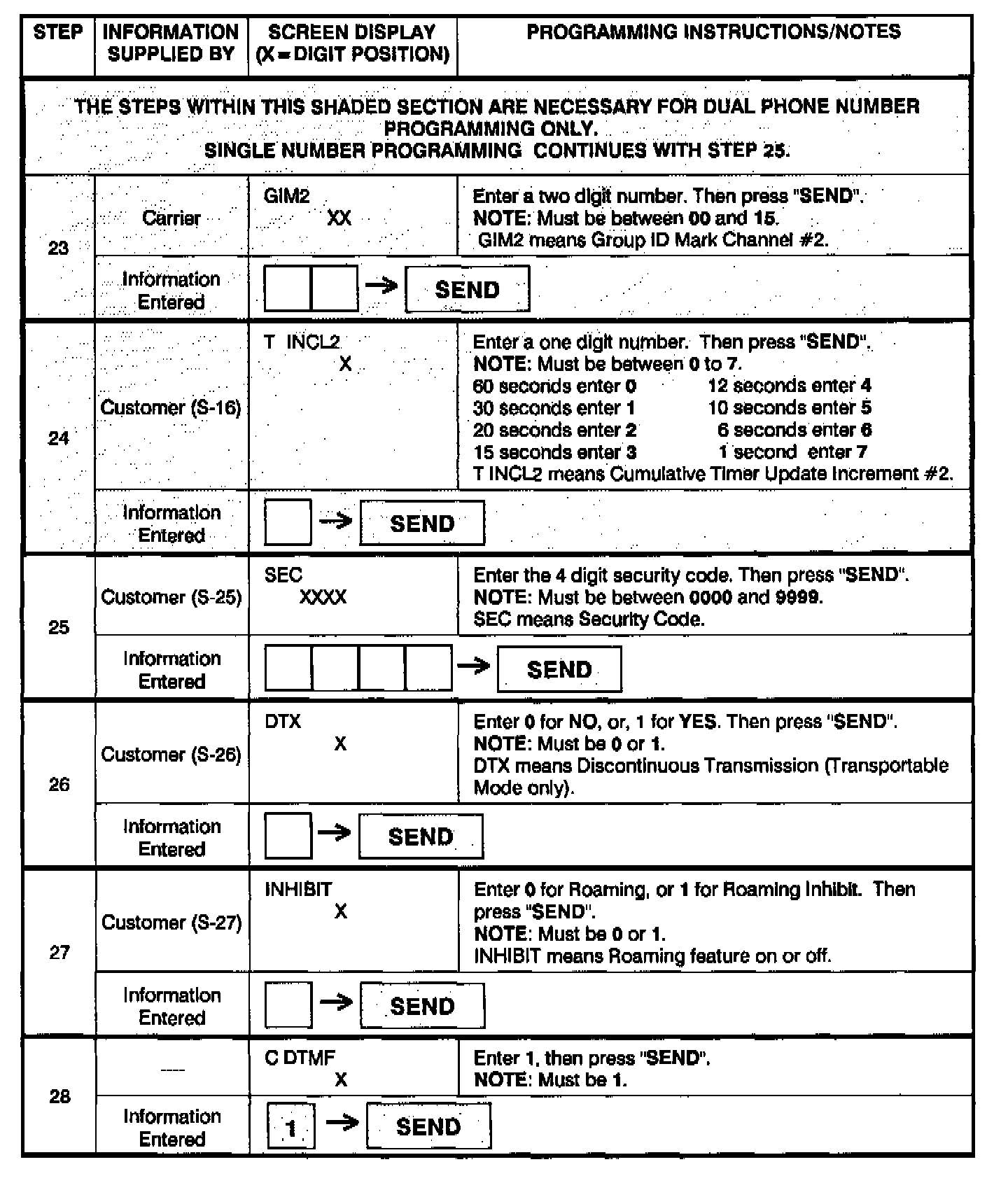

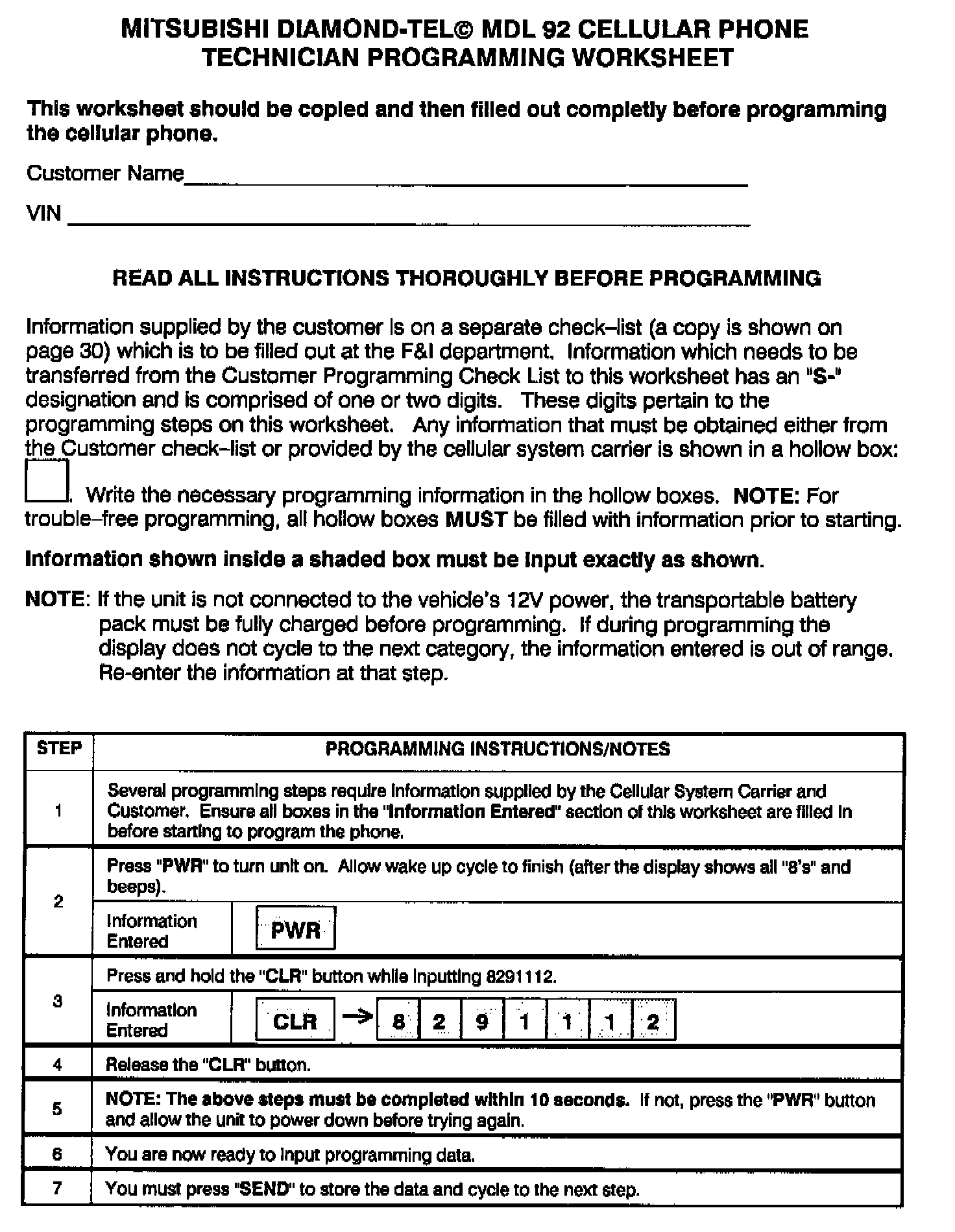

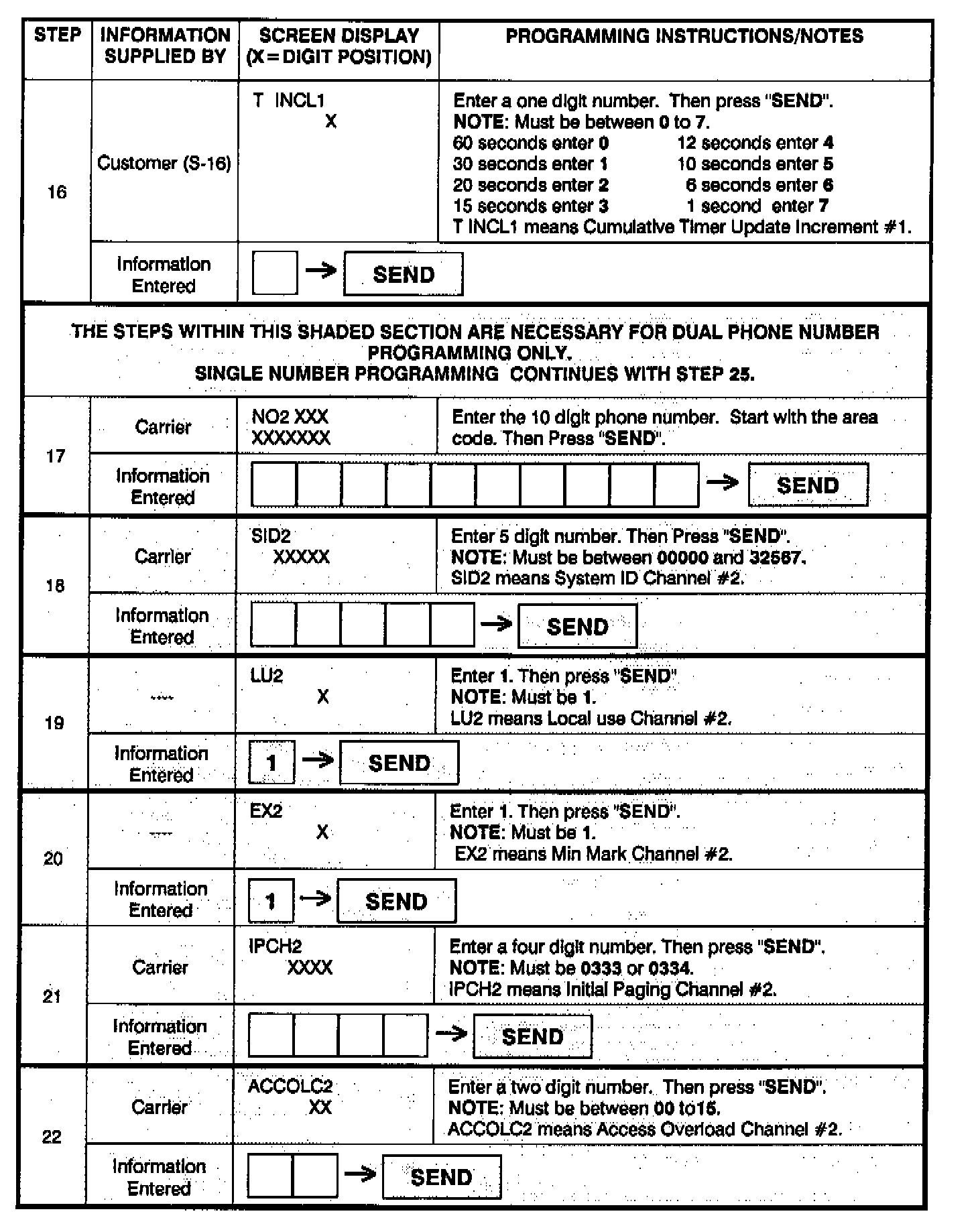

Technician Programming Worksheets

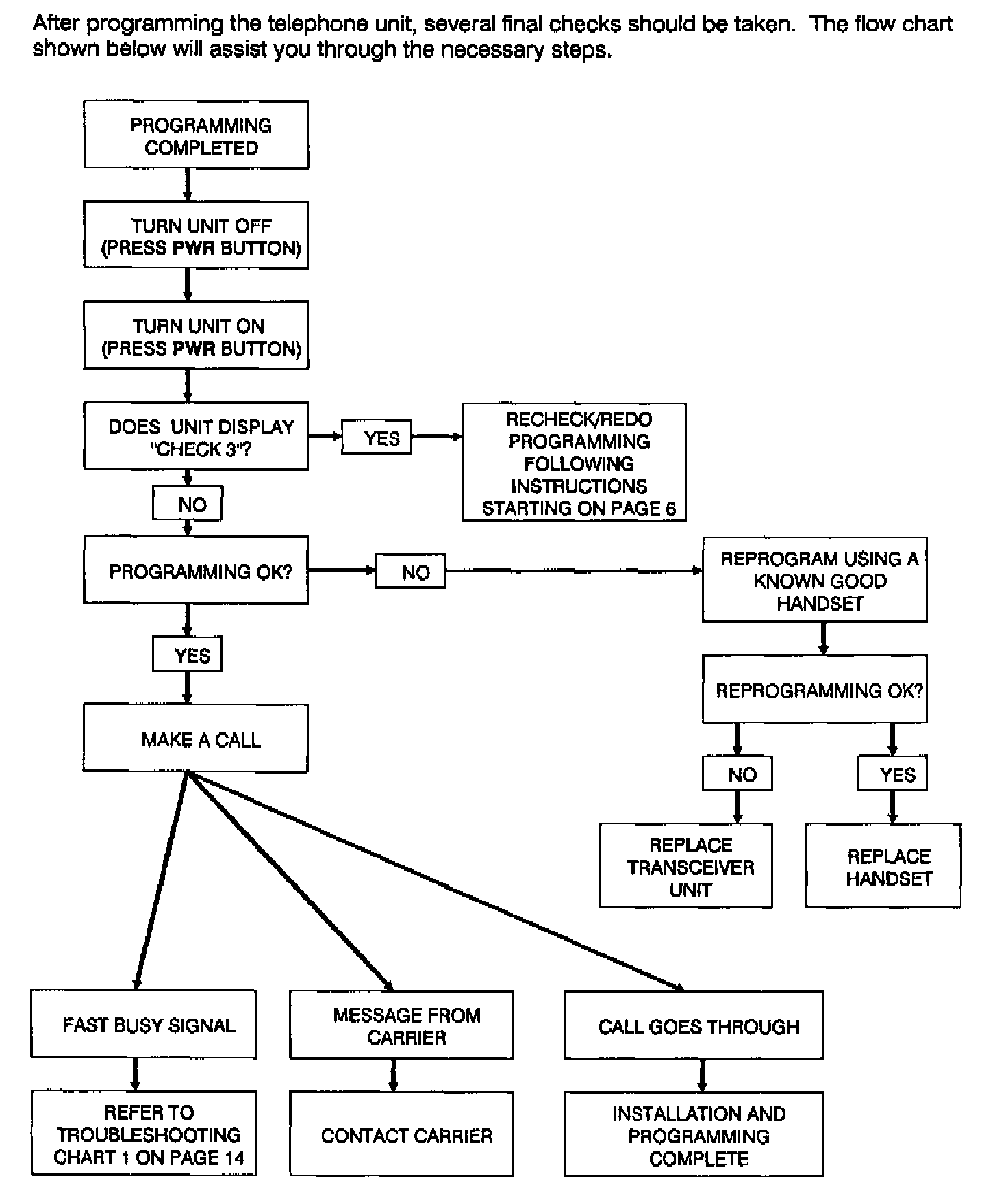

AFTER-PROGRAMMING CHECKS

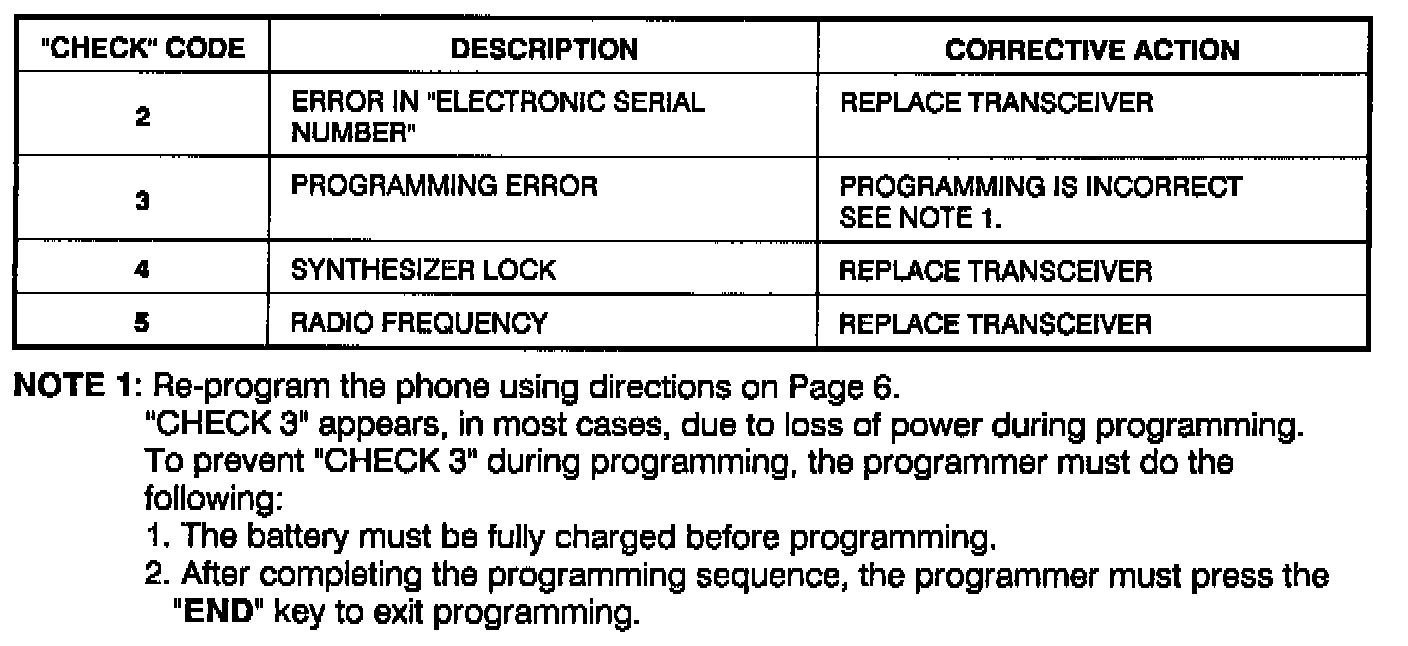

"CHECK" CODE DIAGNOSIS







Each time the cellular telephone is turned "ON", it performs a self-test. If the display shows any "CHECK" codes on its LCD display, refer to the applicable trouble condition.

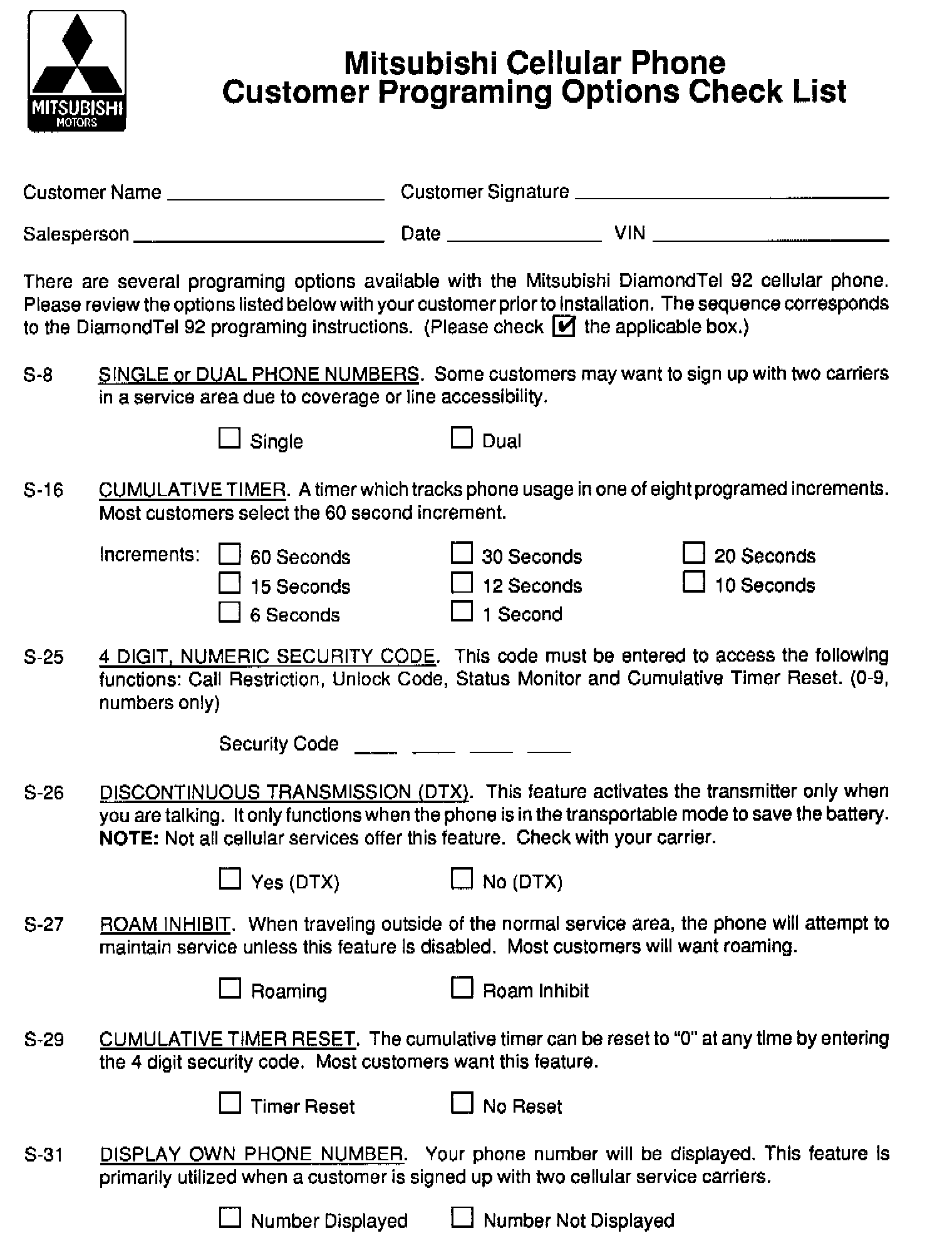

Check List
