Multi-Purpose Fuses (In Junction Block)

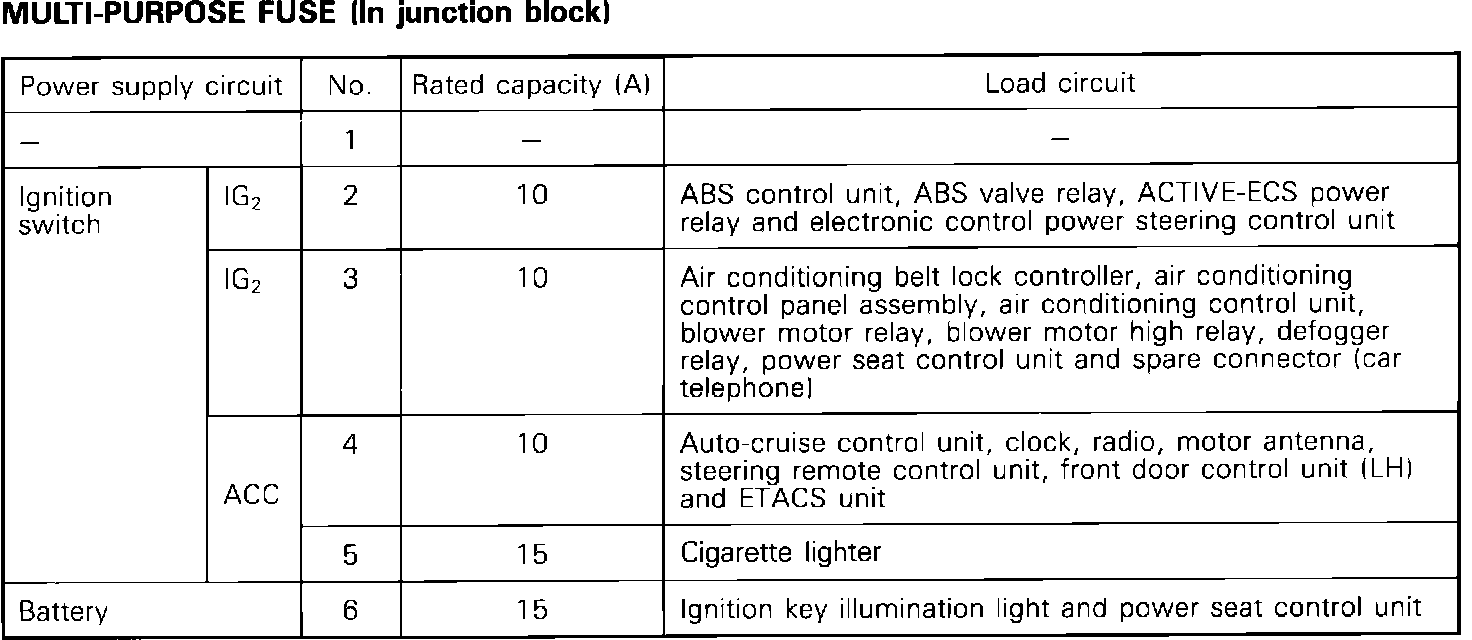

Centralized Junction: Multi-Purpose Fuse:

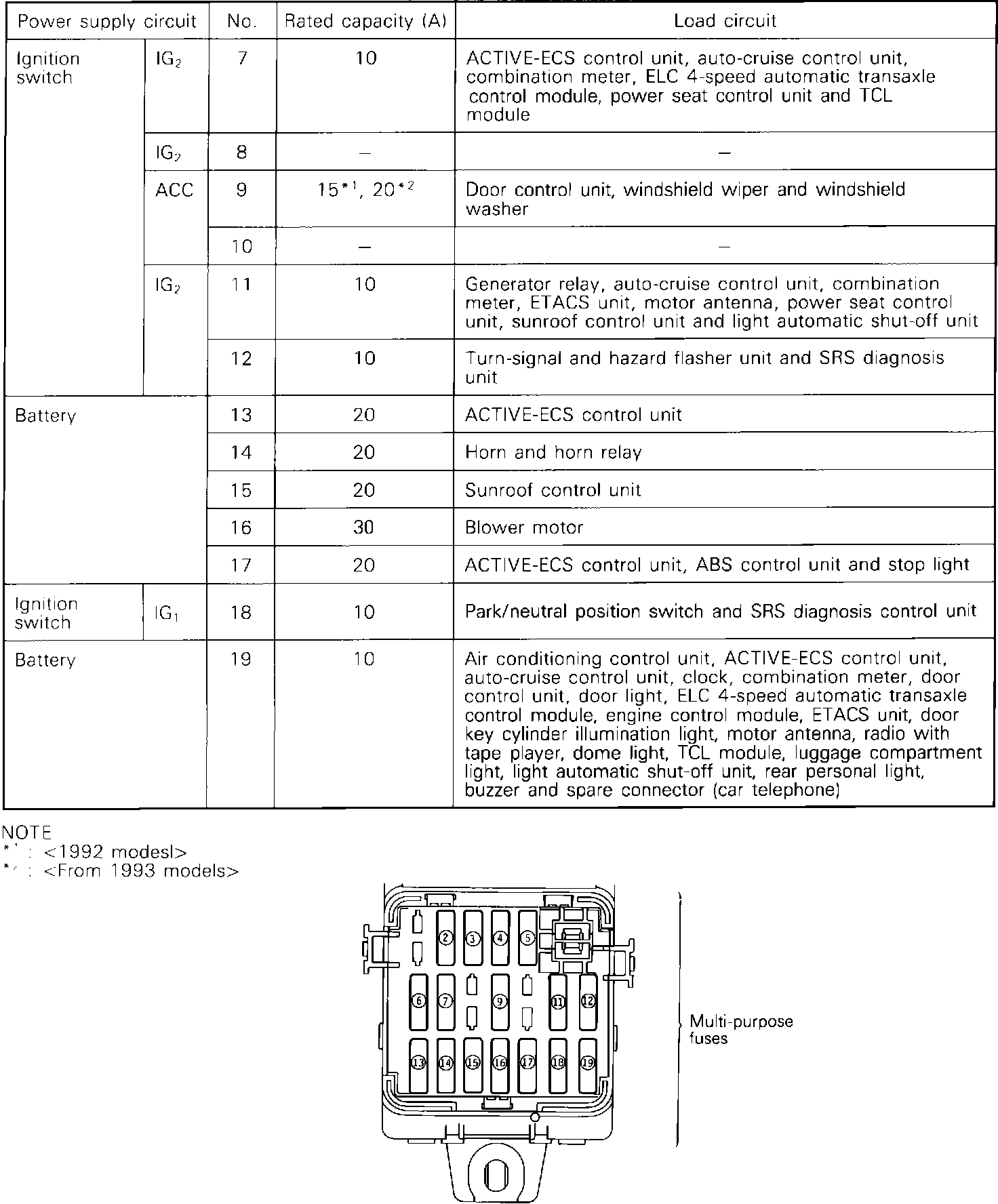

Centralized Junction: Multi-Purpose Fuse:
