Alternator Relay: Locations

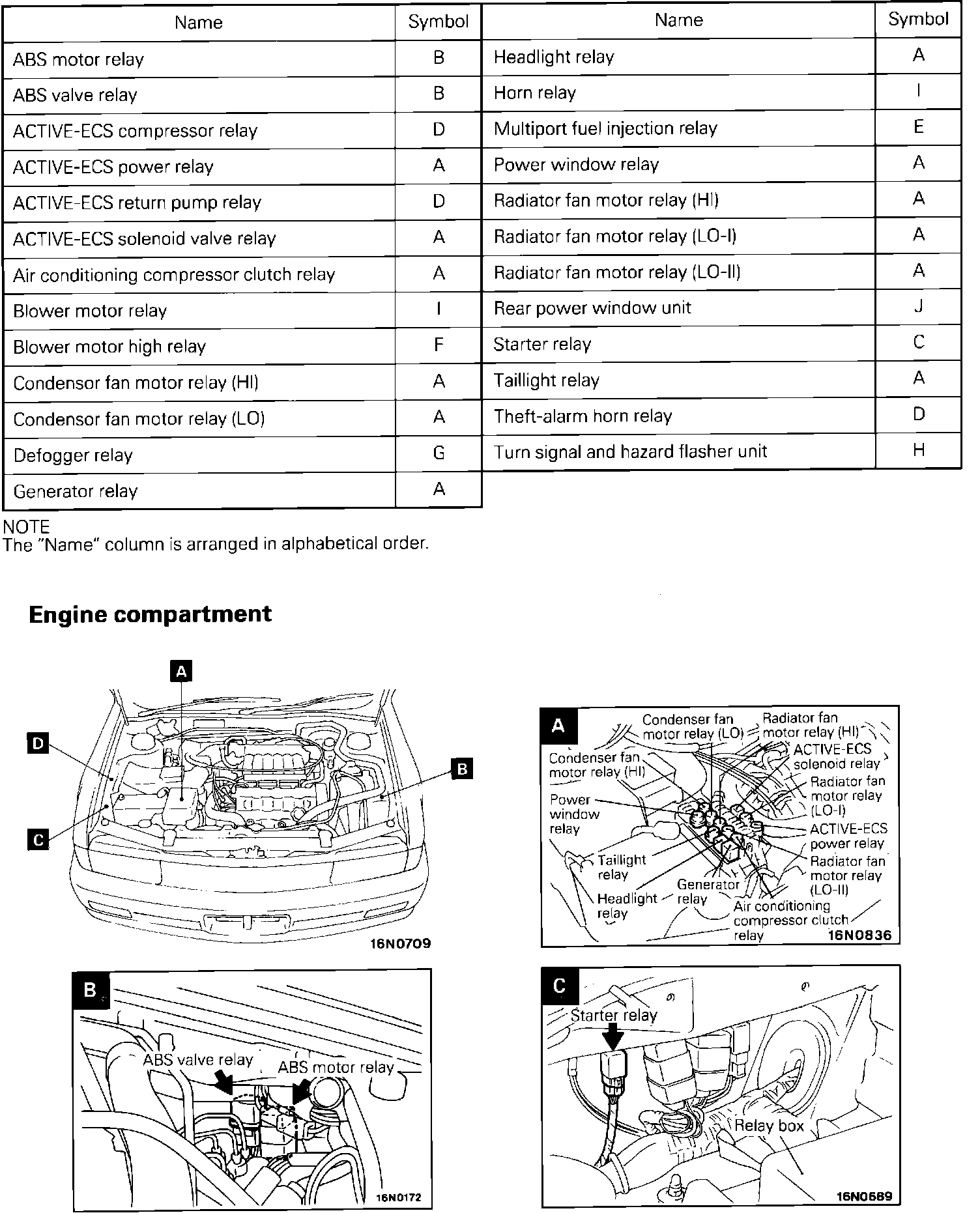

Relay Location: Engine Compartment:

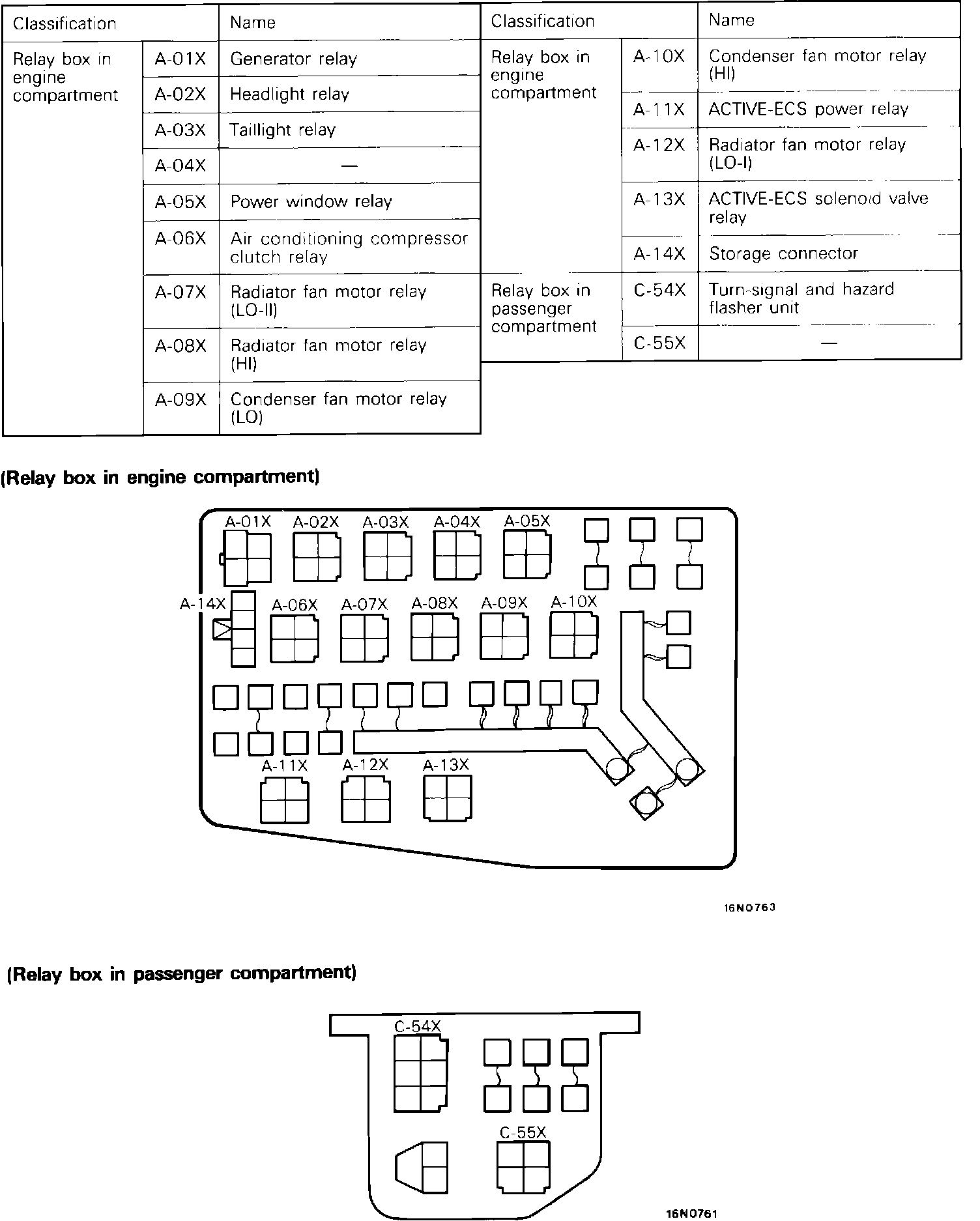

Centralized Junction: Centralized Relay:
