Canister Purge Control Valve: Locations

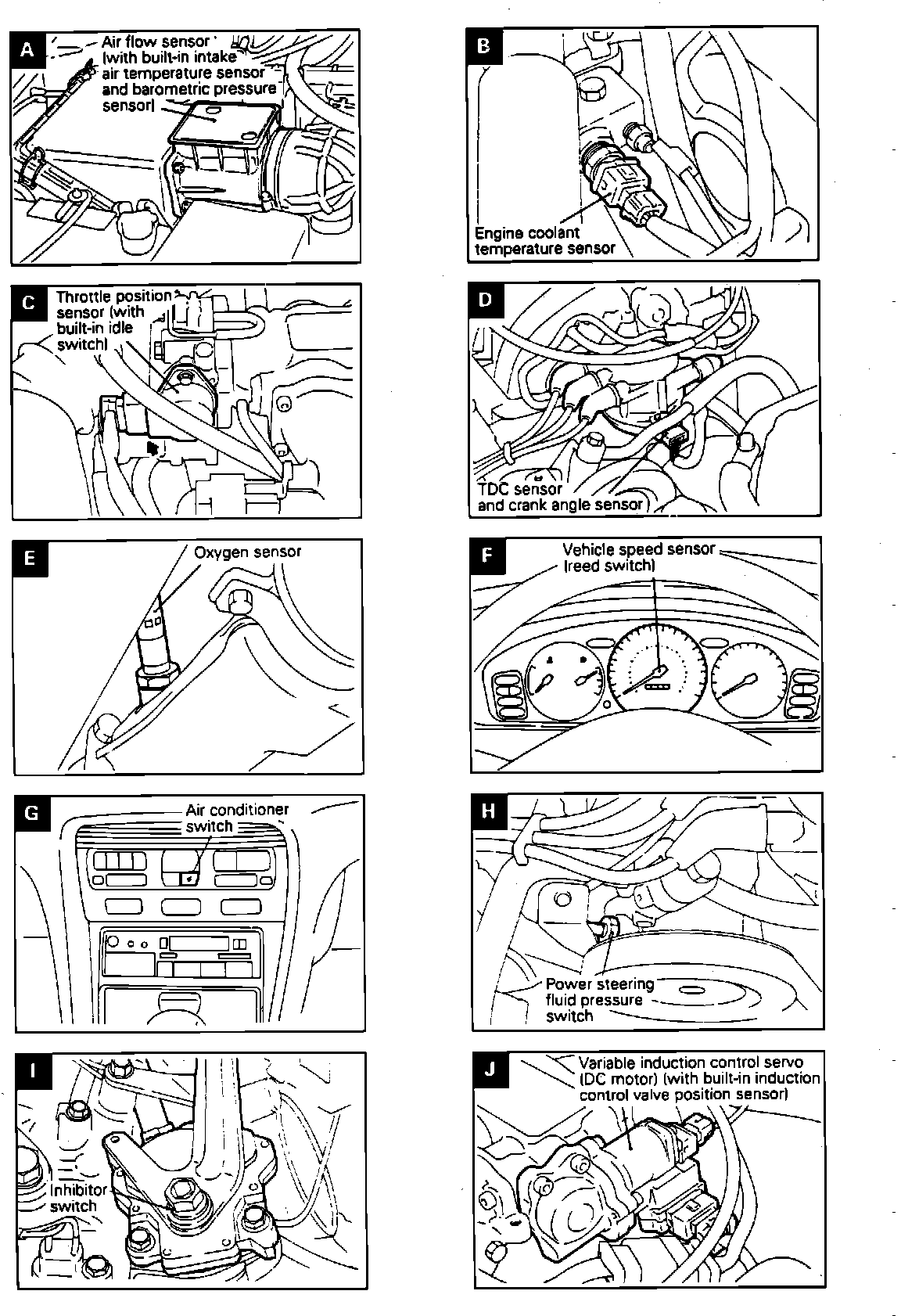

Fuel Injection Component Locations (Part 1 Of 4).:

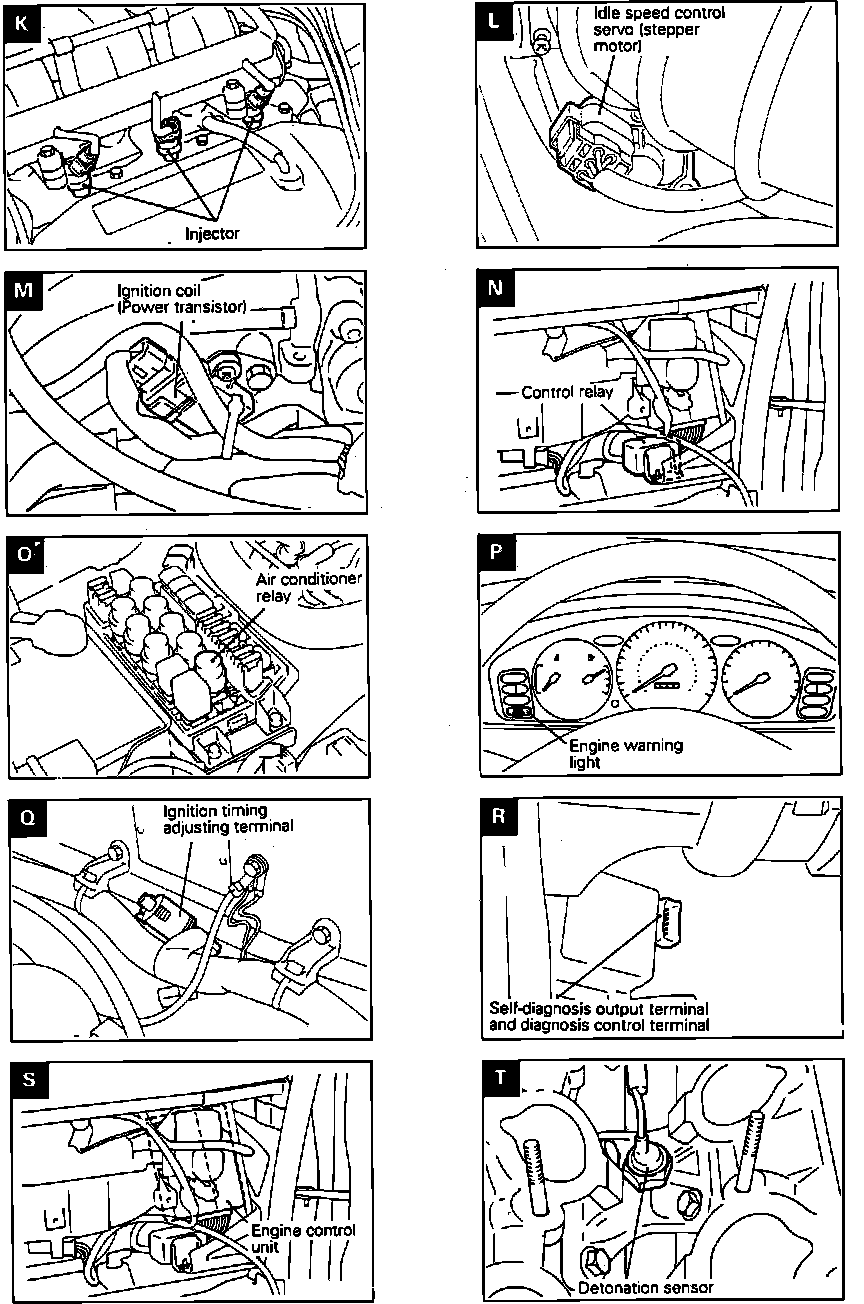

Fuel Injection Component Locations (Part 1 Of 4).:

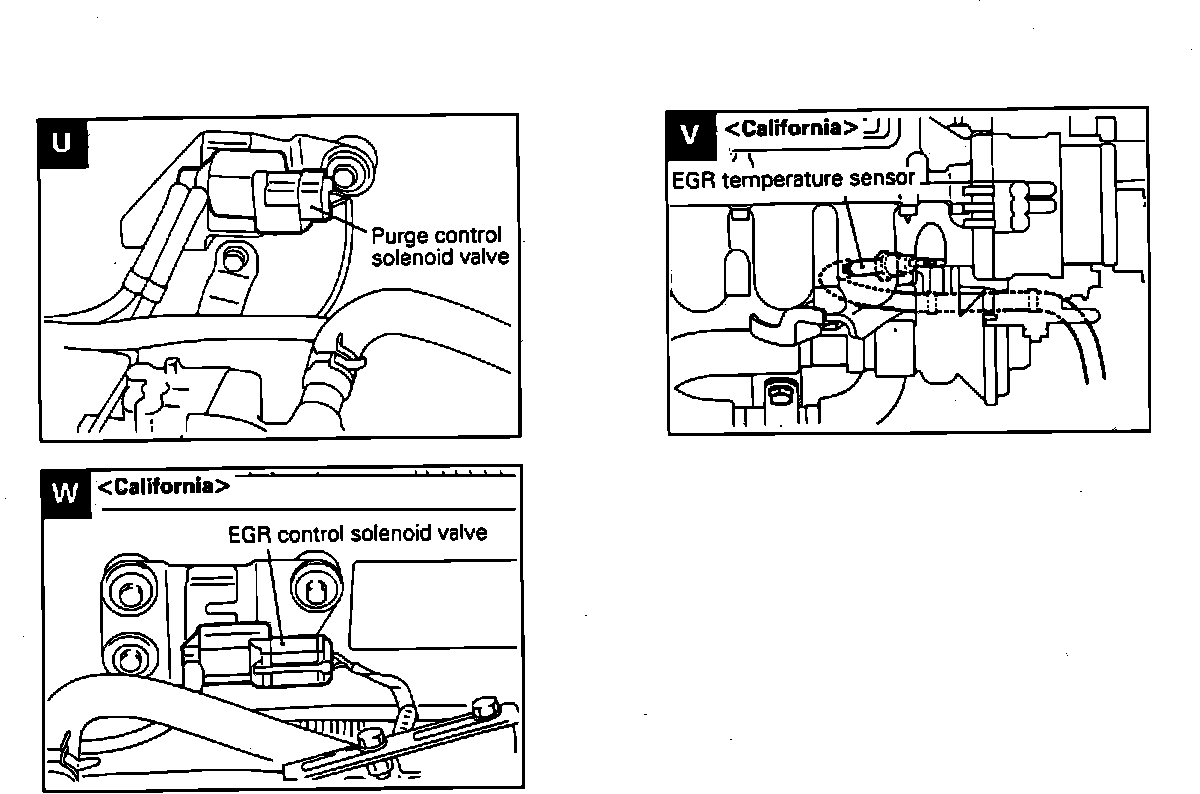

Fuel Injection Component Locations (Part 1 Of 4).:

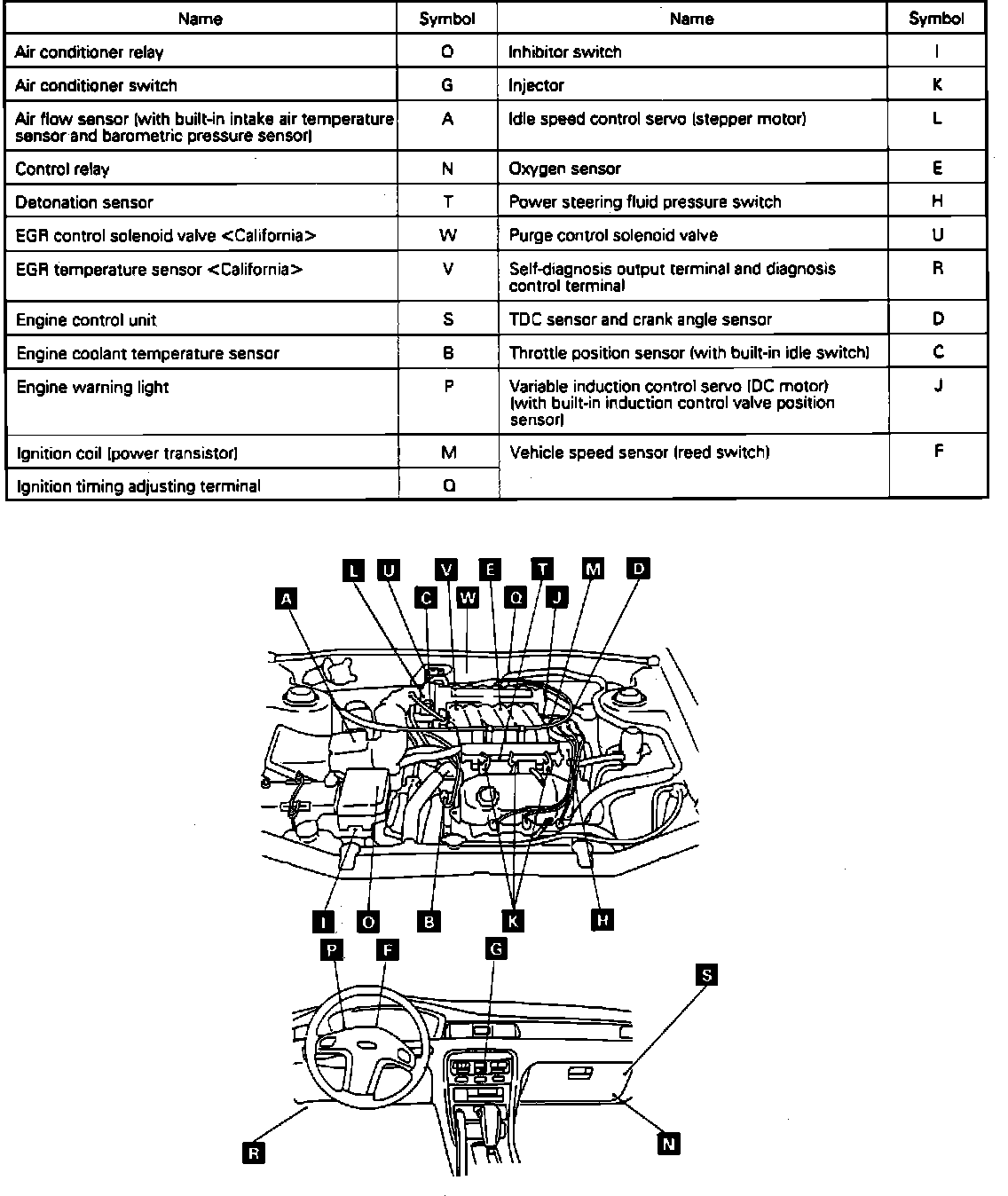

Fuel Injection Component Locations (Part 1 Of 4).:

Center Rear Of Engine Compartment

Applicable to: SOHC Engine
