Scope Patterns and Waveforms

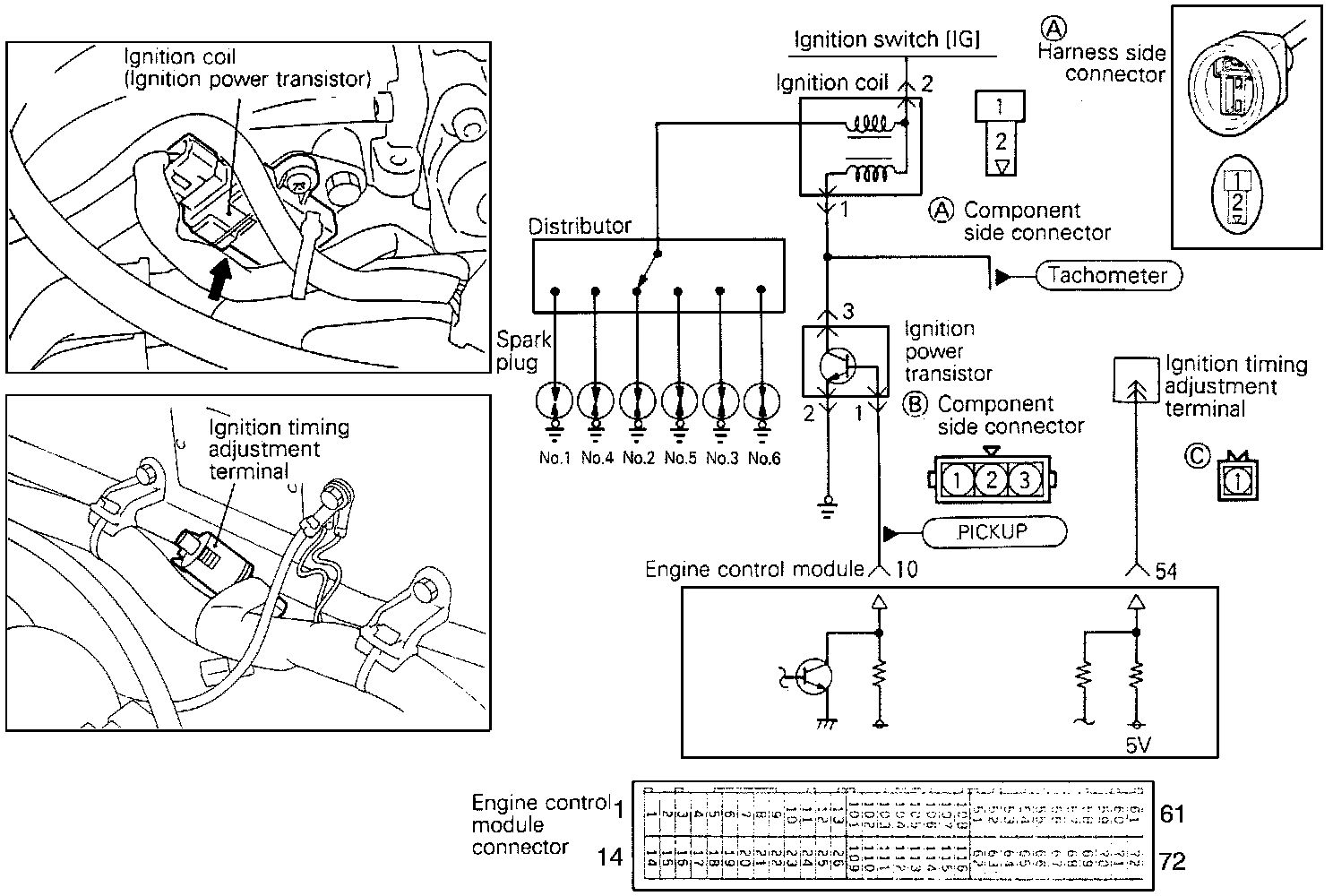

Power Transistor And Ignition Coil Circuit:






Waveform Inspection With Scope

1. Disconnect the connector of the power transistor and test harness MB991348 to all of the terminals.

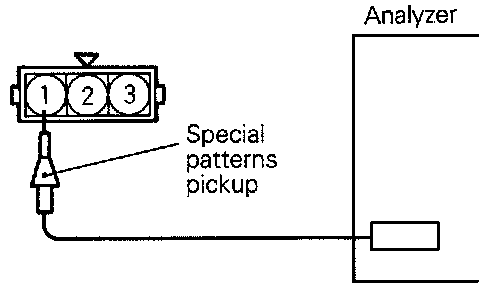

Scope Hook Up:






2. Connect the special patterns pickup of the scope to terminal #1 of the ignition power transistor connector.
3. If the test harness is not available, connect the scope special patterns pickup to ECM terminal #10 for the ignition power transistor.

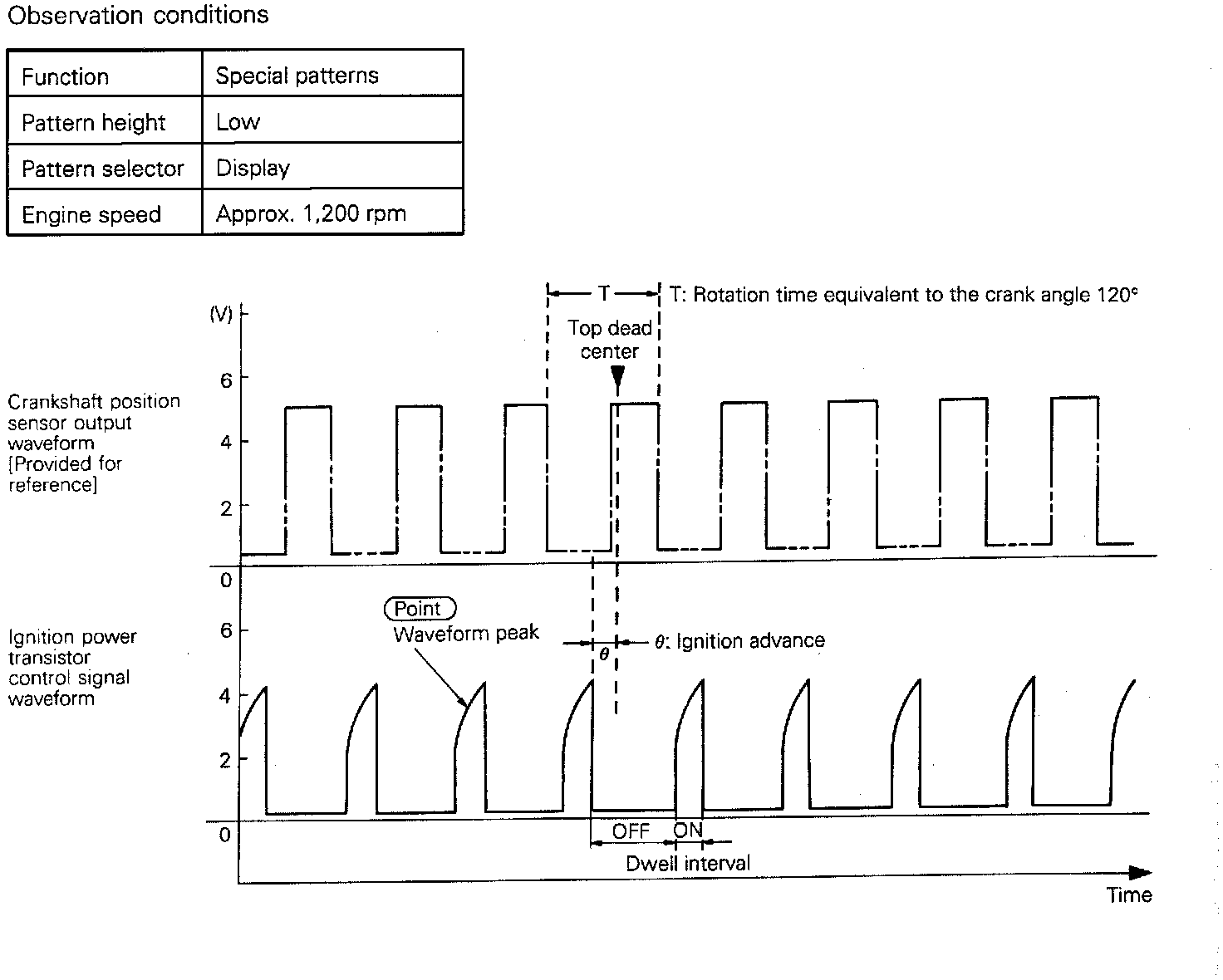

Standard Waveform:




Abnormal Waveforms:
