Power Transistor & Ignition Coil
>>

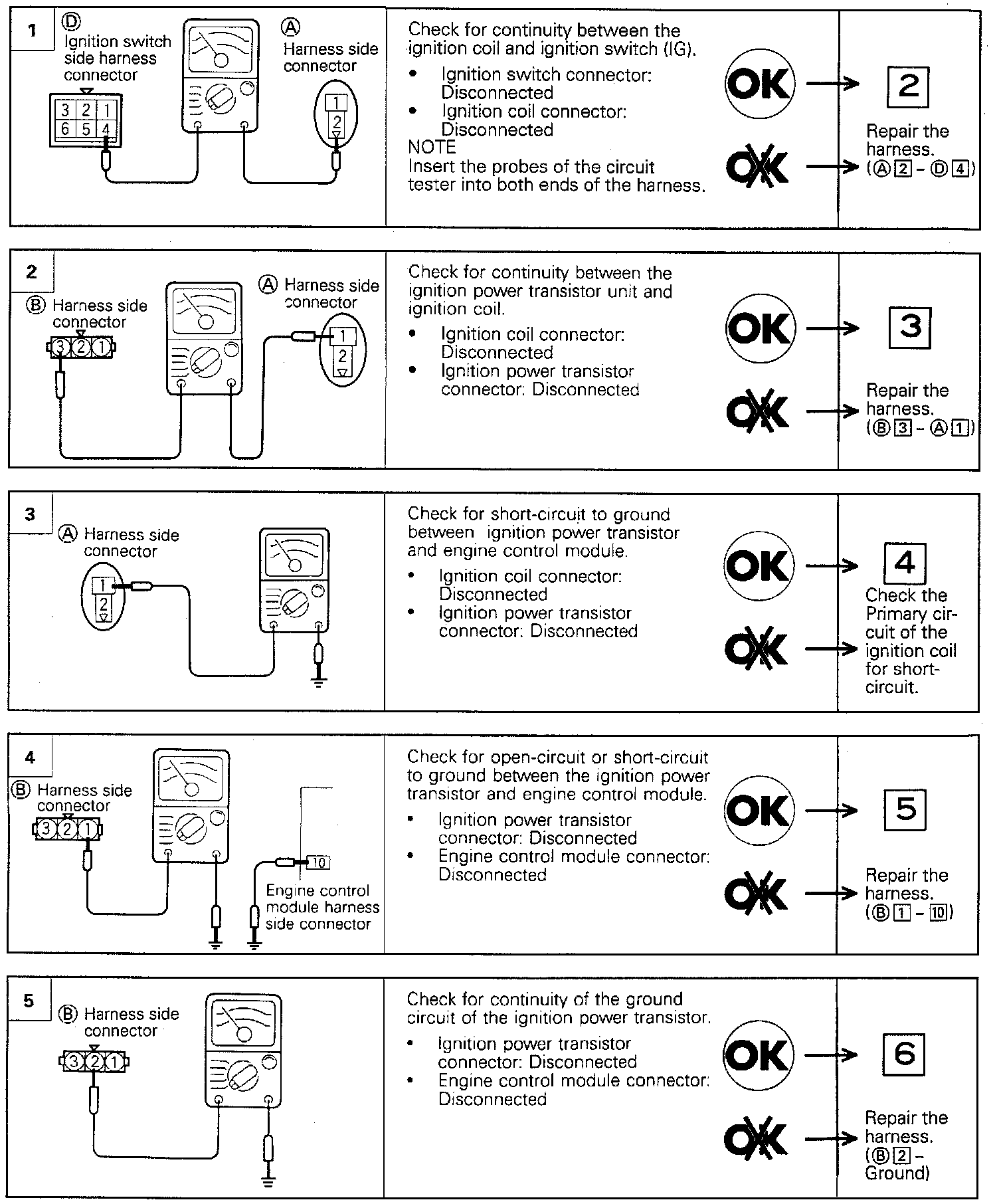

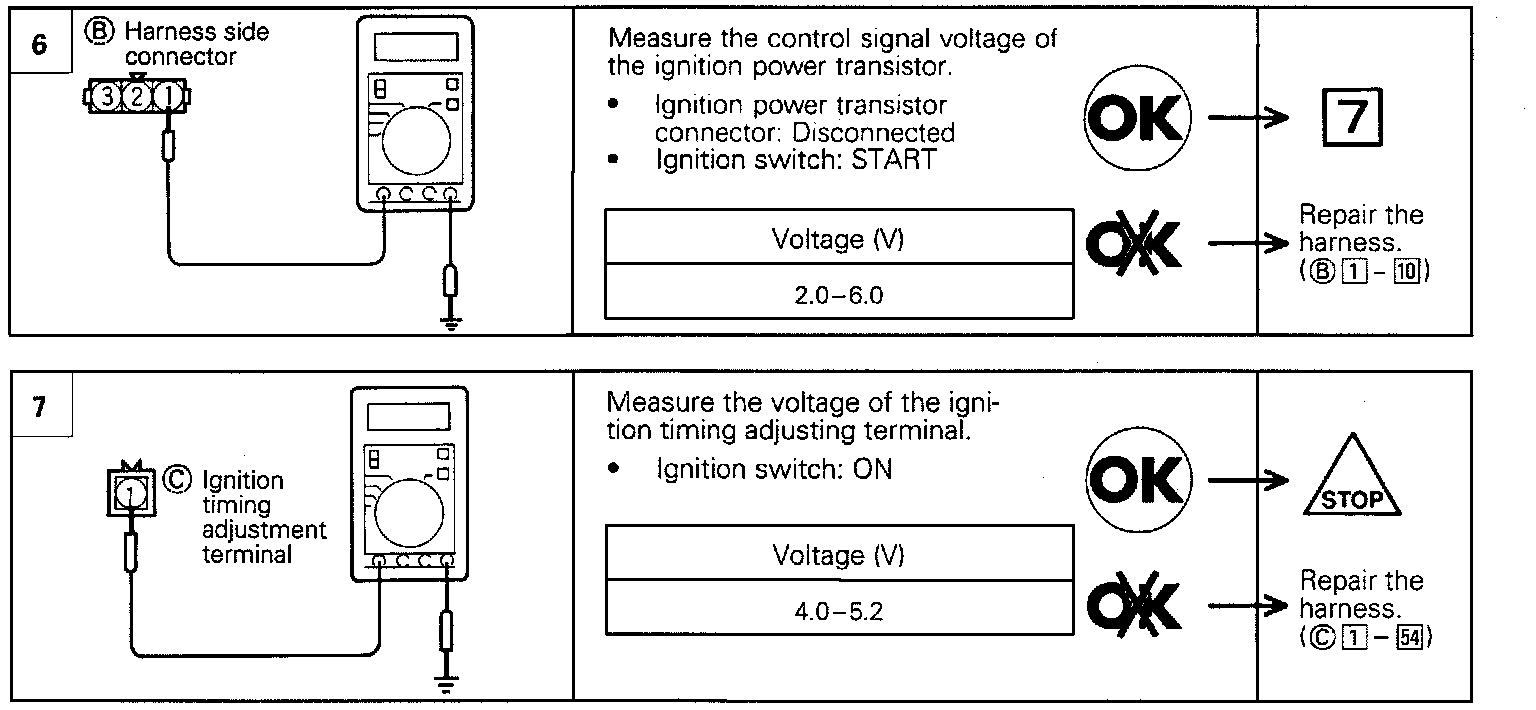

Inspection Procedure
Inspection Procedure
Harness Inspection:
Harness Inspection:
