Cooling System - Coolant Temperature Switch Renamed

NO.: TSB-92-54-005
DATE: August, 1992
MODEL: 1992 Diamante

[TSB Revision TSB-92-54-005]

SUBJECT:
ENGINE COOLANT TEMPERATURE SWITCH - SERVICE MANUAL REVISION

PURPOSE

Shown in the 1992 Diamante Volume 2 Service Manual are two switches named "ENGINE COOLANT TEMPERATURE SWITCH." One switch is located in the radiator, whereas the other switch is mounted on the engine. To avoid possible confusion, this bulletin revises the radiator mounted "Engine Coolant Temperature Switch" name to "Thermo Sensor."

Please make the indicated service manual revision and as reference to this Technical Service Bulletin, write this TSB number in the TSB Revision boxes on the affected service manual pages.

AFFECTED SERVICE MANUAL

1992 Diamante Volume 2, Pages 111, 117

SERVICE MANUAL REVISION

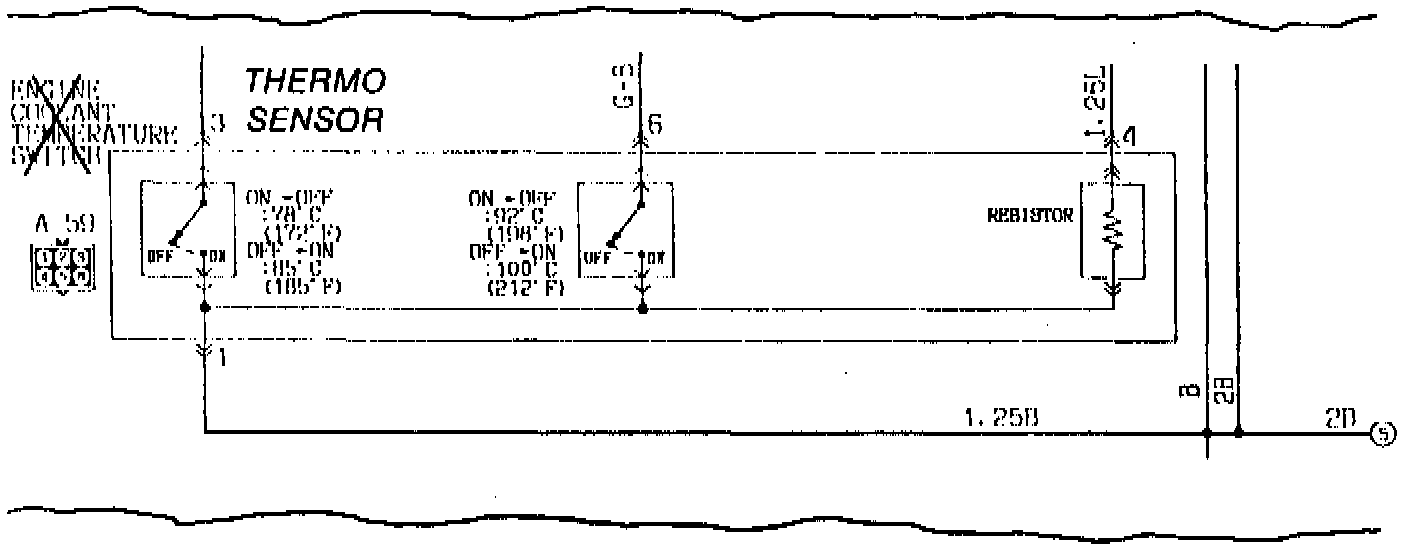

As shown, cross out "ENGINE COOLANT TEMPERATURE SWITCH" and write in "THERMO SENSOR".
